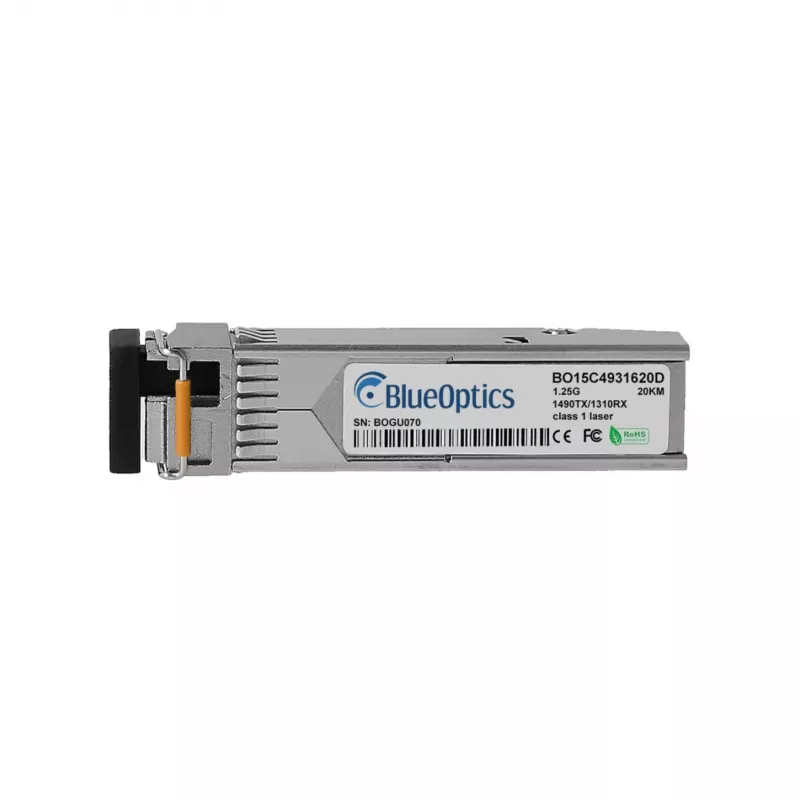

BlueOptics BO15C4931620D SFP transceiver, LC Simplex, 1000BASE-BX-D, 20 km, kompatibilný s TP-Link SFP-BXD43-20KM

The BlueOptics BO15C4931620D is a high-performance SFP transceiver designed for Gigabit Ethernet networks. It is fully compatible with TP-Link SFP-BXD43-20KM and MSA-compliant SFP ports, delivering reliable 1.25 Gbps data transmission over single-mode fiber at distances up to 20 km. This transceiver operates on a single fiber using Bi-directional technology, with transmit at 1490 nm and receive at 1310 nm. It supports Digital Diagnostics Monitoring (DDM/DOM) for real-time performance monitoring. Ideal for enterprise and service provider networks, it offers hot-pluggable convenience, low power consumption (<1.0W), and commercial temperature range (0°C to 70°C).

Advantages

Cost-effective alternative to OEM modules with full compatibility and MSA compliance. Simplex LC connector reduces fiber usage by half. DDM/DOM enables proactive network management. Hot-pluggable design simplifies installation and maintenance.

Suitable for

• Gigabit Ethernet connections in data centers, enterprise LANs, and telecom networks
• Point-to-point fiber links up to 20 km
• Upgrading or expanding existing fiber infrastructure
• Replacement or spare for TP-Link SFP-BXD43-20KM modules

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Standard: 1000BASE-BX-D
• Connector: LC Simplex
• Fiber Type: Single-Mode (OS2)
• Max Distance: 20 km
• Wavelength: Tx 1490 nm, Rx 1310 nm
• DDM/DOM: Yes
• Hot-Pluggable: Yes
• Power Consumption: <1.0 W
• Operating Temperature: 0°C to 70°C
• Compliance: MSA, RoHS, CE, FCC

Recommendations

For optimal performance, use with single-mode fiber (OS2) and ensure proper cleaning of LC connectors. This transceiver is compatible with any MSA-compliant SFP port. For distances beyond 20 km, consider higher-power modules.
