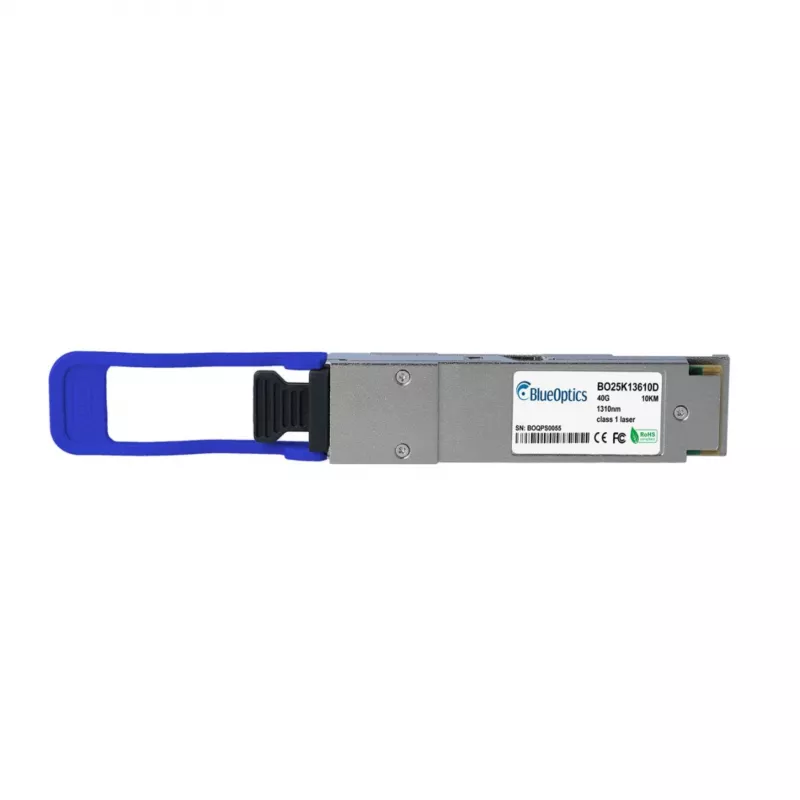

BlueOptics BO25K13610D kompatibilný Finisar FTL4C1QE2C QSFP+ transceiver, 40GBASE-LR4, LC Duplex, single-mode, 10 km

The BlueOptics BO25K13610D is a high-performance QSFP+ transceiver designed for 40 Gigabit Ethernet applications. It is fully compatible with Finisar FTL4C1QE2C and MSA-compliant QSFP+ ports, ensuring seamless integration into existing network infrastructures. This transceiver supports 40GBASE-LR4 over single-mode fiber (SMF) with a reach of up to 10 km, making it ideal for data center, enterprise networking, and telecommunications environments.

Advantages

Cost-effective alternative to OEM modules without compromising performance or reliability. Hot-pluggable design simplifies installation and maintenance. Supports Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of optical parameters. Low power consumption of less than 3.5 W reduces energy costs. RoHS compliant and CE/FCC certified for environmental and safety standards.

Suitable for

• Data center interconnects
• Enterprise network backbone
• Telecommunications infrastructure
• 40 Gigabit Ethernet uplinks

Key specifications

• Form Factor: QSFP+
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-LR4
• Max Distance: 10 km (6.2 miles)
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Duplex
• Wavelengths: 1271nm, 1291nm, 1311nm, 1331nm (LAN WDM)
• DDM/DOM Support: Yes
• Hot-Pluggable: Yes
• Power Consumption: < 3.5 W
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Compatibility: Finisar FTL4C1QE2C and MSA Compliant QSFP+ Ports
• Transmitter Type: DFB Laser
• Receiver Type: PIN Photodiode
• Compliance: MSA Compliant, RoHS Compliant, CE, FCC
• MTBF: > 500,000 hours

Recommendations

For optimal performance, use with single-mode fiber patch cables (OS2) and ensure proper cleaning of LC connectors before installation. This transceiver is a direct replacement for Finisar FTL4C1QE2C and is backed by BlueOptics' quality assurance.
