BlueOptics BO25K859S2D kompatibilný QSFP transceiver, MPO/MTP, 40GBASE-SR4, multimódové

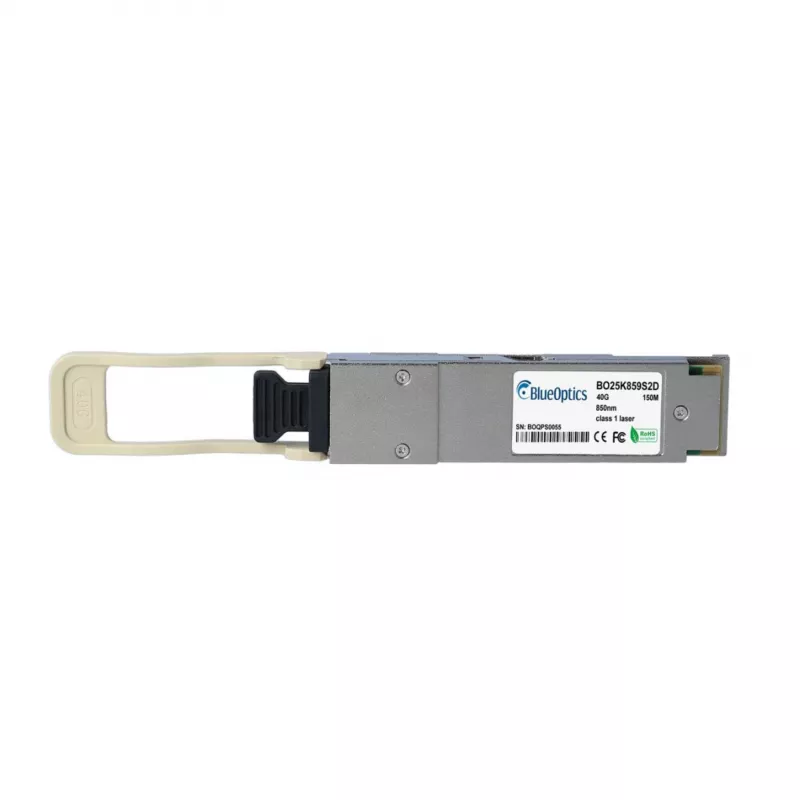

The BlueOptics BO25K859S2D is a high-performance QSFP transceiver designed for 40 Gigabit Ethernet applications. It is fully compatible with Finisar FTL410QE3C and offers reliable connectivity for data centers and high-performance computing environments. With MPO/MTP connector and multimode fiber support, this transceiver delivers efficient 40GBASE-SR4 performance over distances up to 150 meters on OM4 fiber.

Advantages

Cost-effective alternative to OEM modules without compromising performance. Hot-swappable design ensures minimal downtime during maintenance or upgrades. Digital Diagnostics Monitoring (DDM) provides real-time monitoring of operating parameters for proactive network management.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise network aggregation
• 40 Gigabit Ethernet uplinks

Key specifications

• Form Factor: QSFP
• Data Rate: 40 Gbps
• Standard: 40GBASE-SR4
• Connector Type: MPO/MTP (12-fiber)
• Fiber Type: Multimode (MMF)
• Wavelength: 850 nm
• Max Distance: 100 m (OM3), 150 m (OM4)
• Power Consumption: < 1.5 W
• Operating Temperature: 0°C to 70°C
• Compliance: MSA, RoHS, CE, FCC

Recommendations

For optimal performance, use with OM4 multimode fiber and MPO/MTP patch cables. Ensure proper handling to avoid damage to the optical connectors.
