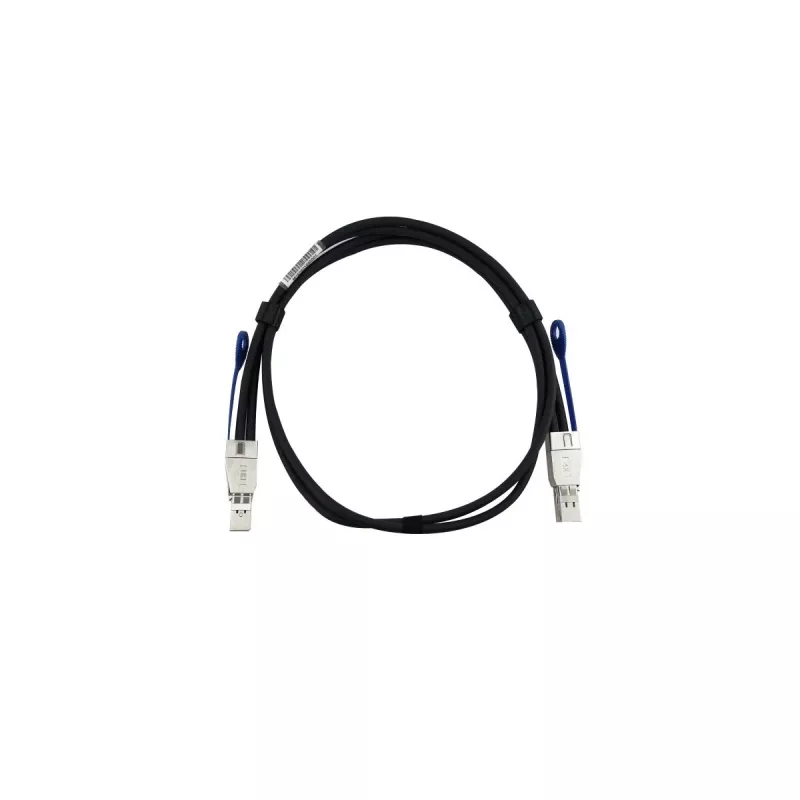

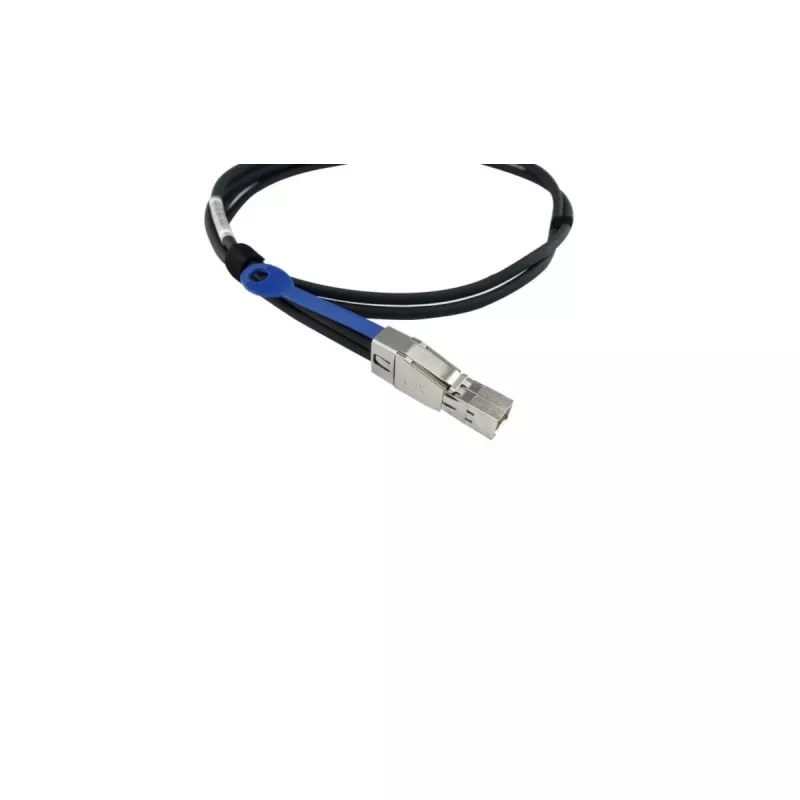

BlueOptics CABLE MINISASHD_EXT1 kompatibilný BlueLAN Mini SAS HD externý kábel 1 meter

The BlueOptics CABLE MINISASHD_EXT1 is a high-performance Mini SAS HD external cable designed for reliable data transmission in enterprise storage environments. This 1-meter cable is fully compatible with BlueLAN systems and supports SAS 3.0 (12 Gbps per lane) for high-speed connectivity between external storage enclosures, HBAs, RAID controllers, and JBODs.

Advantages

Engineered with premium materials, this cable ensures signal integrity and durability. The foil and braid shielding minimizes electromagnetic interference, while the robust PVC jacket protects against physical wear. Hot-plug support allows for easy installation and maintenance without system downtime.

Suitable for

• External storage enclosures and JBODs
• Host Bus Adapters (HBAs) and RAID controllers
• BlueLAN compatible SAS/SATA devices
• Data centers and server rooms requiring high-speed external connections

Key specifications

• Cable Type: Mini SAS HD External
• Connector Type: SFF-8644 (Mini SAS HD External) to SFF-8644
• Length: 1 Meter
• Data Transfer Rate: Up to 12 Gbps per lane (SAS 3.0)
• Number of Lanes: 4
• Protocol: Serial Attached SCSI (SAS)
• Backward Compatibility: SAS 2.0 (6 Gbps), SAS 1.0 (3 Gbps)
• Impedance: 100 Ohm
• Conductor Material: Copper
• Jacket Material: PVC
• Color: Black
• Shielding: Foil and Braid Shielded
• Hot-Plug Support: Yes
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -20°C to 80°C
• Certifications: RoHS Compliant

Recommendations

For optimal performance, use this cable with compatible BlueLAN SAS controllers and ensure proper cable management to avoid bending beyond the minimum bend radius. Ideal for high-availability storage networks requiring reliable external connections.
