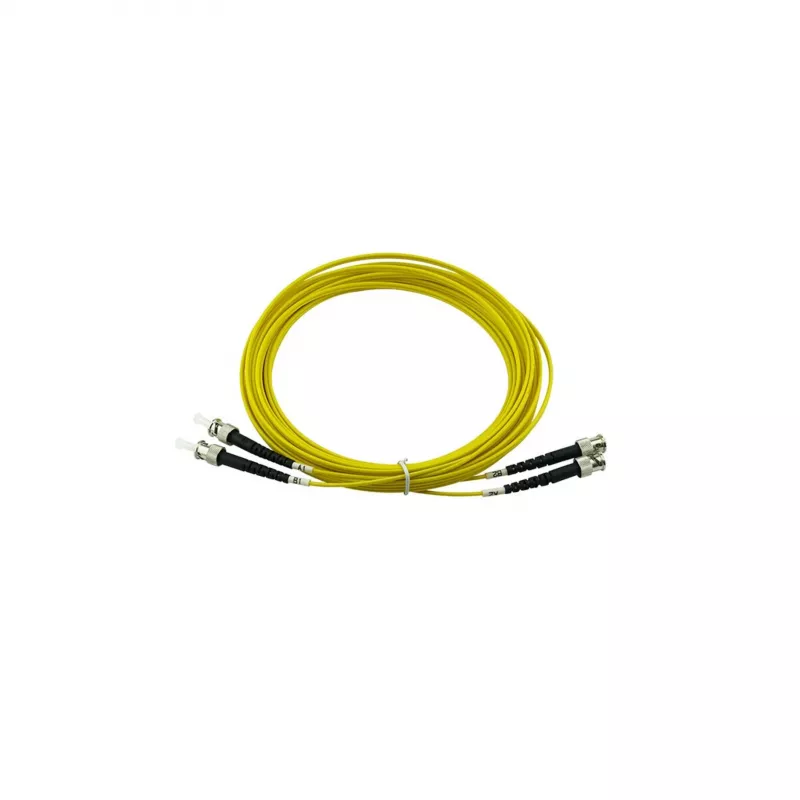

BlueOptics Duplex optický patch kábel ST-ST Singlemode 20 metrov G.657.A1 lime

The BlueOptics Duplex Fiber Optic Patch Cable ST-ST Singlemode 20 Meter is a high-performance, bend-insensitive fiber optic cable designed for reliable data transmission in indoor environments. With a length of 20 meters and a lime-colored LSZH jacket, this cable is ideal for network installations requiring low smoke and halogen-free materials.

Advantages

This cable offers low insertion loss (≤0.3 dB) and high return loss (≥50 dB), ensuring excellent signal integrity. The G.657.A1 fiber standard provides bend-insensitivity, making installation easier in tight spaces. The duplex ST connectors allow for simultaneous bidirectional communication.

Suitable for

• Data center connections
• Telecommunications networks
• Local area networks (LAN)
• Fiber-to-the-desk (FTTD) applications

Key specifications

• Cable Type: Duplex Fiber Optic Patch Cable
• Fiber Mode: Singlemode (SM)
• Fiber Standard: G.657.A1 (Bend-Insensitive)
• Connector Type A: ST
• Connector Type B: ST
• Cable Length: 20 Meter
• Jacket Color: Lime
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Core/Cladding Diameter: 9/125 µm
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 50 dB
• Operating Wavelengths: 1310nm, 1550nm
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -20°C to 70°C
• Ferrule Material: Ceramic
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with compatible ST transceivers and ensure proper handling to avoid damage. This cable is suitable for indoor use only.
