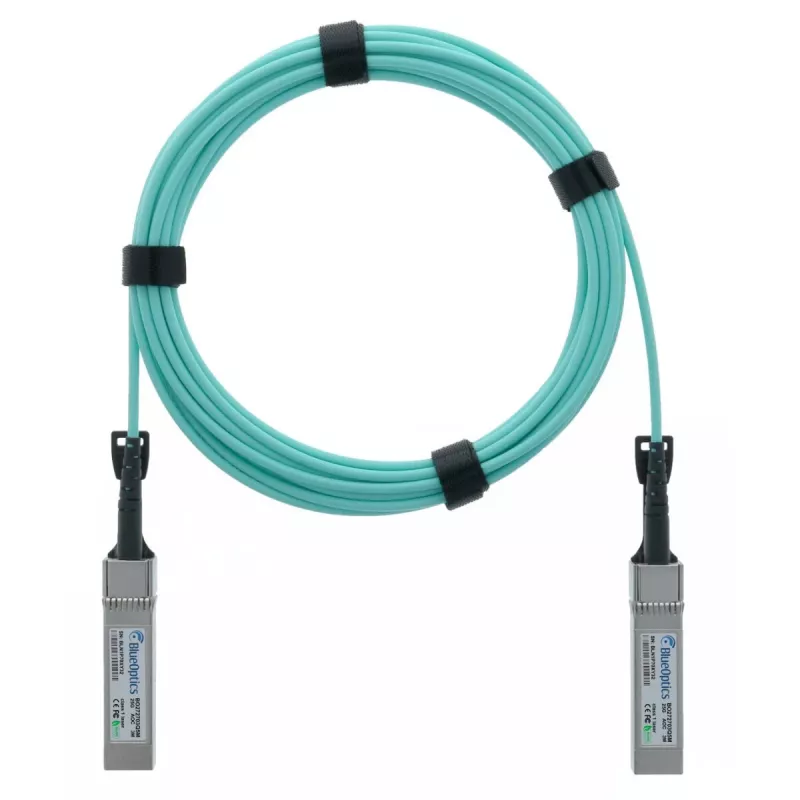

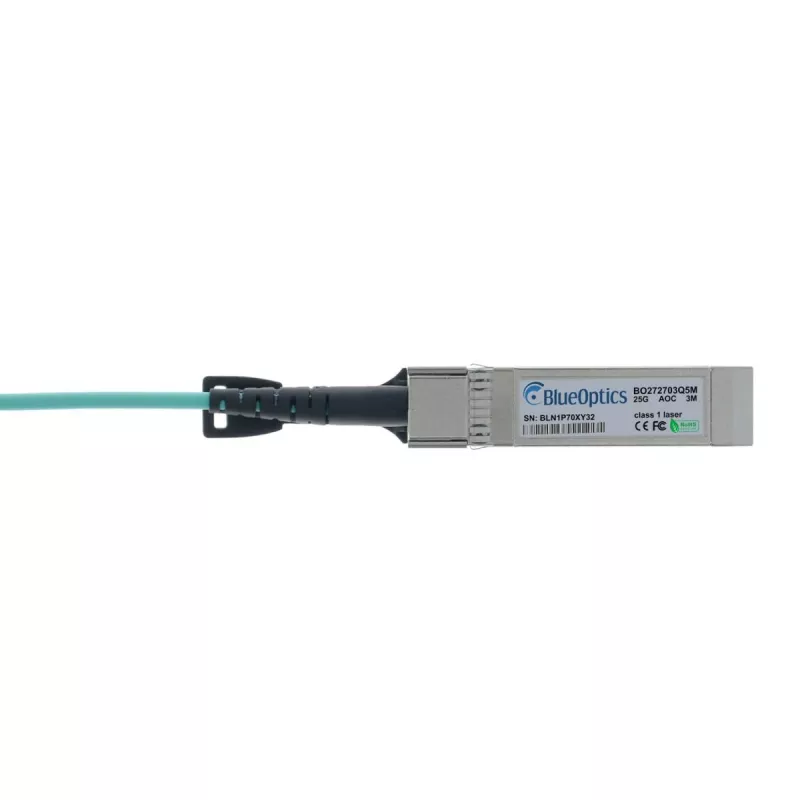

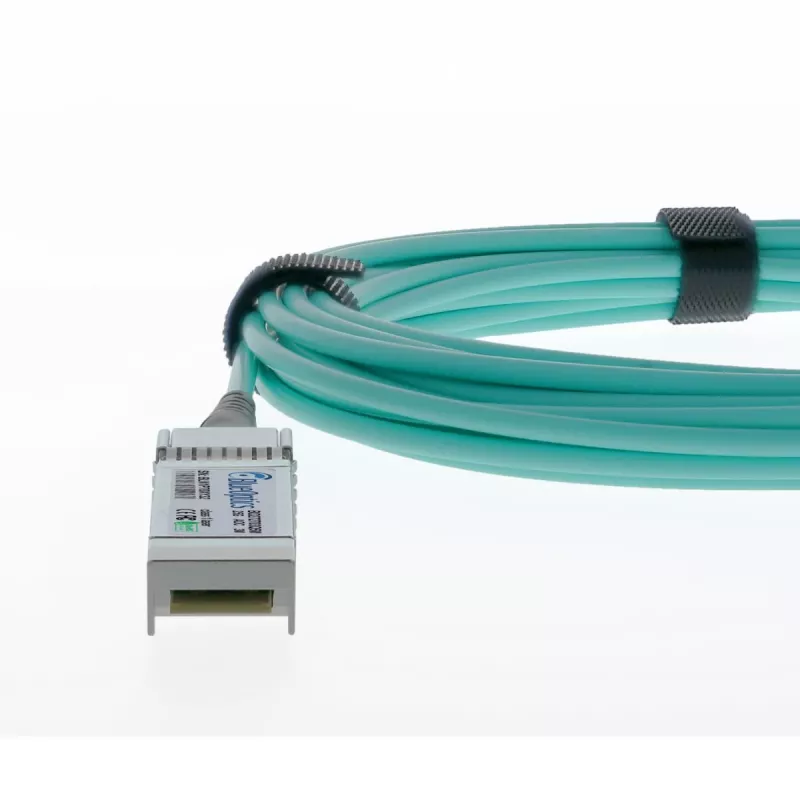

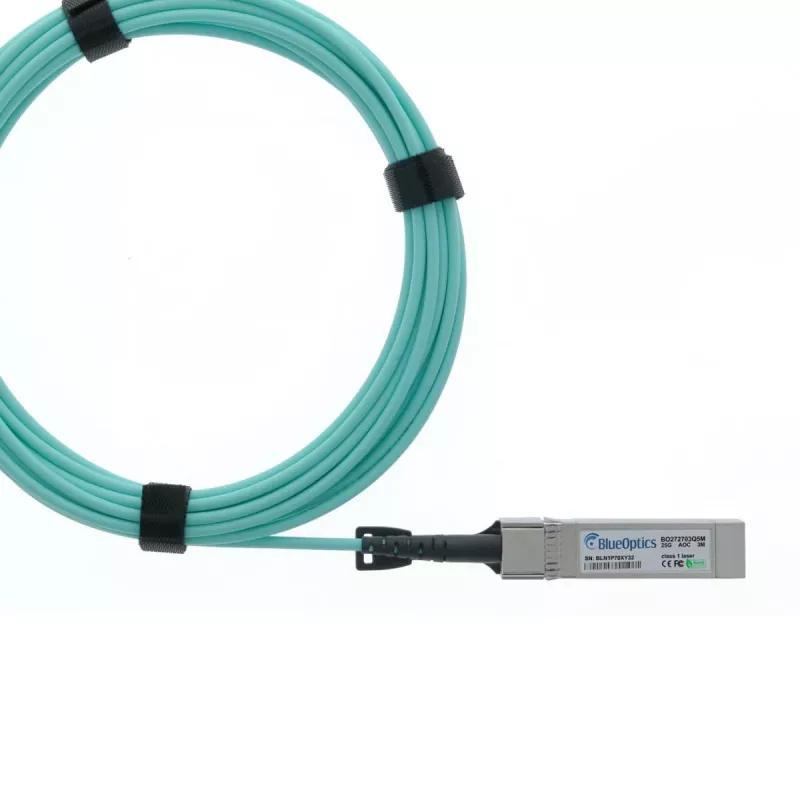

BlueOptics E25G-SFP28-AOC-2501 kompatibilný aktívny optický kábel SFP28 25G 25m

The BlueOptics E25G-SFP28-AOC-2501 is a high-performance Active Optical Cable (AOC) designed for 25 Gigabit Ethernet applications. It provides a reliable and cost-effective solution for short-range data center and enterprise network interconnects, offering low power consumption and high bandwidth over multimode fiber.

Advantages

This AOC integrates optical transceivers and a fixed cable, eliminating the need for separate connectors and reducing installation complexity. It supports hot-swappable SFP28 interfaces, ensuring minimal downtime during maintenance or upgrades. The cable is compliant with SFP28 MSA and IEEE 802.3by standards, guaranteeing interoperability with compatible equipment.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise network backbone links
• 25GbE switch to server connections

Key specifications

• Product Type: Active Optical Cable (AOC)
• Connector Type: SFP28 to SFP28
• Data Rate: 25 Gbps
• Cable Length: 25 meters
• Fiber Type: Multimode Fiber (MMF)
• Wavelength: 850 nm
• Power Consumption: < 1.0 W per end
• Hot-Swappable: Yes
• Voltage: 3.3 V
• Protocol Support: 25 Gigabit Ethernet (25GbE)
• Standards Compliance: SFP28 MSA Compliant, IEEE 802.3by (25GBASE-SR)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure that both ends of the cable are connected to SFP28-compatible ports. This AOC is ideal for high-speed, short-distance links within racks or between adjacent racks in data centers.
