BlueOptics E25G-SFP28-TWX-P-0501 kompatibilný BlueLAN DAC SFP28 0,5m

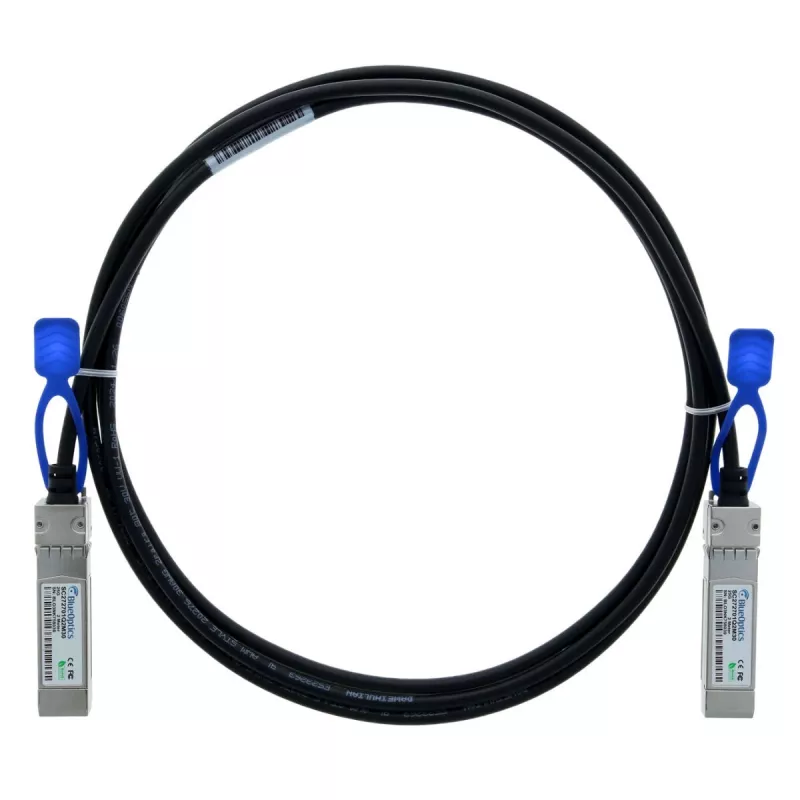

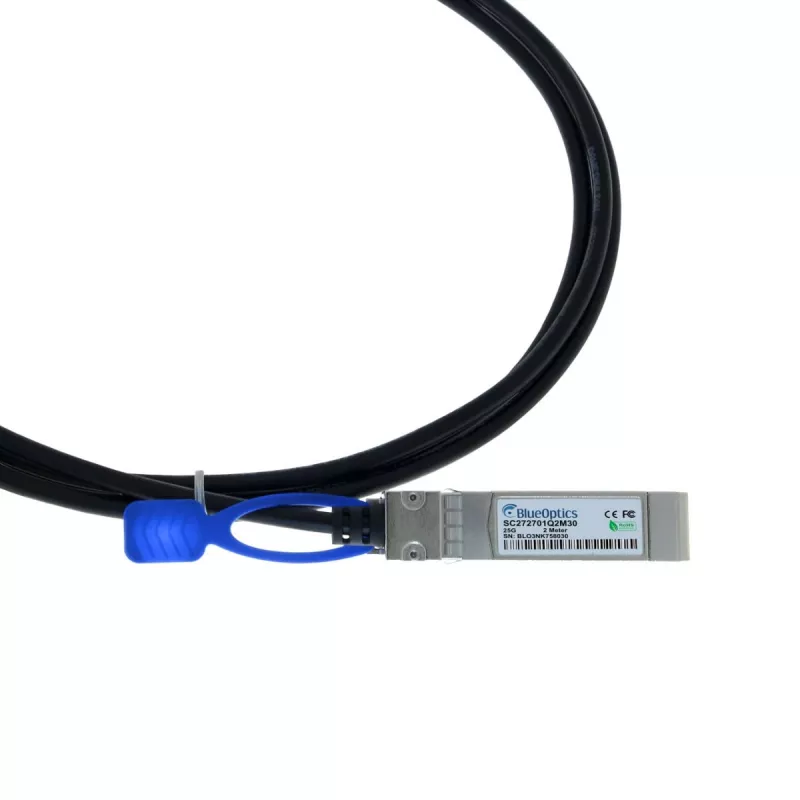

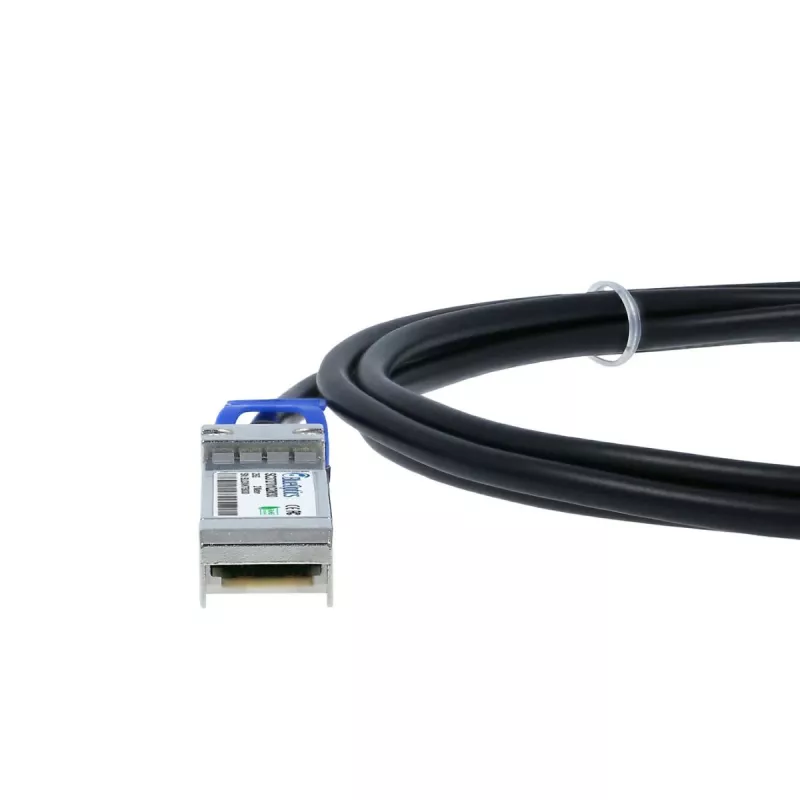

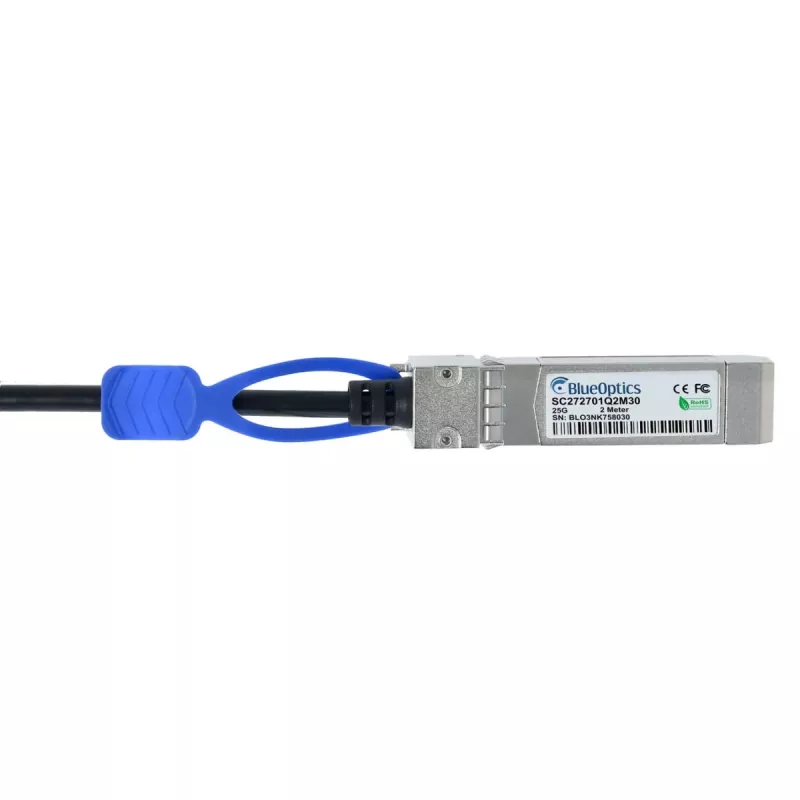

The BlueOptics E25G-SFP28-TWX-P-0501 is a high-performance, passive Direct Attach Cable (DAC) designed for 25 Gigabit Ethernet networks. This SFP28 to SFP28 twinax copper cable provides a cost-effective and low-latency interconnect solution for data centers, high-performance computing, and network storage applications. With a length of 0.5 meters, it is ideal for short-range connections within racks.

Advantages

This DAC cable offers ultra-low latency and minimal power consumption (<0.1W), making it an energy-efficient choice for high-speed networking. It is hot-pluggable and fully compliant with MSA standards, ensuring seamless integration with BlueLAN and other compatible equipment. The passive design requires no external power, reducing complexity and cost.

Suitable for

• Data center interconnects
• High-performance computing clusters
• Network storage systems
• 25GBASE-CR applications

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Form Factor: SFP28
• Data Rate: 25 Gbps
• Cable Type: Twinax Copper
• Active/Passive: Passive
• Cable Length: 0.5 meters
• Connector Type: SFP28 to SFP28
• Compatibility: BlueLAN, MSA Compliant
• AWG: 30AWG
• Impedance: 100 Ohm
• Hot-Pluggable: Yes
• Power Consumption: < 0.1W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Certifications: CE, FCC, RoHS
• Jacket Material: PVC

Recommendations

For optimal performance, use this cable with compatible SFP28 ports on switches, routers, and servers. Ensure proper handling to avoid damage to the connectors. This cable is not recommended for distances exceeding 0.5 meters.
