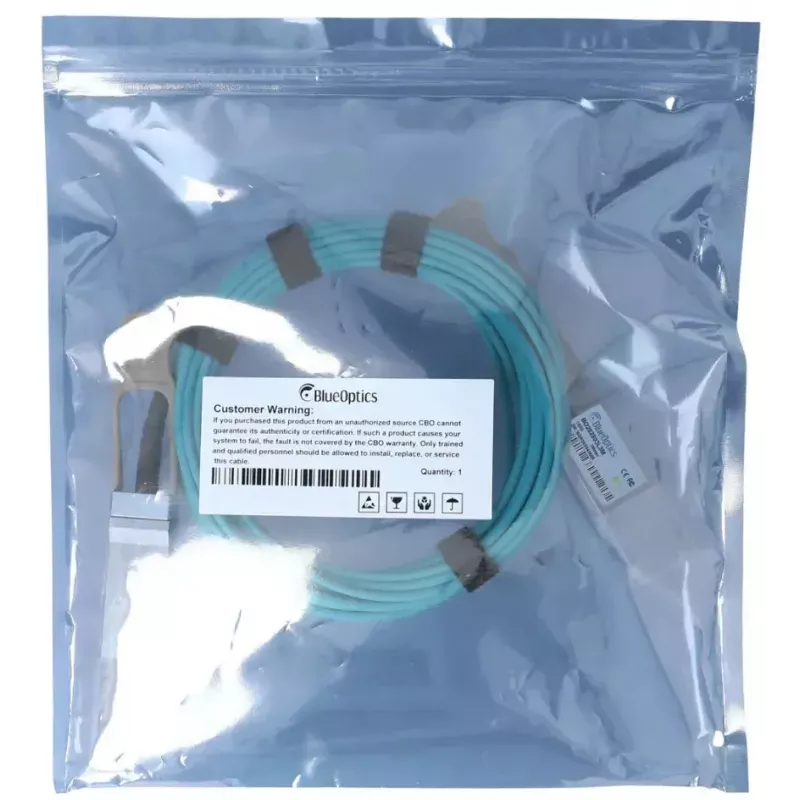

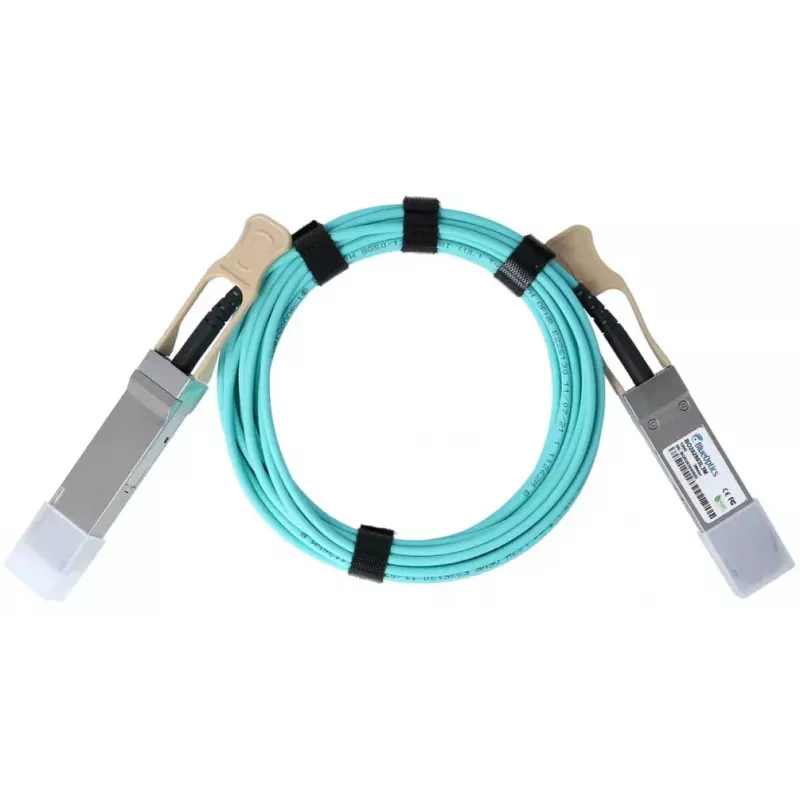

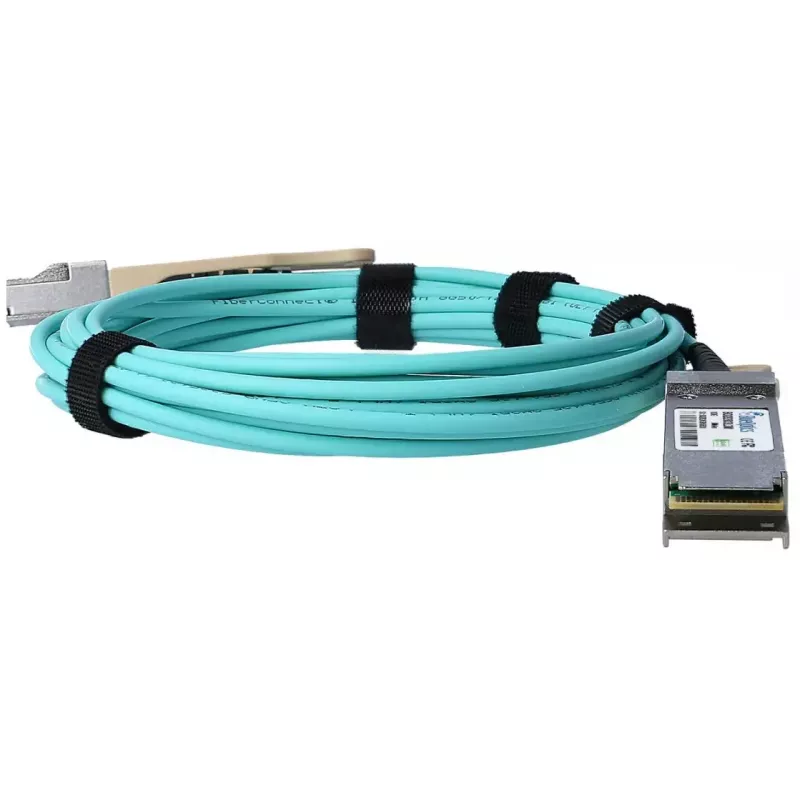

BlueOptics EQPC40A0100C0100-BO InfiniBand optický kábel 10m QSFP aqua

The BlueOptics EQPC40A0100C0100-BO InfiniBand Fibre Optic Cable 10m QSFP Aqua is a 10-metre active optical cable (AOC) with QSFP connectors on both ends designed for high-speed 40G data transmission over multimode fibre. Compliant with MSA QSFP and 40GBASE-SR4 specifications, this cable integrates transmitter and receiver modules to deliver simultaneous send/receive optical signals and is intended for use in data centre and enterprise networking environments where reliable short-reach high-bandwidth links are required.

Advantages

This BlueOptics 10m QSFP AOC offers a pre-terminated, plug-and-play connection that eliminates the need for separate transceivers and fibre patching, reducing installation time and potential signal loss. The cable supports digital diagnostics (DDM/DOM) for real-time monitoring of parameters such as supply voltage, laser bias current, transmit/receive power and temperature. Manufactured according to industry MSA standards and using high-quality components, the AOC is designed for extended operational life and stable performance in switch, router and storage interconnects.

Suitable for

Key specifications

How to use

Install the BlueOptics 10m QSFP AOC by inserting each QSFP end into matching QSFP ports on the networking devices while both devices are powered according to manufacturer recommendations. The cable is pre-assembled and requires no fibre polishing or patching; ensure connectors are aligned and seated until the latch engages. If your hardware supports DDM/DOM, monitor diagnostic values through the host interface or management software to verify link health and troubleshoot if necessary.

Recommendations

Use this cable for short-reach 40G links within racks or between adjacent racks. Verify device compatibility with QSFP-based 40GBASE-SR4 or InfiniBand QSFP interfaces before installation. Avoid tight bends and mechanical stress on the cable; maintain the manufacturer’s minimum bend radius and route the cable away from sharp edges and high-heat areas to preserve optical performance and lifetime.
