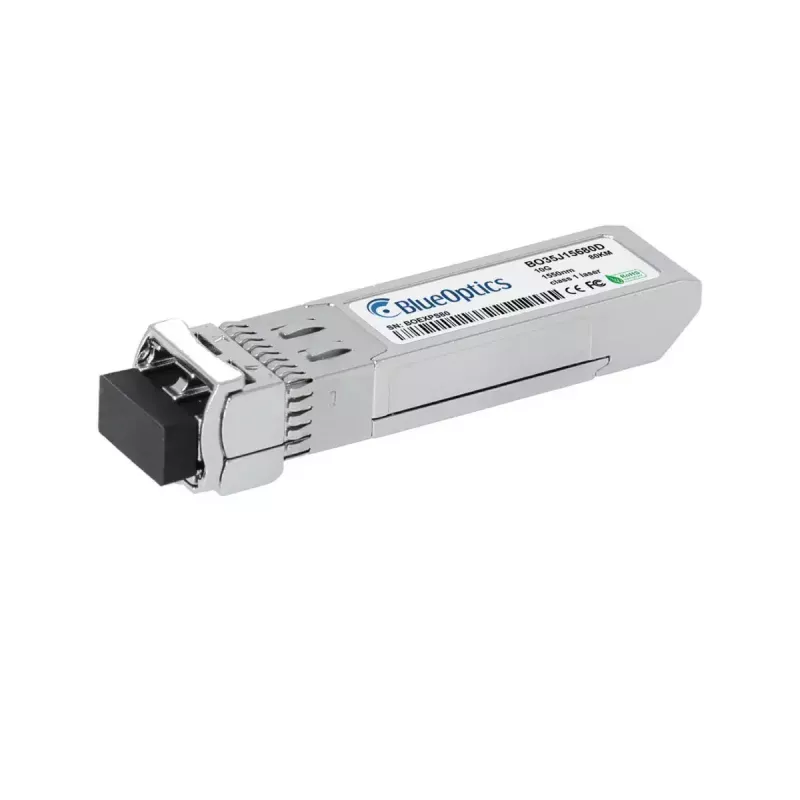

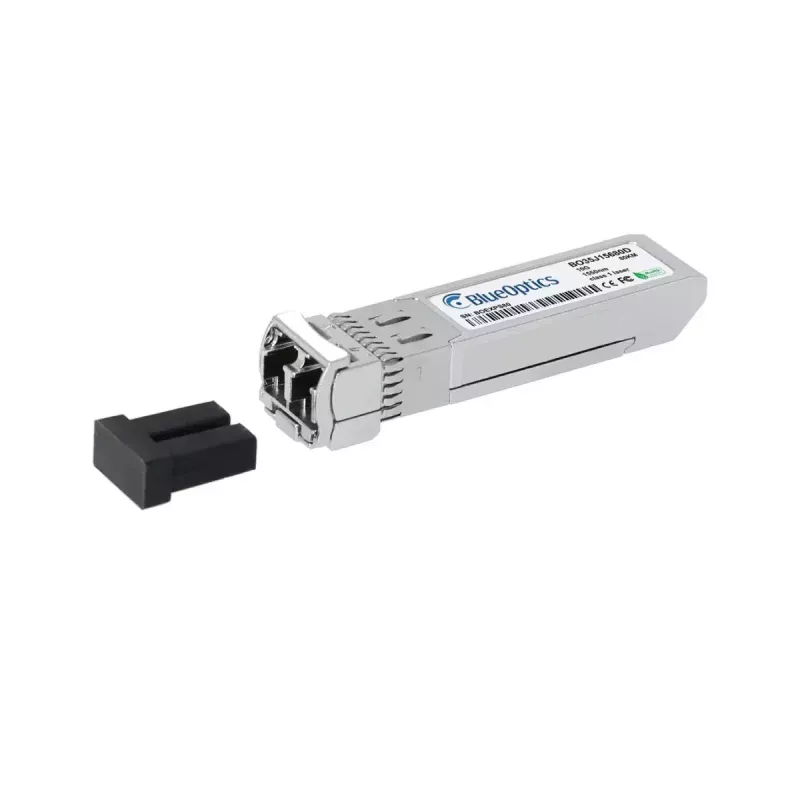

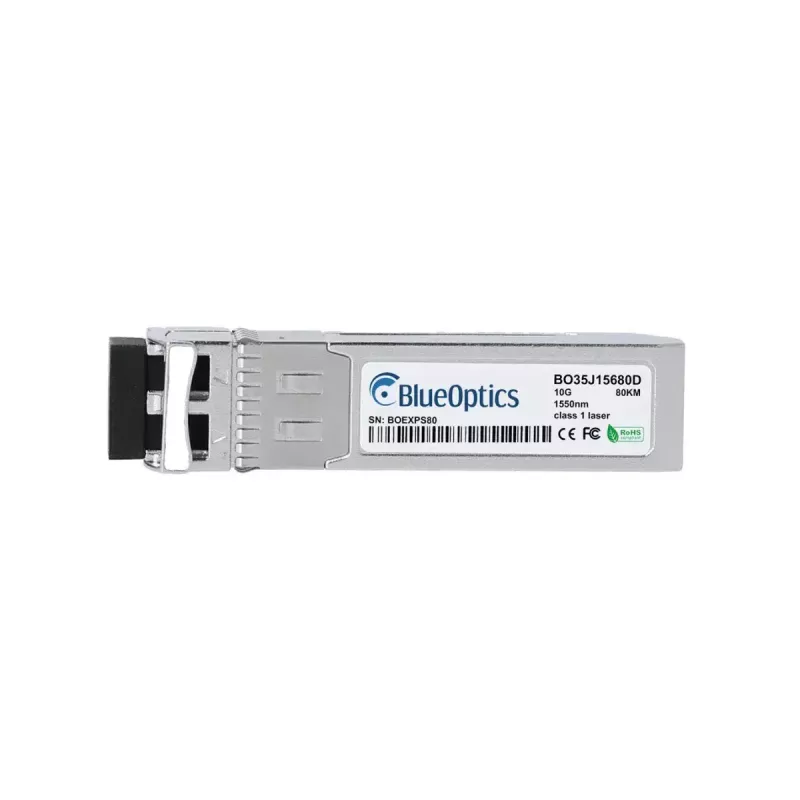

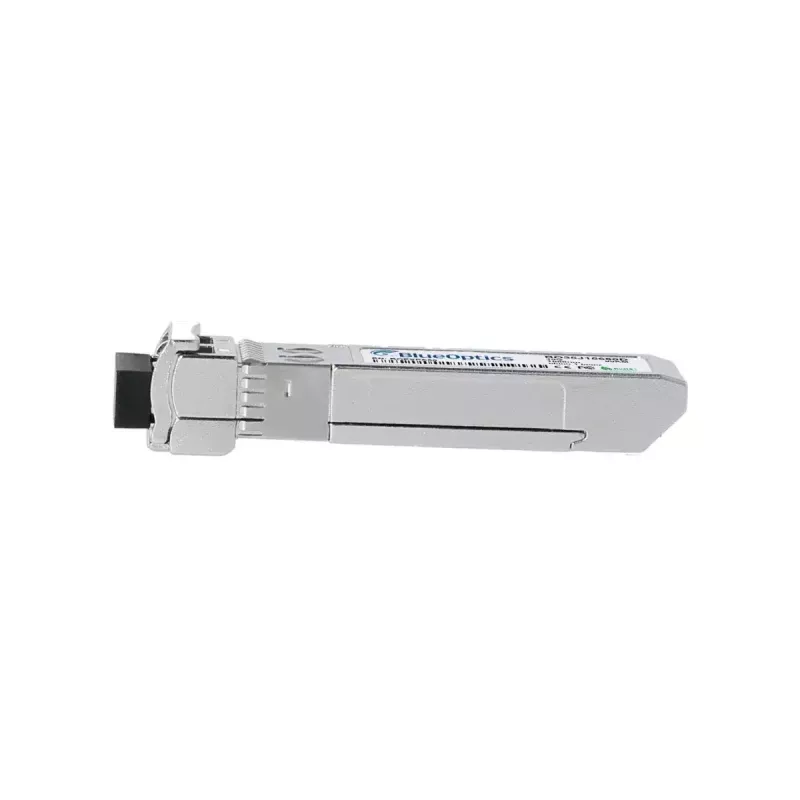

BlueOptics H-ZR-SFP+-BO sieťový transceiver modul optický 10000 Mbit/s SFP+

The BlueOptics H-ZR-SFP+-BO is a fiber optic network transceiver module designed for 10 Gbit/s links using an SFP+ interface. It supports single-mode fiber connections with LC duplex connectors and is intended for high-speed optical transmission over long distances. The module is compliant with CE, RoHS and FCC standards and weighs approximately 20 g, making it suitable for rack-mounted network equipment where compact, hot-pluggable optics are required.

Advantages

The transceiver supports 10GBASE-ZR class optical links with 1550 nm transmit and receive wavelengths and conforms to MSA SFP+ mechanical and electrical specifications for broad compatibility. It provides a compact, low-weight solution for extending Ethernet, Fibre Channel over Ethernet or SDH/SONET links up to long-reach distances. Built to industry test and quality practices, the module is suitable for replacement or expansion of certified SFP+ ports while offering digital diagnostics monitoring where supported by host hardware.

Suitable for

Key specifications

How to use

Install the transceiver into an SFP+ port on a compatible switch, router or storage device while the system is powered according to the host vendor's hot-plug guidelines. Connect an LC duplex single-mode fiber patch cable with the correct polarity to the module's ports. Verify link status and speed on the host device and enable any required interface settings such as speed or protocol. If the host supports digital diagnostics monitoring (DDM/DOM), enable and check diagnostic parameters for supply voltage, laser bias current, output power, received power and temperature to confirm correct operation.

Recommendations

Use single-mode LC duplex patch cords and follow manufacturer guidance for fiber polarity and connector cleanliness. Ensure host hardware and firmware support the 10GBASE-ZR class and DDM/DOM if you intend to use diagnostic features. For long-term reliability, avoid excessive mechanical stress on fiber cables and maintain a clean environment for optical connectors to preserve optical performance.
