BlueOptics kompatibilný HPE P08218-001 QSFP56 Direct Attach kábel, 200GBASE-CR4, InfiniBand HDR, 30AWG, 1 meter (P08218-001-BL)

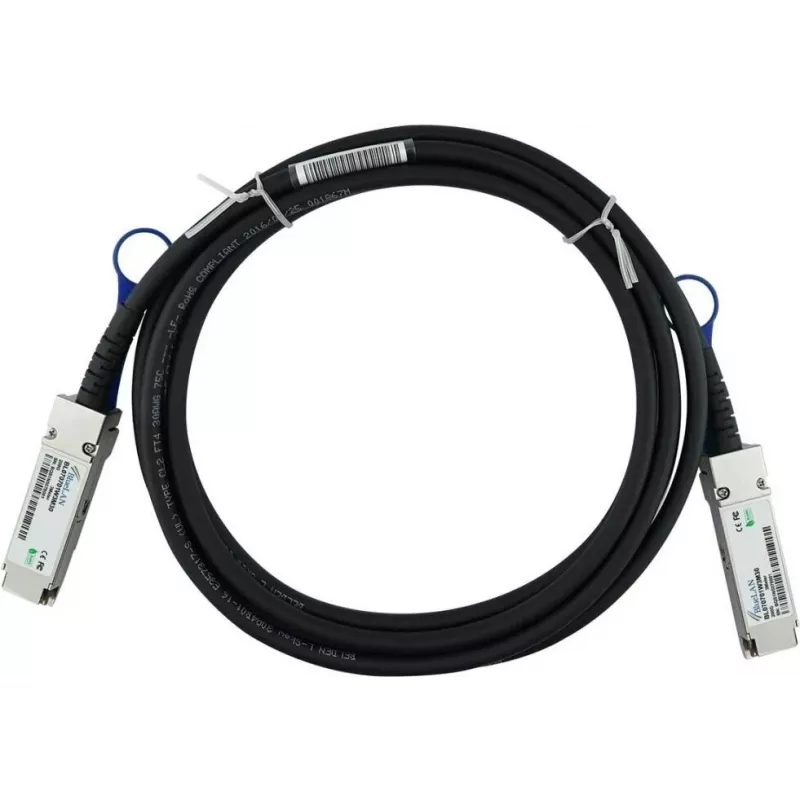

The BlueOptics P08218-001-BL is a high-performance, cost-effective compatible direct attach copper (DAC) cable designed to replace the HPE P08218-001. It supports 200GBASE-CR4 Ethernet and InfiniBand HDR standards, delivering 200 Gbps data transfer over a 1-meter passive copper cable with 30 AWG wire gauge. Ideal for data center interconnects, high-performance computing (HPC), and enterprise networking, this QSFP56 to QSFP56 cable ensures reliable, low-latency connectivity.

Advantages

This DAC cable offers a plug-and-play solution with hot-swappable capability, eliminating the need for power consumption typical of active cables. It is fully compatible with HPE switches and servers, providing a cost-efficient alternative without compromising performance. The passive design ensures minimal power usage and heat generation, making it suitable for dense deployments.

Suitable for

• Data center top-of-rack and end-of-row switching
• High-performance computing clusters
• Enterprise network backbone connections
• InfiniBand HDR fabric interconnects

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: QSFP56 to QSFP56
• Data Transfer Rate: 200 Gbps
• Ethernet Standard: 200GBASE-CR4
• InfiniBand Standard: HDR (High Data Rate)
• Cable Length: 1 Meter
• Cable Type: Passive Copper
• Wire Gauge: 30 AWG
• Number of Lanes: 4
• Hot-Swappable: Yes
• Power Consumption: Passive (Low)
• OEM Compatibility: HPE P08218-001

Recommendations

For optimal performance, pair this cable with compatible QSFP56 ports on HPE switches or servers. Ensure your equipment supports 200GBASE-CR4 or InfiniBand HDR standards. This cable is not recommended for use with active optical cables or converters.
