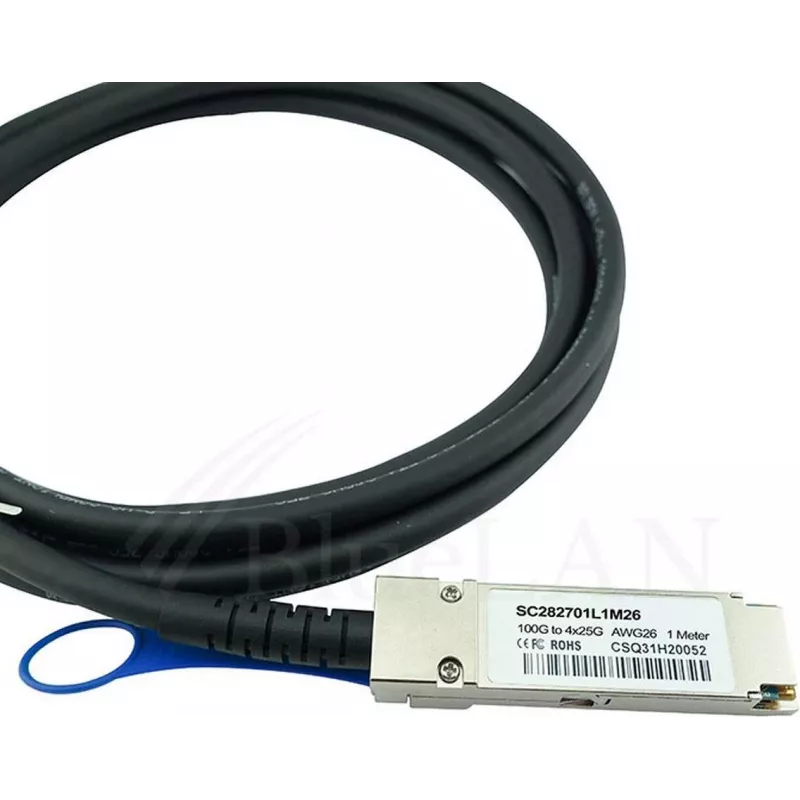

BLUEOPTICS kompatibilný Meraki QSFP28-4SFP28-DAC-1M BlueLAN pasívny 100GBASE-CR4 QSFP28 na 4x25GBASE-CR SFP28 Direct Attach Breakout kábel, 1 meter, AWG26

The BLUEOPTICS Q28-4S28-DAC-1M-MR-BL is a high-performance passive Direct Attach Copper (DAC) breakout cable designed for seamless integration with Meraki networking equipment. This cable converts a single QSFP28 port into four SFP28 ports, enabling 100 Gigabit Ethernet connectivity over four 25 Gbps lanes. Ideal for data center interconnects and high-performance computing environments, it offers reliable, low-latency connections with minimal power consumption.

Advantages

This breakout cable provides a cost-effective and efficient solution for high-density network deployments. Its passive design ensures zero power consumption, while the 26 AWG construction guarantees signal integrity over the 1-meter length. The BlueLAN compatibility ensures plug-and-play operation with Meraki switches, reducing deployment time and complexity.

Suitable for

• Data center interconnects requiring high bandwidth and low latency
• High-performance computing (HPC) clusters
• Network switches with QSFP28 ports needing breakout to SFP28
• Meraki networking environments

Key specifications

• Cable Type: Direct Attach Copper (DAC), Passive
• Connector A: QSFP28 (100GBASE-CR4)
• Connector B: 4x SFP28 (25GBASE-CR)
• Data Rate: 100 Gbps aggregate (4x 25 Gbps per lane)
• Length: 1 Meter (3.3 ft)
• Wire Gauge: 26 AWG
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Power Consumption: < 0.1W
• Compliance: RoHS

Recommendations

For optimal performance, ensure your network equipment supports QSFP28 and SFP28 interfaces. This cable is specifically designed for Meraki compatibility but may work with other standards-compliant devices. Always verify compatibility with your hardware before deployment.
