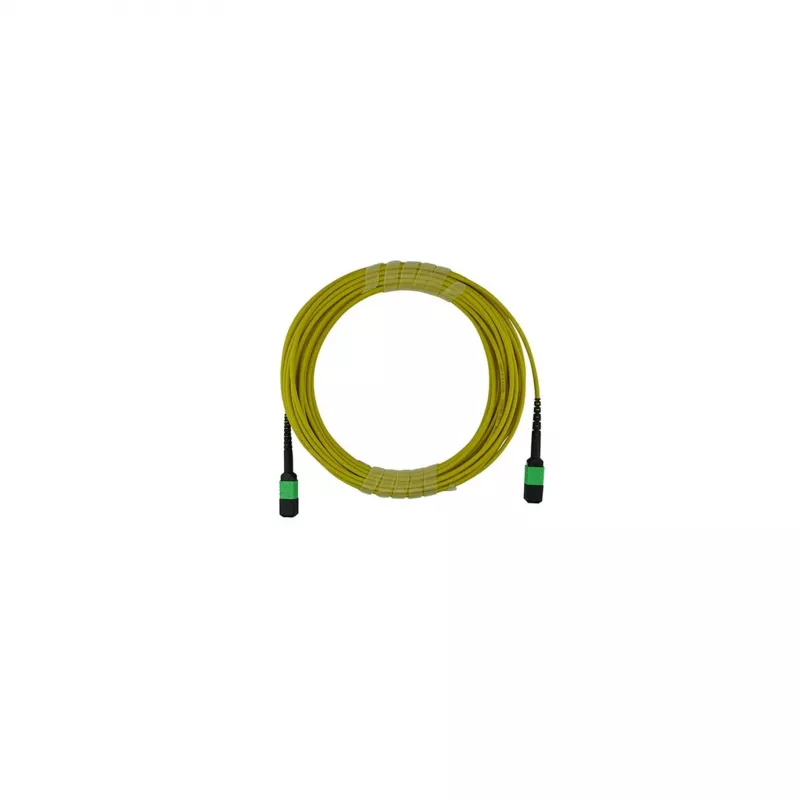

BlueOptics Kompatibilný s Alcatel-Nokia 3HE13952AA MPO/APC na MPO/APC Singlemode OS2 optický trunk kábel, 10 m

The BlueOptics 3HE13952AA-BO is a high-performance fibre optic trunk cable designed for compatibility with Alcatel-Nokia systems. This 10-meter single-mode OS2 cable features MPO/APC connectors on both ends, ensuring low insertion loss and high return loss for reliable data transmission in data center and telecommunications environments.

Advantages

Pre-terminated MPO/APC connectors eliminate field termination, reducing installation time and cost. The LSZH jacket provides safety in confined spaces, while the 12-fiber count supports high-density cabling. Type B polarity ensures correct cross-over connectivity for duplex applications.

Suitable for

• Data center interconnects
• High-density network cabling
• Telecommunications infrastructure
• Alcatel-Nokia compatible systems

Key specifications

• Cable Type: Fibre Optic Trunk Cable
• Connector Type A: MPO/APC
• Connector Type B: MPO/APC
• Cable Length: 10 meters
• Fiber Mode: Single-mode (OS2)
• Fiber Count: 12 Fibers
• Polarity: Type B (Cross-over)
• Insertion Loss (Typical): ≤ 0.35 dB per connector pair
• Return Loss (Typical): ≥ 60 dB (APC)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Compatibility: Alcatel-Nokia 3HE13952AA
• Application: Data Center Interconnect, High-Density Network Cabling, Telecommunications
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Standards Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC 61754-7
• Ferrule Material: Zirconia Ceramic
• Cable Diameter: 3.0 mm
• Minimum Bend Radius: 30 mm
• Connector Housing Material: Plastic

Recommendations

For optimal performance, ensure proper handling and storage within specified temperature ranges. This cable is ideal for high-speed networks requiring low loss and high reliability.
