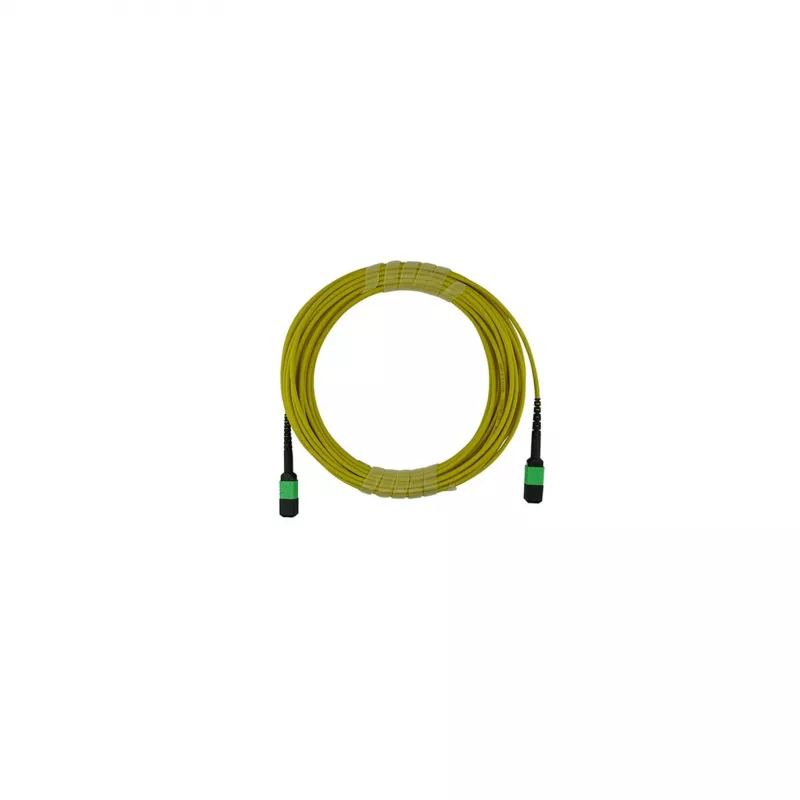

BlueOptics Kompatibilný s HPE P45731-B23 optický trunk kábel, MPO/APC na MPO/APC, 10 m, Singlemode OS2

The BlueOptics Compatible HPE P45731-B23 Fibre Optic Trunk Cable is a high-performance, pre-terminated MPO/APC to MPO/APC trunk cable designed for reliable, high-density fibre optic connectivity. Engineered to be fully compatible with HPE P45731-B23, this cable delivers exceptional signal integrity and low insertion loss, making it ideal for data centre, enterprise network, and telecommunications applications.

Advantages

This trunk cable offers significant advantages for network infrastructure: it simplifies cable management with its pre-terminated MPO connectors, reduces installation time, and ensures consistent performance. The single-mode OS2 fibre supports long-distance transmission with minimal signal degradation, while the LSZH jacket provides safety in enclosed spaces. With low insertion loss and high return loss, it maintains signal quality even in demanding environments.

Suitable for

• Data centre backbone cabling and structured cabling systems
• High-speed network connections requiring MPO/APC interfaces
• Telecommunications and enterprise network infrastructure
• Applications demanding low insertion loss and high return loss
• Environments where LSZH (Low Smoke Zero Halogen) jacket is required for safety

Key specifications

• Product Type: Fibre Optic Trunk Cable
• Brand Compatibility: HPE P45731-B23 (Compatible)
• Connector Type A: MPO/APC
• Connector Type B: MPO/APC
• Cable Length: 10 Metres
• Fibre Type: Single-Mode (OS2)
• Number of Fibres: 12 Fibres
• Fibre Core/Cladding Diameter: 9/125 µm
• Polarity: Type B
• Insertion Loss (Max): ≤ 0.35 dB
• Return Loss (Min): ≥ 60 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Blue
• Cable Diameter: 3.0 mm
• Operating Wavelengths: 1310 nm, 1550 nm
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: IEC 61754-7, TIA/EIA-604-5, RoHS, CE

Recommendations

For optimal performance, ensure that the MPO connectors are clean and properly mated. This cable is designed for indoor use; avoid exposure to extreme moisture or physical stress. Pair with compatible HPE or standard MPO/APC patch panels and transceivers for seamless integration.
