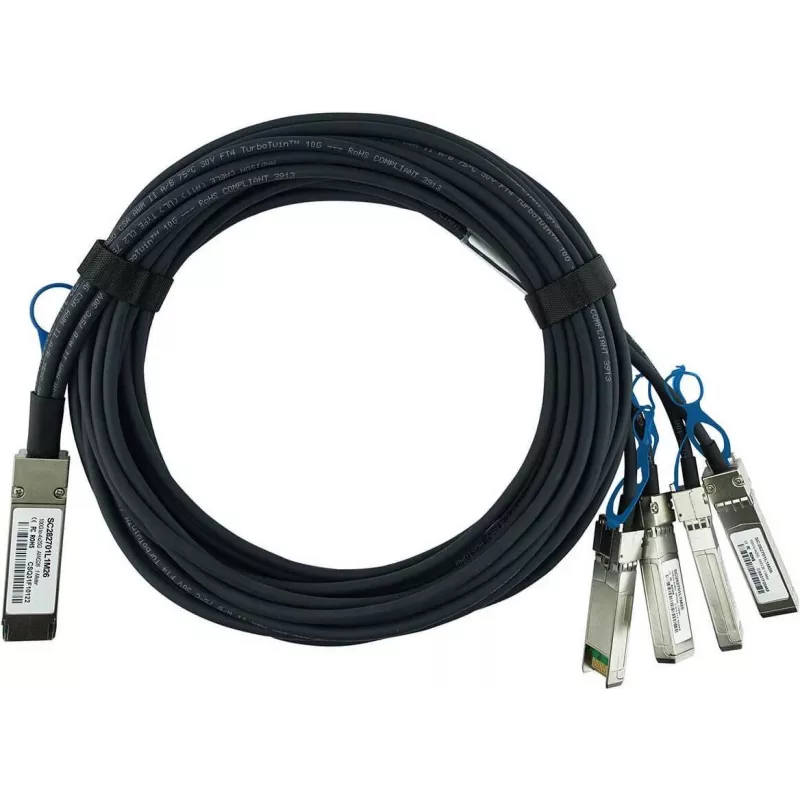

BlueOptics kompatibilný s MRV QSFP28-4SFP28-DAC-2M BlueLAN pasívny 100GBASE-CR4 QSFP28 na 4x25GBASE-CR SFP28 Direct Attach Breakout kábel, 2 metre, AWG26 (Q28-4S28-DAC-2M-MV-BL)

The BlueOptics Q28-4S28-DAC-2M-MV-BL is a high-performance passive direct attach breakout cable designed for 100 Gigabit Ethernet applications. It converts a single QSFP28 port into four independent SFP28 ports, enabling cost-effective 100G to 4x25G connectivity. This cable is fully compatible with MRV equipment and built to meet the rigorous demands of modern data centers and high-performance computing environments.

Advantages

This breakout cable offers a reliable and energy-efficient solution for network upgrades. With zero power consumption, it reduces overall system power draw and heat generation. The passive design ensures low latency and high signal integrity, while the 2-meter length provides flexibility in rack configurations. The AWG26 gauge wire ensures optimal performance for 25G per lane transmission.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Network interconnect between switches and routers
• 100G to 4x25G breakout applications

Key specifications

• Product Type: Direct Attach Breakout Cable
• Cable Type: Copper
• Cable Length: 2 Meters
• Wire Gauge: AWG26
• Connector A: QSFP28
• Connector B: 4x SFP28
• Aggregate Data Rate: 100 Gbps
• Per Lane Data Rate: 25 Gbps
• Ethernet Standard: 100GBASE-CR4 / 25GBASE-CR
• Cable Design: Passive
• Compatibility: MRV
• Hot-Swappable: Yes
• RoHS Compliance: Yes
• Impedance: 100 Ohm
• Form Factor: QSFP28 to 4x SFP28
• Power Consumption: 0W

Recommendations

For optimal performance, ensure that both the switch and server ports support 100GBASE-CR4 and 25GBASE-CR standards respectively. This cable is ideal for short-distance, high-bandwidth connections within a rack or between adjacent racks.
