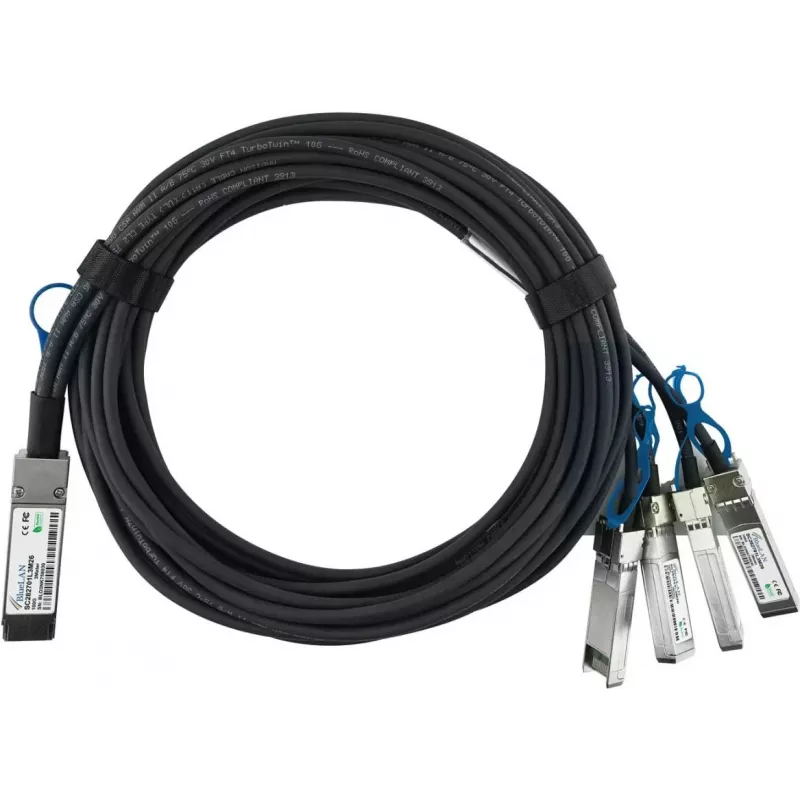

BlueOptics Lenovo AV24 Kompatibilný BlueLAN pasívny 100GBASE-CR4 QSFP28 na 4x25GBASE-CR SFP28 Direct Attach Breakout kábel, 5m, AWG26 (AV24-BL)

The BlueOptics AV24-BL is a high-performance passive Direct Attach Breakout Cable (DAC) designed for reliable 100 Gbps connectivity in data centers and high-performance networking environments. This cable converts a single QSFP28 port into four SFP28 ports, enabling cost-effective migration to higher speeds while leveraging existing 25 Gbps infrastructure.

Advantages

Ultra-low power consumption (passive design, no external power needed) and hot-swappable form factor ensure easy deployment and energy efficiency. The breakout configuration allows flexible network architecture, reducing the need for additional switches or transceivers.

Suitable for

• Data center interconnects
• High-performance computing clusters
• Server-to-switch connectivity
• Network upgrades from 25G to 100G

Key specifications

• Cable Type: Direct Attach Breakout Cable (DAC)
• Connector A: QSFP28 (100GBASE-CR4)
• Connector B: 4x SFP28 (25GBASE-CR)
• Data Rate: 100 Gbps aggregate (4x 25 Gbps per lane)
• Length: 5 meters
• Wire Gauge: AWG26
• Technology: Passive copper
• Compatibility: Lenovo and other QSFP28/SFP28 compliant devices

Recommendations

For optimal performance, ensure both ends of the cable are connected to compatible QSFP28 and SFP28 ports. This cable is ideal for short-reach, high-bandwidth links within racks or between adjacent racks.
