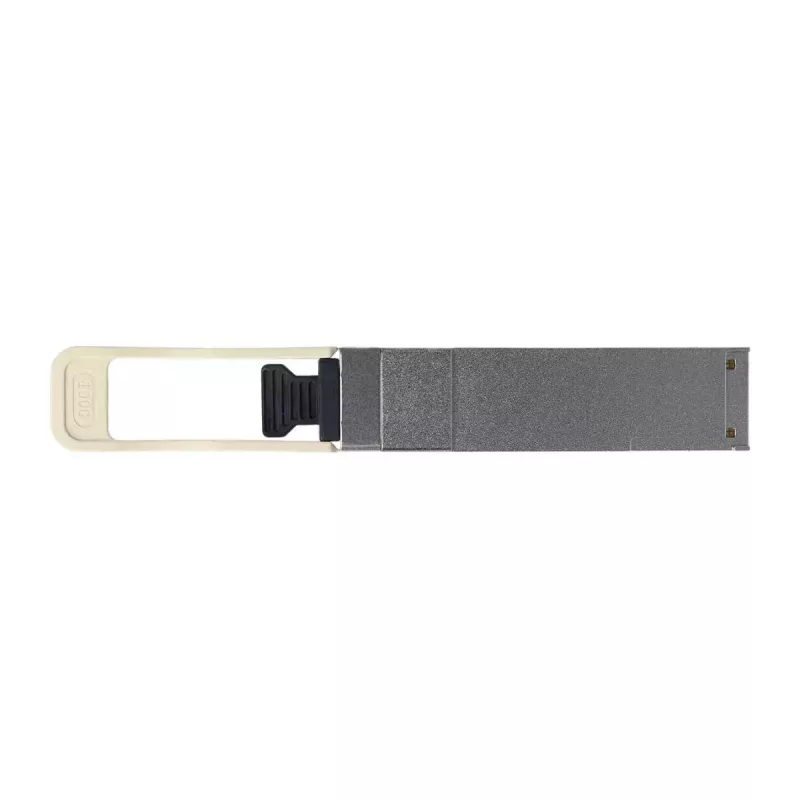

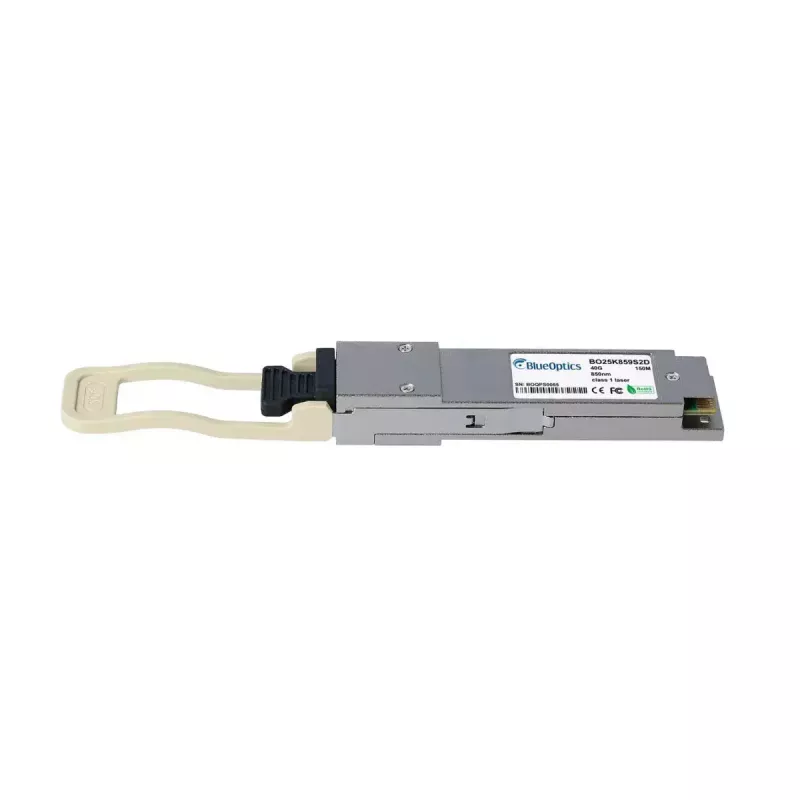

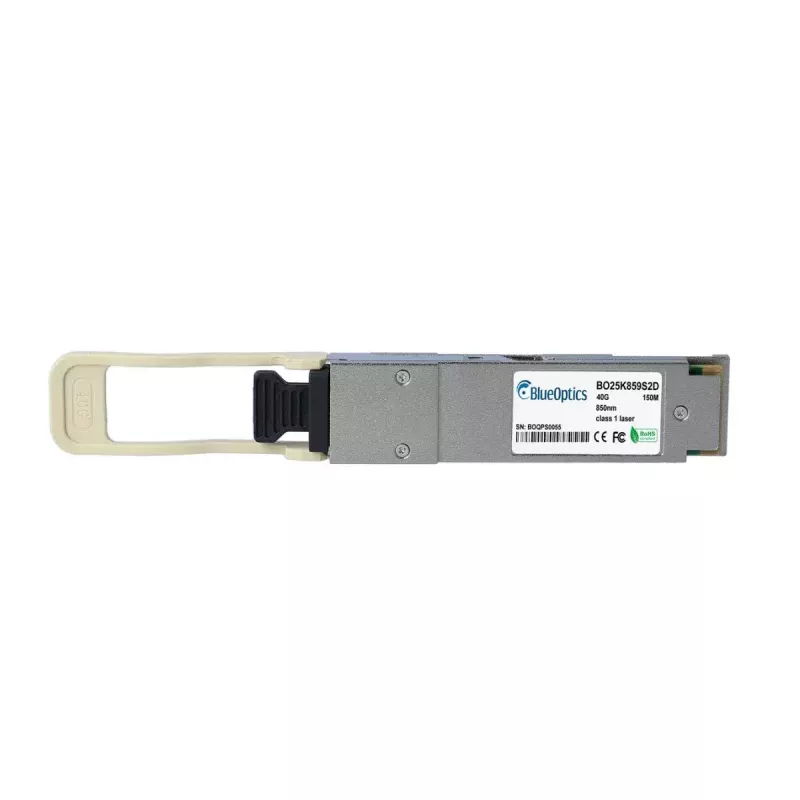

BlueOptics LM-QSFP-40G-SR-BO sieťový transceiver modul 40000 Mbit/s QSFP

The BlueOptics LM-QSFP-40G-SR-BO is a QSFP fiber optic transceiver module designed for high-speed network links with a maximum data transfer rate of 40000 Mbit/s. The module supports multimode fiber transmission using an MPO/MTP connection and follows industry MSA conventions to ensure compatibility with a wide range of networking hardware. It has a compact silver housing, a lightweight construction of approximately 20 g, and an MTBF rated at 3,000,000 hours. The module is RoHS, FCC and CE compliant and provides 40GBASE-SR4 functionality with 850 nm transmit and receive characteristics suitable for short-reach multimode applications.

Advantages

The BlueOptics LM-QSFP-40G-SR-BO offers a standardized QSFP interface for 40 Gbit/s links and an MPO/MTP multimode fiber connection that simplifies high-density deployments. Its compliance with RoHS, FCC and CE ensures adherence to common environmental and regulatory requirements, while the high MTBF indicates reliability for continuous operation. The module's compact silver form factor and low weight make it suitable for densely populated equipment bays and modular switch or router ports.

Suitable for

Key specifications

How to use

Install the module into a compatible QSFP port according to the host equipment manufacturer’s instructions. Use an MPO/MTP multimode fiber patch or harness rated for 40GBASE-SR4 and ensure proper cable polarity and fiber type (multimode) for reliable transmission. After insertion, verify link negotiation and optical levels on the host device. Follow standard electrostatic discharge (ESD) precautions when handling the transceiver and keep connector endfaces clean to avoid signal degradation.

Recommendations

For optimal performance, use certified multimode MPO/MTP patch cords and verify that fiber distances and modal bandwidth meet 40GBASE-SR4 specifications. Ensure the host device firmware supports third-party QSFP modules if required and perform optical power and link tests after installation. Store unused transceivers in protective dust caps and a dry environment to preserve connector integrity.
