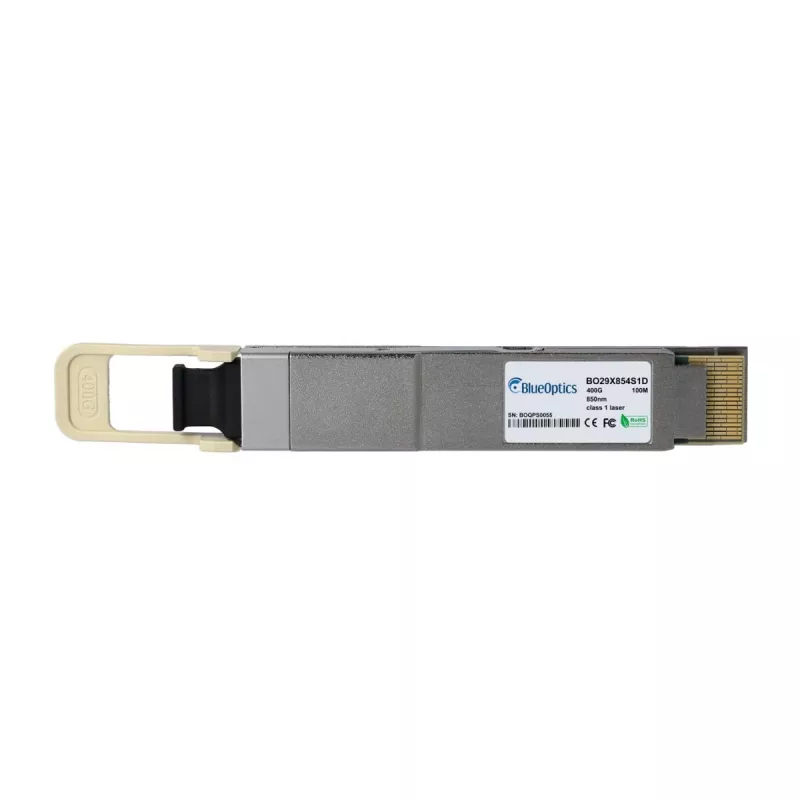

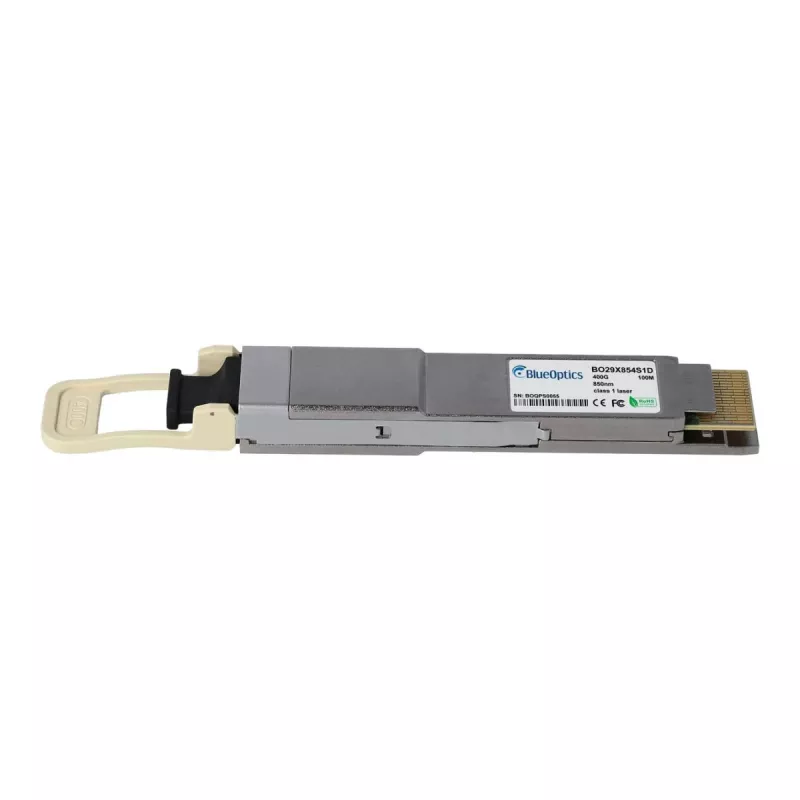

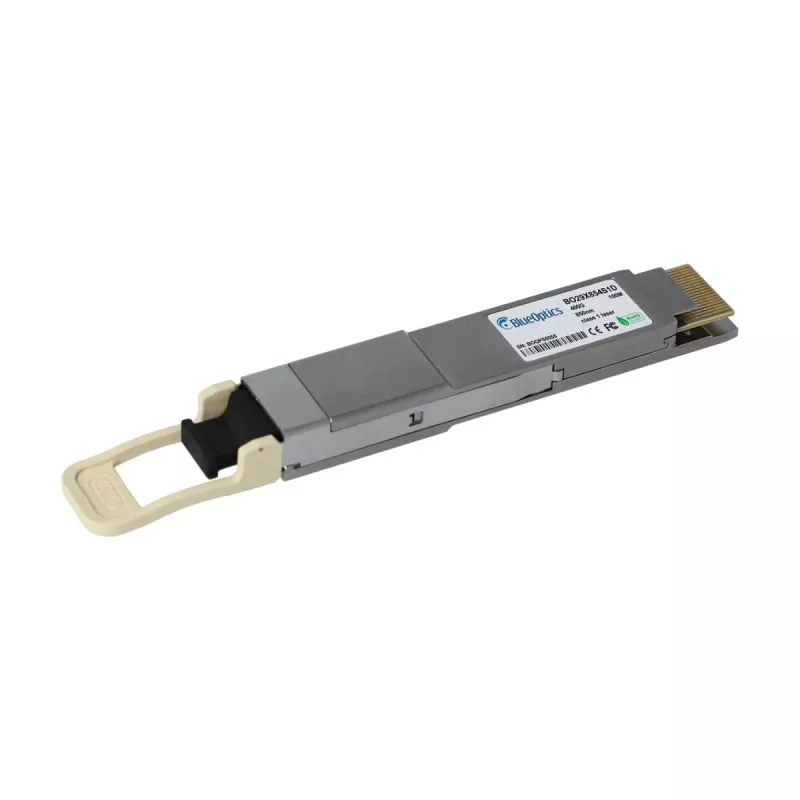

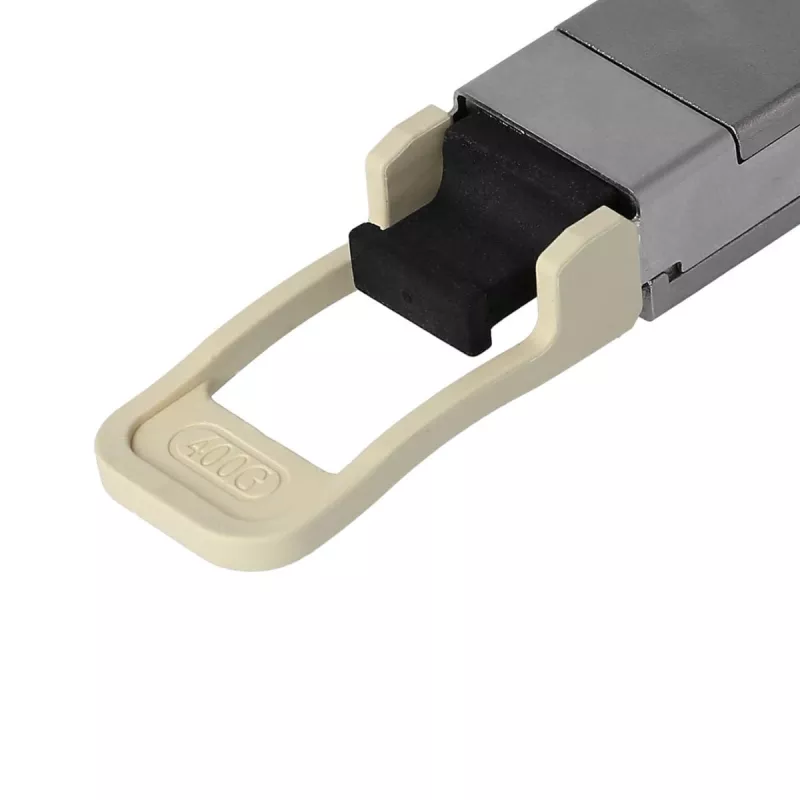

BlueOptics QSFP-DD 400GBASE-DR4 transceiver, MPO-12, 1310nm, 500m SMF, kompatibilný s Finisar FTCD8613E2PCM

The BlueOptics QSFP-DD BO29X854S1D stands apart from typical 400G optics by combining MSA compliance with exact Finisar FTCD8613E2PCM compatibility, ensuring seamless integration into existing network infrastructures without firmware or interoperability concerns. This 400GBASE-DR4 transceiver delivers four parallel 100G optical lanes over a single MPO-12 connector, achieving an aggregate 400 Gbps data rate across 500 meters of single-mode fiber. Its double-density QSFP-DD form factor doubles port density compared to QSFP28, making it ideal for high-density data center spine-leaf architectures.

Highlights

• 400GBASE-DR4 parallel optics with 1310nm EML lasers and PIN photodiode receivers
• Hot-pluggable QSFP-DD form factor with MPO-12 connector for single-mode fiber
• Digital Diagnostics Monitoring (DDM/DOM) for real-time performance tracking
• Low power consumption under 8W, supporting dense rack deployments
• Commercial temperature range (0°C to 70°C) for standard data center environments

In daily use

Deploying the BlueOptics QSFP-DD BO29X854S1D simplifies 400G migration. Its MSA-compliant design guarantees interoperability with Finisar FTCD8613E2PCM and other QSFP-DD ports, while the MPO-12 interface allows straightforward connection to existing 8-fiber parallel single-mode cabling. Network administrators benefit from DDM capabilities to monitor optical power, temperature, and voltage, enabling proactive maintenance and reducing downtime. With a 500-meter reach, this transceiver covers typical data center interconnect distances without additional amplification, and its hot-pluggable nature allows for live insertion and removal without disrupting network traffic.

Full specifications

• Brand: BlueOptics
• Model: FTCD8613E2PCM-BO
• MPN: BO29X854S1D
• EAN: 4063232312484
• Form Factor: QSFP-DD
• Transceiver Type: 400GBASE-DR4
• Data Rate: 400 Gbps
• Wavelength: 1310 nm
• Maximum Reach: 500 m
• Fiber Type: Single-mode
• Connector: MPO-12
• DDM/DOM: Yes
• Power Consumption: < 8 W
• Operating Temperature: 0°C to 70°C
• Voltage: 3.3 V
• Laser Type: EML
• Receiver Type: PIN
• Standards: IEEE 802.3bs, QSFP-DD MSA
• Hot-Pluggable: Yes
• Application: Data Center Interconnect, High-Speed Networking

Final note

For data centers scaling to 400G, the BlueOptics QSFP-DD BO29X854S1D offers a reliable, standards-based solution with proven Finisar compatibility, ensuring a smooth transition to next-generation network speeds.
