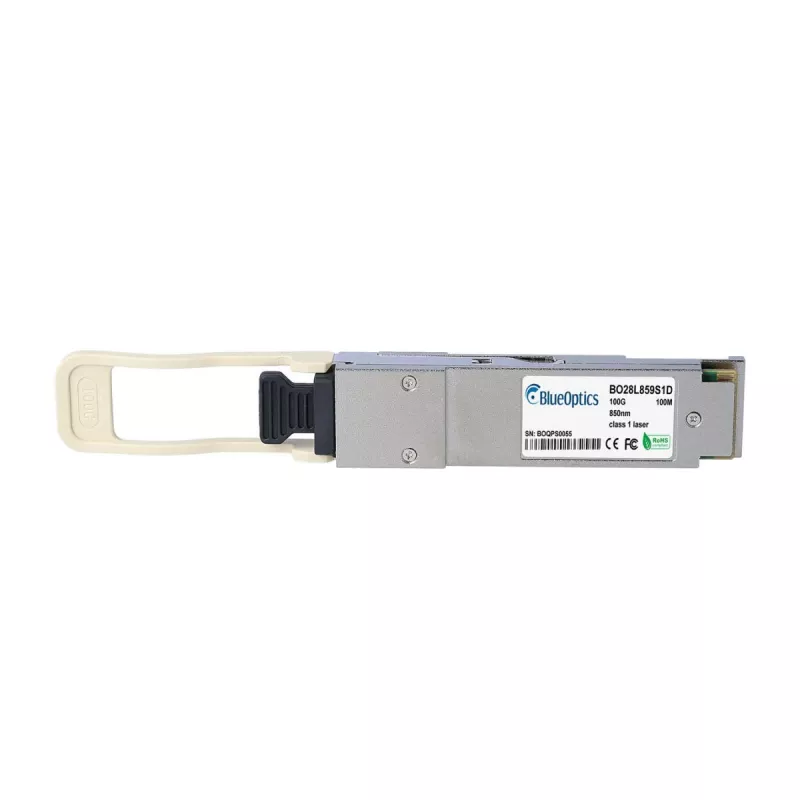

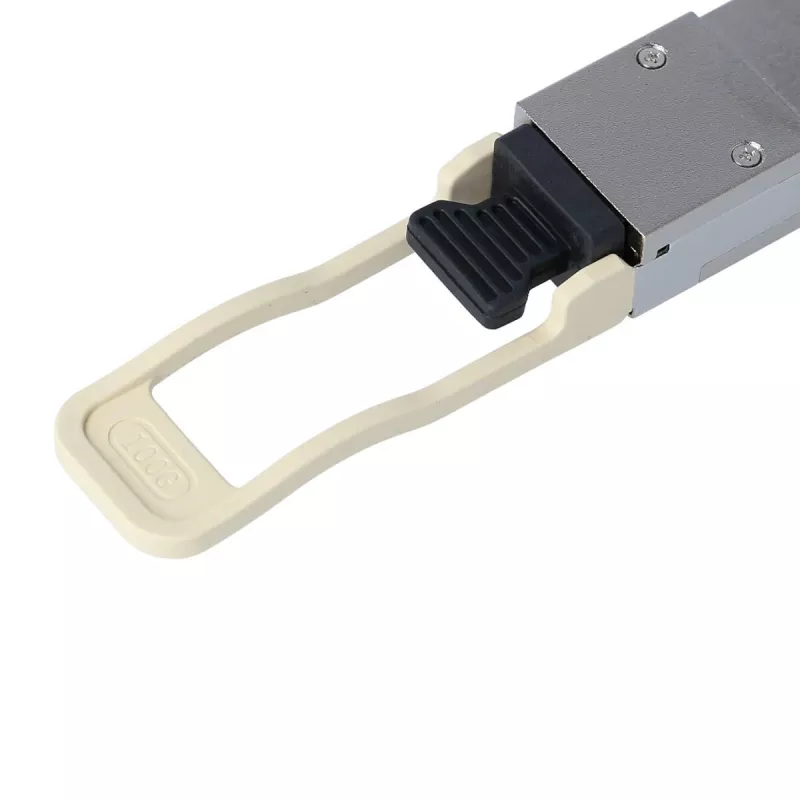

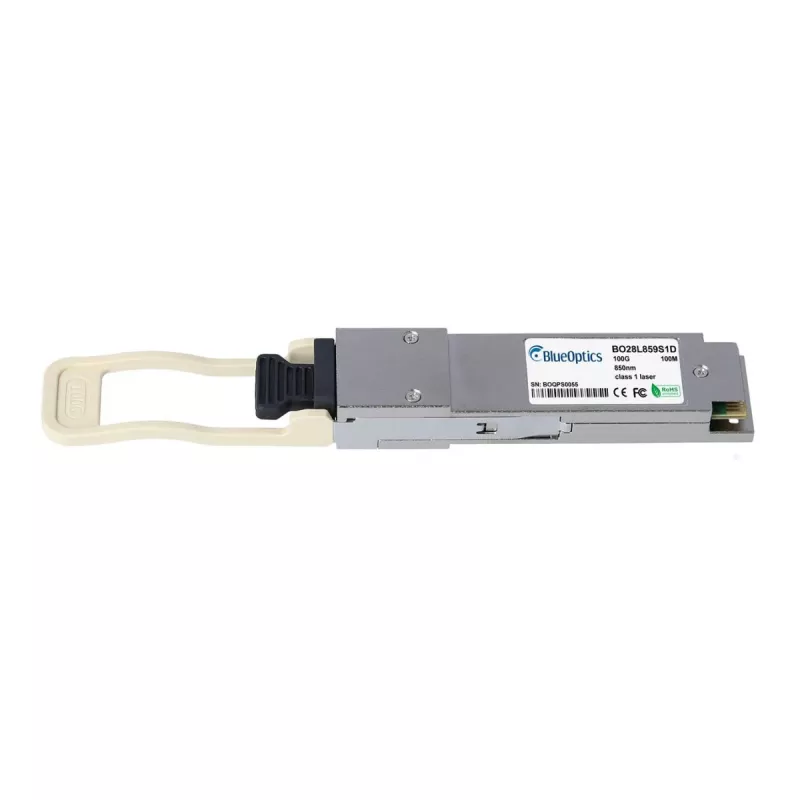

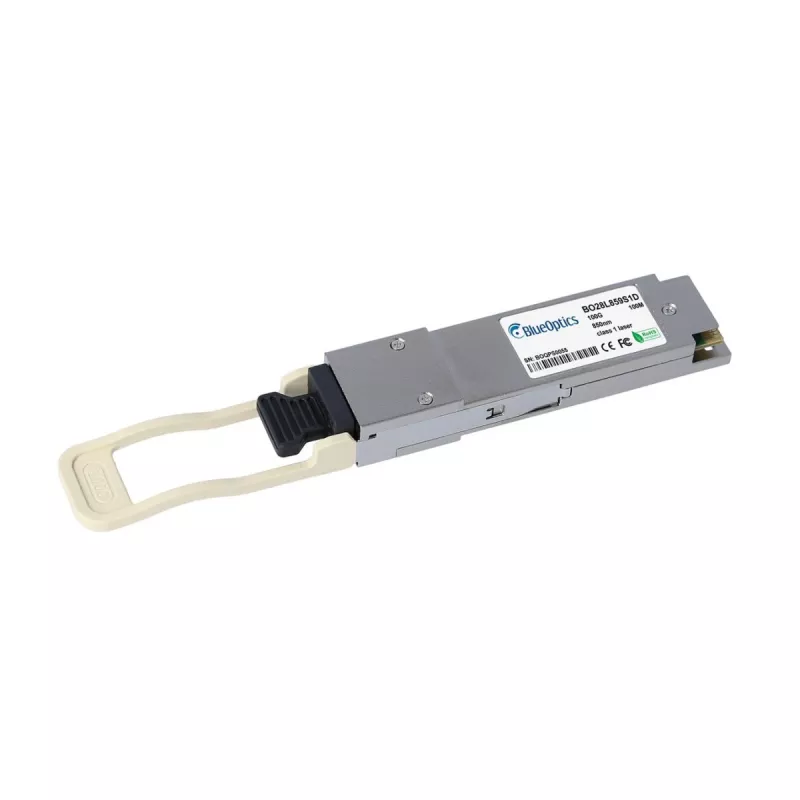

BlueOptics QSFP28-100G-SR4-SG-BO kompatibilný transceiver pre Synology QSFP28-100G-SR4, 100GBASE-SR4, 850nm, MPO/MTP, 100m OM4

The BlueOptics QSFP28-100G-SR4-SG-BO is a high-performance 100GBASE-SR4 transceiver designed for compatibility with Synology QSFP28-100G-SR4 ports. It delivers reliable 100 Gbps connectivity over multi-mode fiber, ideal for data center and enterprise networks.

Advantages

Cost-effective alternative to OEM modules with full compatibility and performance. Hot-pluggable QSFP28 form factor enables easy installation and upgrades. Supports DDM/DOM for real-time monitoring of optical parameters.

Suitable for

• Synology NAS systems with QSFP28-100G-SR4 interfaces
• 100 Gigabit Ethernet networks in data centers
• High-speed interconnects between switches and servers
• Short-reach multi-mode fiber links up to 100m

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps (4x 25 Gbps NRZ)
• Transceiver Type: 100GBASE-SR4
• Wavelength: 850 nm
• Connector: MPO/MTP-12 (Female)
• Max Reach: 70m OM3, 100m OM4
• Fiber Type: Multi-Mode Fiber (MMF)
• Power Consumption: < 3.5 W
• Operating Temperature: 0°C to 70°C
• Hot-Pluggable: Yes
• DDM/DOM: Yes
• Standards: IEEE 802.3bm 100GBASE-SR4
• RoHS Compliant: Yes

Recommendations

For optimal performance, use with OM4 multi-mode fiber and ensure your Synology device supports QSFP28 modules. This transceiver is a direct replacement for Synology QSFP28-100G-SR4.
