BlueOptics QSFP28-4SFP28-DAC-1M kompatibilný s BlueLAN QSFP28 DAC Breakout kábel 1m

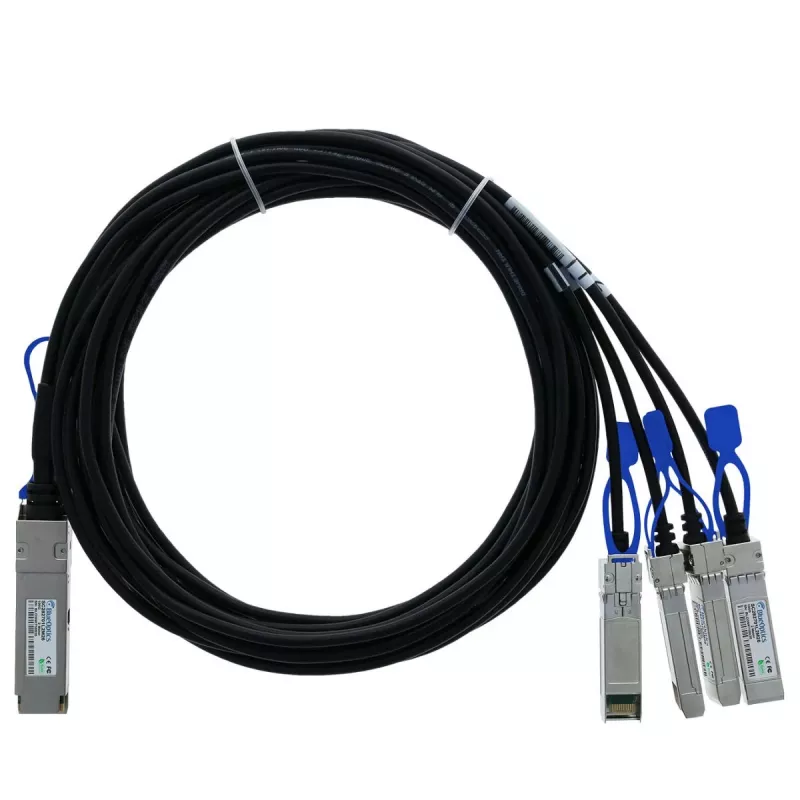

The BlueOptics QSFP28-4SFP28-DAC-1M is a high-performance direct attach copper (DAC) breakout cable designed for 100 Gigabit Ethernet networks. This passive copper cable connects a QSFP28 port to four SFP28 ports, providing a cost-effective and reliable solution for short-range interconnects within data centers and enterprise networks. With a length of 1 meter, it is ideal for top-of-rack to server connections.

Advantages

This DAC breakout cable offers low power consumption, high signal integrity, and hot-swappable functionality. It eliminates the need for separate transceivers and fiber cabling, reducing cost and complexity. The passive design ensures zero power consumption at the cable ends, making it an energy-efficient choice.

Suitable for

• Data center top-of-rack (ToR) to server connections
• High-performance computing (HPC) clusters
• Enterprise network aggregation
• 100GBASE-CR4 and 25GBASE-CR compliant applications

Key specifications

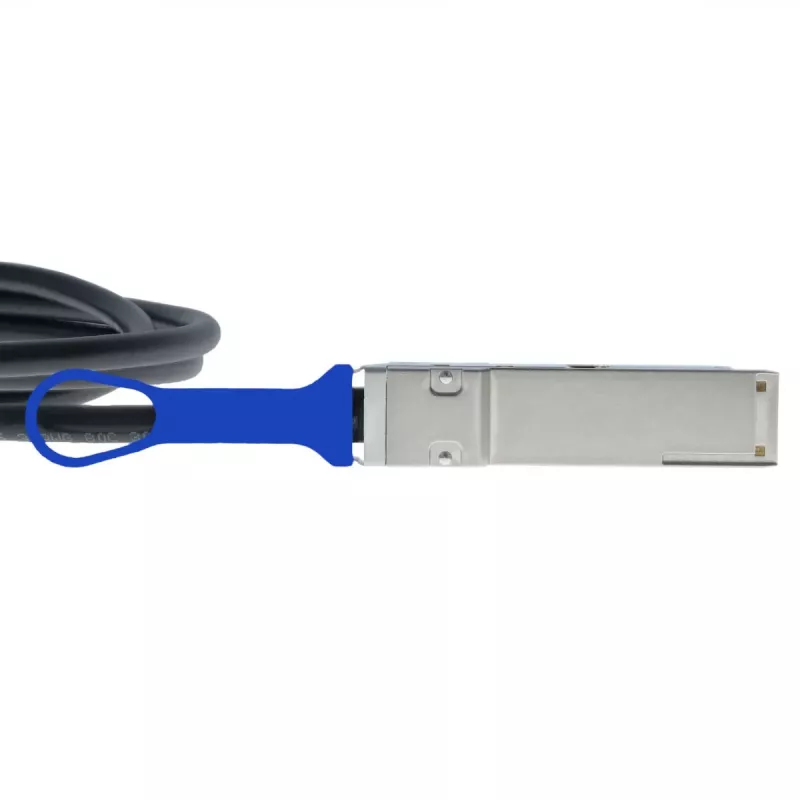

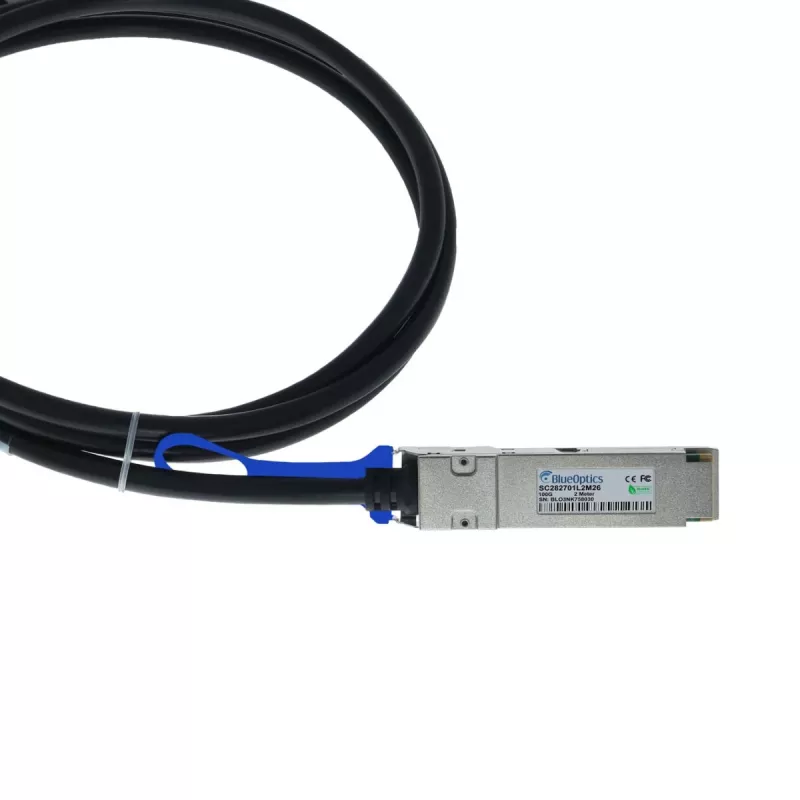

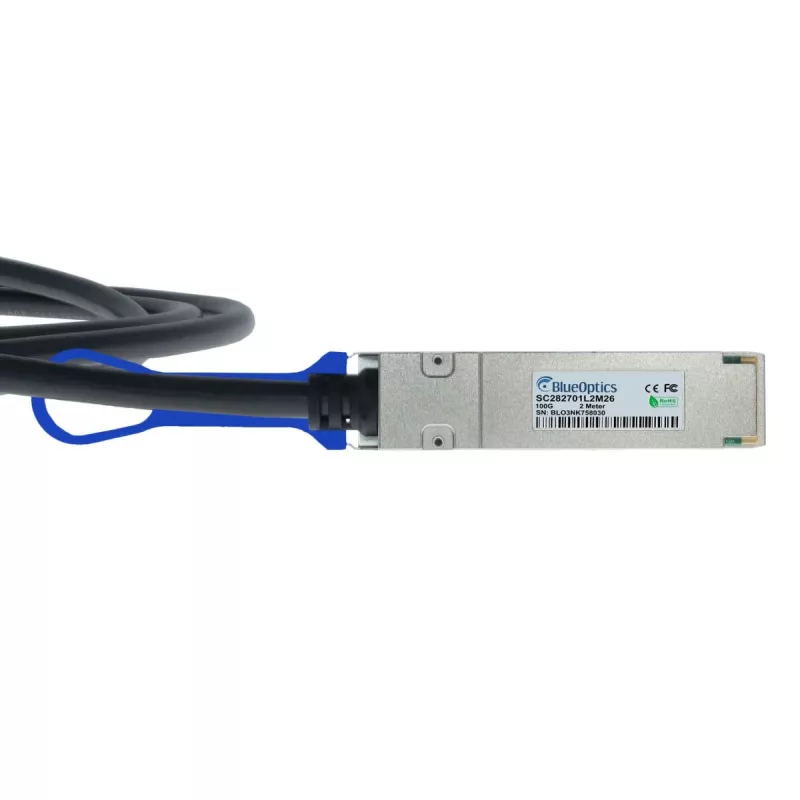

• Connector A: QSFP28 Male
• Connector B: 4x SFP28 Male
• Data Rate: 100 Gbps aggregate (4x 25 Gbps per lane)
• Cable Length: 1 Meter (3.3 ft)
• Cable Type: Passive Copper
• Impedance: 100 Ohm
• Power Consumption: < 0.5W per end
• Operating Temperature: 0°C to 70°C
• Standards: IEEE 802.3bj, IEEE 802.3by, SFF-8665, SFF-8402

Recommendations

For optimal performance, ensure that both the switch and server ports support QSFP28 and SFP28 respectively. This cable is compatible with BlueLAN equipment and other MSA-compliant devices. Verify your device's compatibility before purchase.
