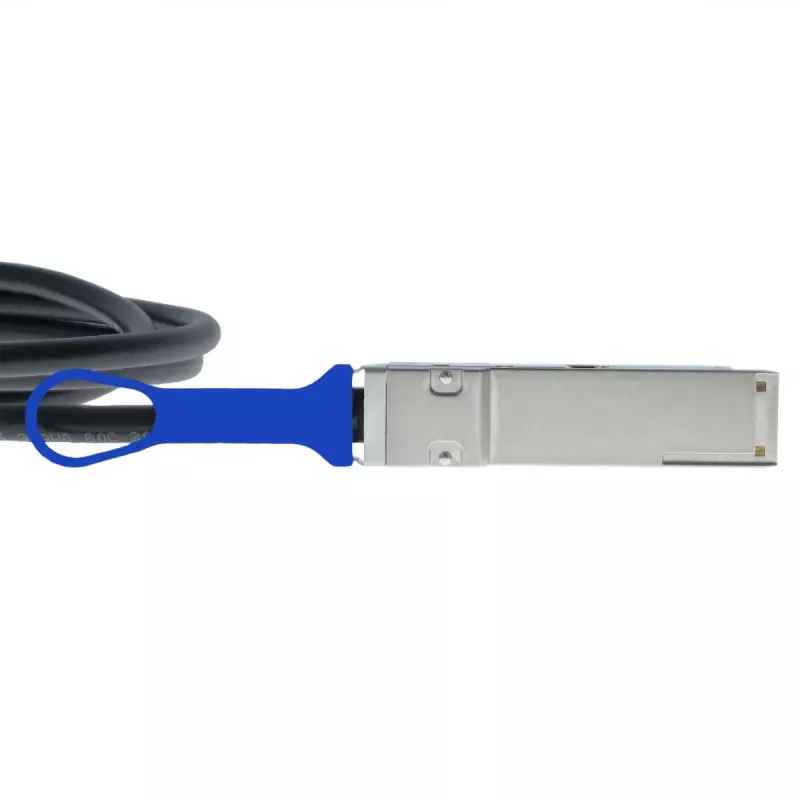

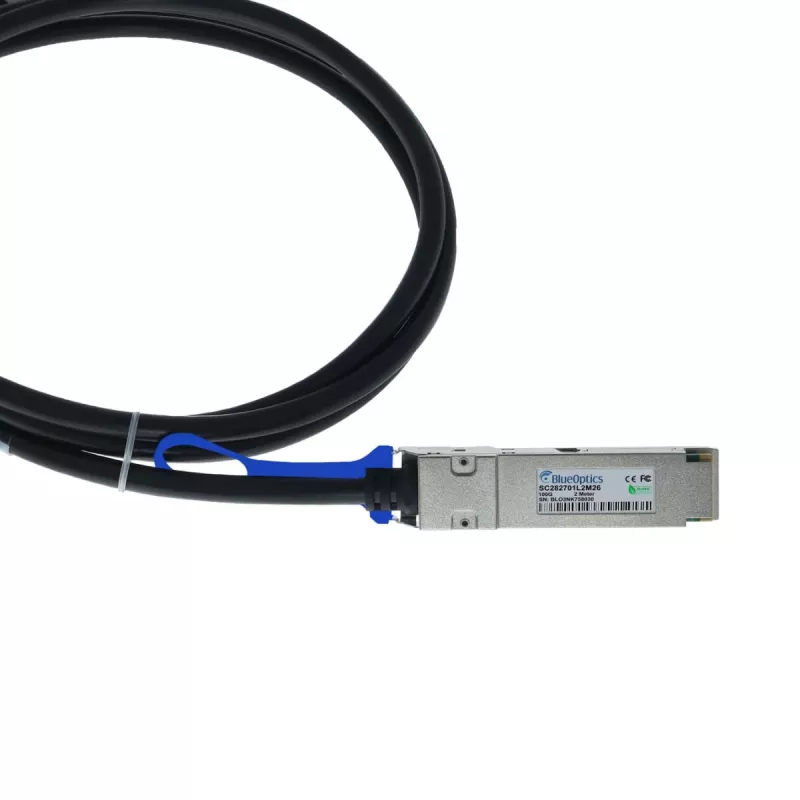

BlueOptics Ruckus E100G-QSFP-4SFP-P-0501 Kompatibilný BlueLAN QSFP28 DAC Breakout kábel 1m

The BlueOptics Ruckus E100G-QSFP-4SFP-P-0501 Compatible BlueLAN QSFP28 DAC Breakout Cable is a high-performance direct attach copper (DAC) cable designed for 100 Gigabit Ethernet connectivity. It breaks out a single QSFP28 port into four SFP28 ports, enabling seamless integration of 100G switches with 25G servers or network devices. This passive copper cable is ideal for short-range, high-speed data center interconnects and enterprise networking.

Advantages

Cost-effective and low-power solution for 100G to 4x25G breakout applications. Hot-pluggable design ensures easy installation and minimal downtime. Compliant with industry standards for broad compatibility.

Suitable for

• Data center top-of-rack (ToR) to server connections
• High-performance computing (HPC) clusters
• Enterprise network aggregation
• Ruckus E100G-QSFP-4SFP-P-0501 and other QSFP28/SFP28 compliant devices

Key specifications

• Cable Type: Direct Attach Copper (DAC) Breakout Cable
• Connector A: 1x QSFP28 Male
• Connector B: 4x SFP28 Male
• Data Rate: 100 Gbps (QSFP28) to 4x 25 Gbps (SFP28)
• Cable Length: 1 Meter (3.3 feet)
• Cable Gauge: 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Power Consumption: < 0.5W (per end)
• Standards: SFF-8665, SFF-8402, IEEE 802.3bj
• Hot-Pluggable: Yes

Recommendations

For optimal performance, ensure both ends of the cable are connected to compatible QSFP28 and SFP28 ports. This cable is passive and does not require external power. Suitable for indoor use only.
