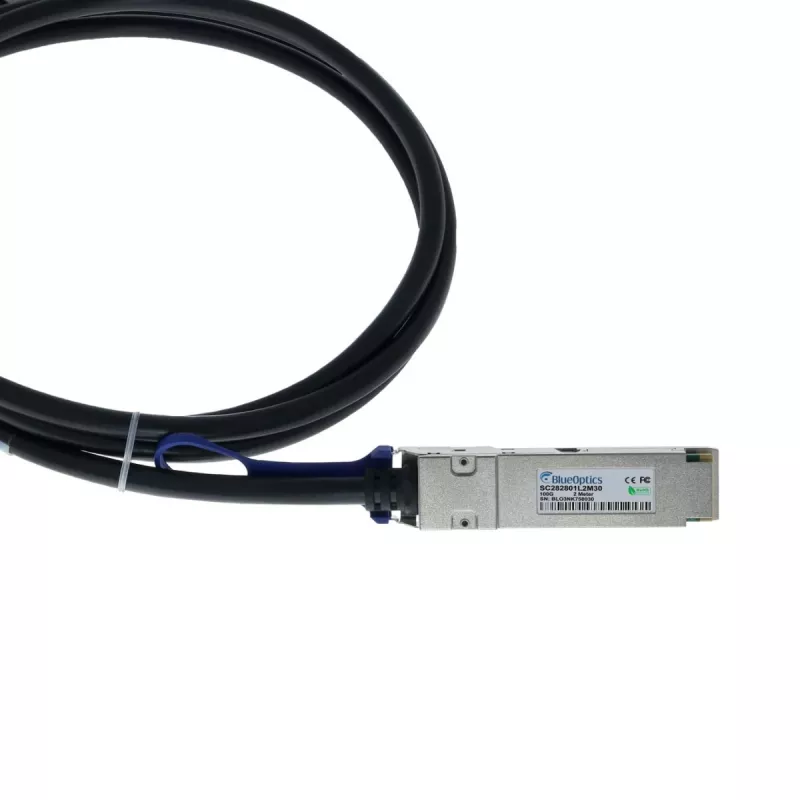

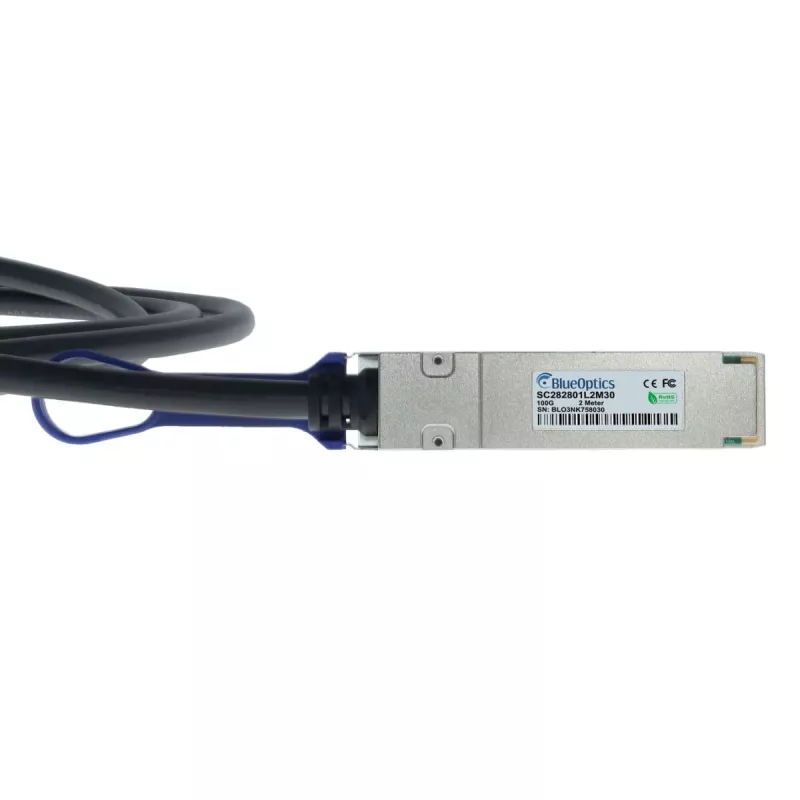

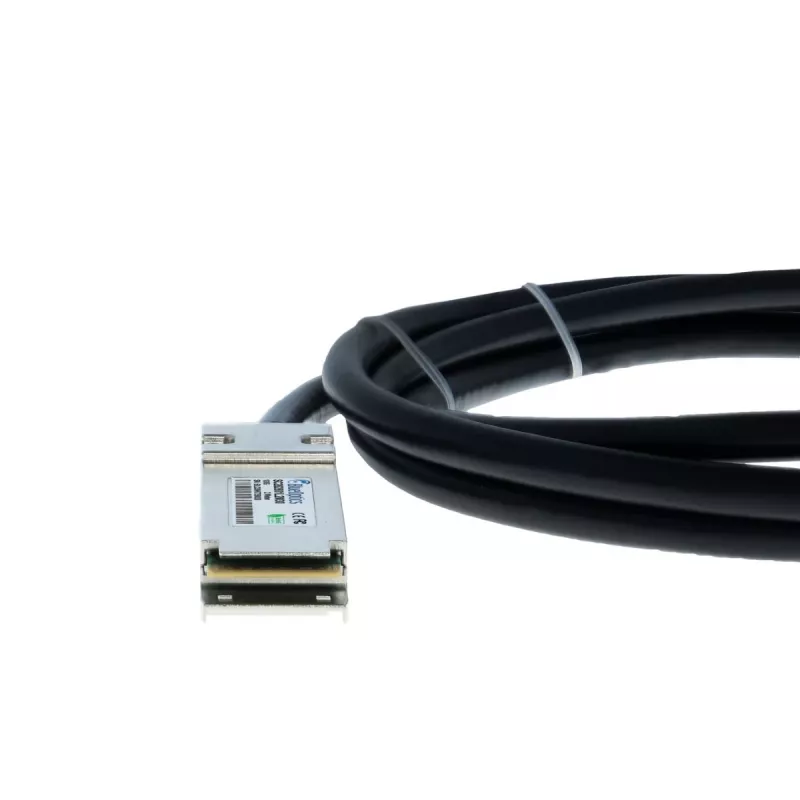

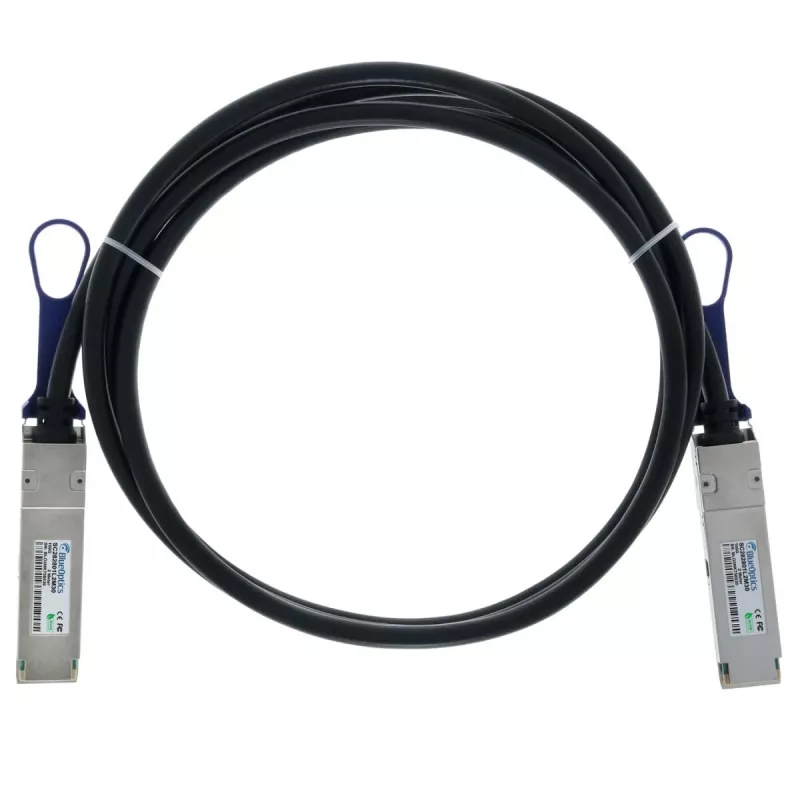

BlueOptics Ruckus kompatibilný 100G QSFP28 pasívny Direct Attach Copper kábel 3m (26 AWG) - BlueLAN DAC

The BlueOptics Ruckus 100G-QSFP-QSFP-P-0301 compatible BlueLAN DAC QSFP28 SC282801L3M26 is a high-performance, passive direct attach copper (DAC) cable designed for 100 Gigabit Ethernet and InfiniBand EDR/HDR applications. Engineered for seamless compatibility with Ruckus networking equipment, this cable delivers reliable, low-latency connectivity for data centers, high-performance computing (HPC), and enterprise networks.

Advantages

This DAC cable offers a cost-effective and energy-efficient solution for short-range 100G connections. With a length of 3 meters and 26 AWG gauge, it provides optimal signal integrity while consuming less than 0.5W of power. The passive design ensures zero latency and easy deployment without the need for external power. Hot-swappable QSFP28 connectors simplify installation and maintenance, reducing downtime.

Suitable for

• Data center interconnects (top-of-rack to server, spine-leaf)
• High-performance computing clusters
• Enterprise network backbone connections
• Ruckus networking equipment requiring 100G QSFP28 interfaces

Key specifications

• Data Rate: 100 Gbps
• Connector Type: QSFP28 to QSFP28
• Cable Type: Direct Attach Copper (DAC), Passive
• Cable Length: 3 meters (9.8 feet)
• Cable Gauge: 26 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Power Consumption: < 0.5W
• Compliance: RoHS, CE, FCC
• Vendor Specific Coding: Yes (for Ruckus compatibility)

Recommendations

For optimal performance, ensure your network equipment supports 100G QSFP28 ports and is configured for passive DAC cables. This cable is ideal for short-reach, high-bandwidth connections within racks or between adjacent racks. Always handle with care to avoid damage to connectors.
