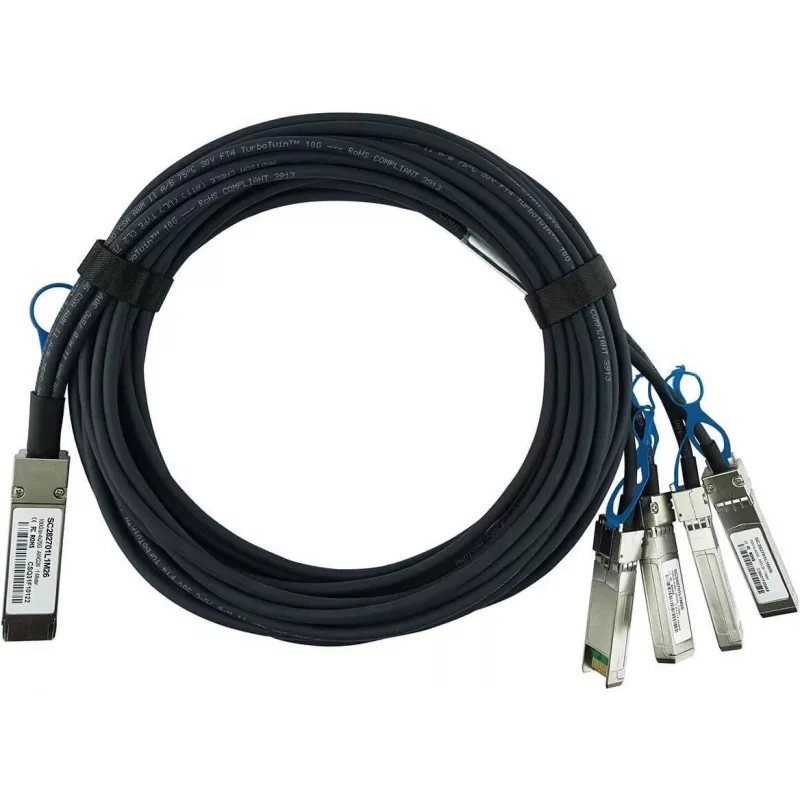

BlueOptics SC282701L2M26-BL InfiniBand breakout kábel 2m QSFP28 na 4x SFP28 Direct Attach Copper (DAC) pasívny čierny

The BlueOptics SC282701L2M26-BL is a high-performance InfiniBand breakout cable designed for demanding data center and high-performance computing (HPC) environments. This 2-meter passive Direct Attach Copper (DAC) cable features a QSFP28 male connector on one end and four SFP28 male connectors on the other, enabling seamless connectivity between 100GbE QSFP28 ports and four 25GbE SFP28 ports. It supports InfiniBand EDR and complies with SFF-8665 and SFF-8402 standards, ensuring reliable data transmission at aggregate speeds of up to 100 Gbps (25 Gbps per channel). The cable is hot-pluggable and comes in a sleek black color, making it ideal for high-density network setups.

Advantages

This breakout cable offers a cost-effective and efficient solution for splitting a high-speed QSFP28 port into four individual SFP28 connections. Its passive DAC design ensures low latency and zero power consumption, while the robust construction guarantees long-term durability. The cable is fully compatible with InfiniBand EDR and 100GBASE-CR4 standards, providing flexibility for various networking applications.

Suitable for

• High-Performance Computing (HPC) clusters
• Data center top-of-rack (ToR) to server connections
• Enterprise networking environments requiring high bandwidth
• InfiniBand EDR and 100GbE network infrastructures

Key specifications

• Cable Type: InfiniBand Breakout Cable
• Connector A: QSFP28 Male
• Connector B: 4x SFP28 Male
• Cable Length: 2 meters
• Aggregate Data Rate: 100 Gbps
• Per Channel Data Rate: 25 Gbps
• Cable Technology: Direct Attach Copper (DAC)
• Cable Configuration: Passive
• Color: Black
• Compatibility: InfiniBand EDR (Enhanced Data Rate)
• Hot-Pluggable: Yes
• Standards Compliance: SFF-8665 (QSFP28), SFF-8402 (SFP28)
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C

Recommendations

For optimal performance, ensure that both the QSFP28 and SFP28 ports are compatible with passive DAC cables. This cable is ideal for short-distance interconnects within racks or between adjacent racks. For longer distances, consider active optical cables (AOC) or fiber optic transceivers.
