BlueOptics SFP-10GERLC-T-BO sieťový transceiver modul 10000 Mbit/s 1550 nm

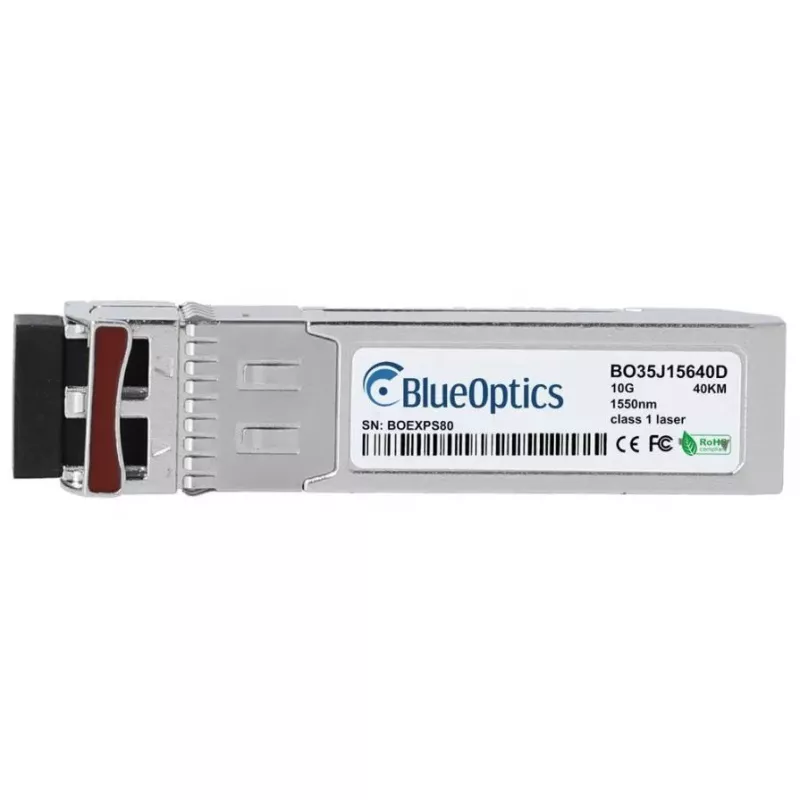

The BlueOptics SFP-10GERLC-T-BO is a compact fiber optic SFP transceiver module engineered for 10 Gbit/s optical links. Housed in a metal enclosure and weighing approximately 3 g, this module accepts a 3.3 V supply and uses a single‑mode optical interface with LC duplex connectivity to transmit and receive at 1550 nm. It is designed for installation in SFP ports of networking equipment that conform to standard SFP/MSA form factors and supports high‑speed data transport over long distances when used with appropriate single‑mode fiber cabling.

Advantages

The module provides 10 000 Mbit/s throughput in a low‑weight, metal package that aids mechanical durability and heat dissipation. Its SFP form factor and standard LC duplex optical connector enable straightforward hot‑plug installation into compatible switches, routers and storage interfaces. Operating from a 3.3 V input and complying with common SFP physical specifications, the transceiver integrates into existing single‑mode fiber infrastructures without requiring proprietary interfaces.

Suitable for (tasks / use cases)

Key specifications

How to use

Install the BlueOptics SFP-10GERLC-T-BO into an open SFP port while the host device supports SFP transceivers and the corresponding 10G protocols. Connect single‑mode fiber patch cords to the LC duplex connector, observing correct transmit/receive orientation. Ensure the host device firmware and operating system accept the SFP module and that power to the slot is within the specified 3.3 V range. After insertion, verify link status and data rates in the network device management interface; use appropriate optical patch panels or direct patching to other transceivers to complete the link.

Recommendations

Use low‑loss single‑mode fiber and high‑quality LC duplex patch cords rated for long‑reach transmission at 1550 nm. Verify that the target hardware supports 10 Gbit/s SFP transceivers and, if required, enable Digital Diagnostic Monitoring (DDM/DOM) in the host to monitor voltage, temperature, laser bias and optical power for proactive maintenance.
