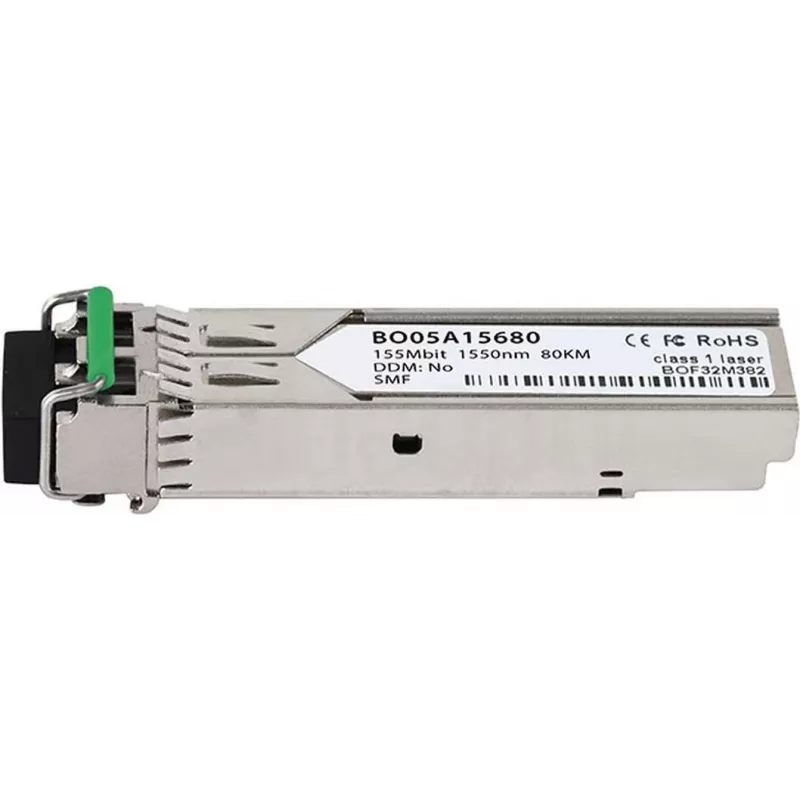

BlueOptics SFP-FE-LH80-SM1550-BO SFP transceiver modul 155 Mbit/s 1550 nm 80 km LC Duplex single-mode vlákno

The BlueOptics SFP-FE-LH80-SM1550-BO is a high-performance SFP (Small Form-Factor Pluggable) transceiver module designed for Fast Ethernet applications over single-mode fiber. It delivers reliable data transmission at 155 Mbit/s over distances up to 80 km using a 1550 nm wavelength. This module is MSA compliant and supports Digital Diagnostic Monitoring (DDM/DOM) for real-time performance monitoring. Ideal for long-haul network connections, it ensures seamless integration with a wide range of networking equipment.

Advantages

This transceiver offers exceptional reach and reliability for long-distance fiber optic links. Its hot-swappable design allows for easy installation and maintenance without network downtime. The built-in DDM/DOM provides valuable insights into operating parameters, aiding in proactive network management. With commercial-grade temperature tolerance (0°C to 70°C), it is suitable for standard indoor environments.

Suitable for

• Fast Ethernet (100BASE-BX) networks requiring long-distance connectivity
• Metropolitan area networks (MANs) and wide area networks (WANs)
• Telecommunications and ISP infrastructure
• Enterprise campus networks and data center interconnects

Key specifications

• Module Type: SFP
• Data Rate: 155 Mbit/s
• Wavelength: 1550 nm
• Fiber Type: Single-Mode Fiber (SMF)
• Maximum Distance: 80 km
• Connector Type: LC Duplex
• Transmitter: DFB Laser
• Receiver: APD
• DDM/DOM Support: Yes
• Hot-Swappable: Yes
• Operating Temperature: 0°C to 70°C
• Power Supply: 3.3V
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, pair this module with high-quality single-mode fiber patch cables and ensure compatibility with your switch or router's SFP slot. Always verify that the device supports 155 Mbit/s Fast Ethernet and 1550 nm wavelength. This module is a cost-effective solution for extending network reach without signal degradation.
