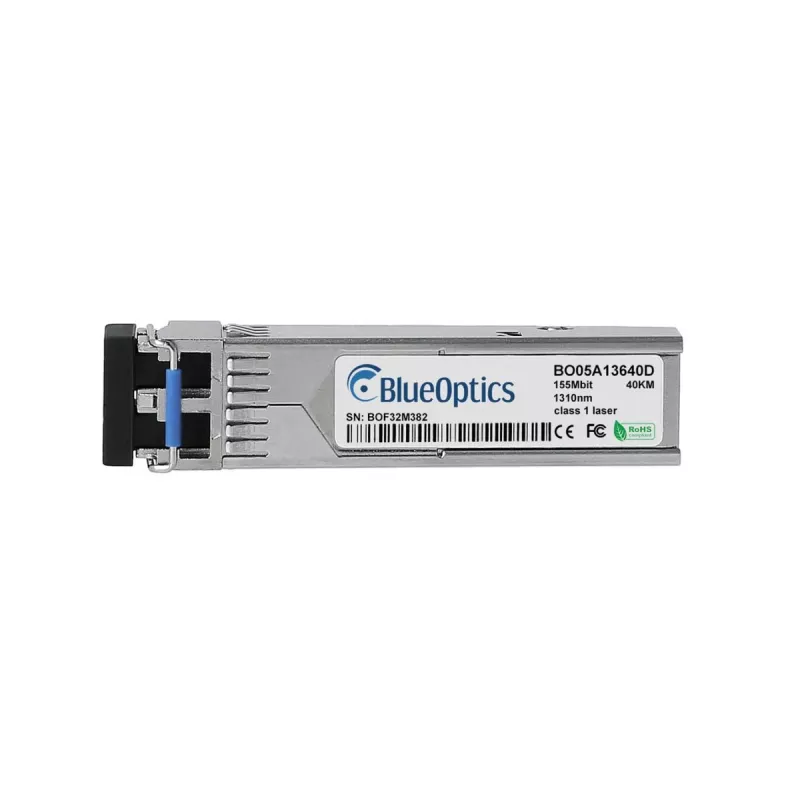

BlueOptics SFP transceiver 100BASE-FX 1310nm 2km LC kompatibilný s Ruckus E1MG-100FX-LR-OM

The BlueOptics SFP transceiver BO05A13640D is a high-performance, hot-pluggable module designed for Fast Ethernet networking. It is fully compatible with Ruckus E1MG-100FX-LR-OM equipment, ensuring seamless integration and reliable data transmission over multi-mode fiber at distances up to 2 km.

Advantages

This transceiver offers cost-effective connectivity for 100BASE-FX networks, with digital diagnostic monitoring (DDM) for real-time performance tracking. Its compact SFP form factor allows easy installation and scalability, while MSA compliance guarantees interoperability with a wide range of networking devices.

Suitable for

• Fast Ethernet (100BASE-FX) network upgrades and expansions
• Connecting switches, routers, and media converters in enterprise or data center environments
• Short to medium-range fiber optic links up to 2 km

Key specifications

• Form Factor: SFP
• Data Rate: 100 Mbps
• Ethernet Standard: 100BASE-FX
• Wavelength: 1310 nm
• Max Transmission Distance: 2 km
• Fiber Type: Multi-Mode Fiber (MMF)
• Connector Type: LC Duplex
• DDM/DOM Support: Yes
• Compatibility: Ruckus E1MG-100FX-LR-OM
• Hot-Pluggable: Yes
• Operating Temperature: 0°C to 70°C
• Power Supply Voltage: 3.3 V
• Power Consumption: < 1 W
• Transmitter Type: FP Laser
• Receiver Type: PIN Photo Detector
• Optical Transmit Power: -19 to -14 dBm
• Receiver Sensitivity: < -30 dBm
• Industry Compliance: MSA Compliant, RoHS, CE, FCC

Recommendations

For optimal performance, use with Ruckus compatible switches or routers. Ensure fiber patch cables are clean and properly terminated. This module is ideal for upgrading legacy 100BASE-FX networks or extending Fast Ethernet links over multi-mode fiber.
