BlueOptics simplexné optické patch kábel SC-UPC/SC-APC singlemode 1 meter

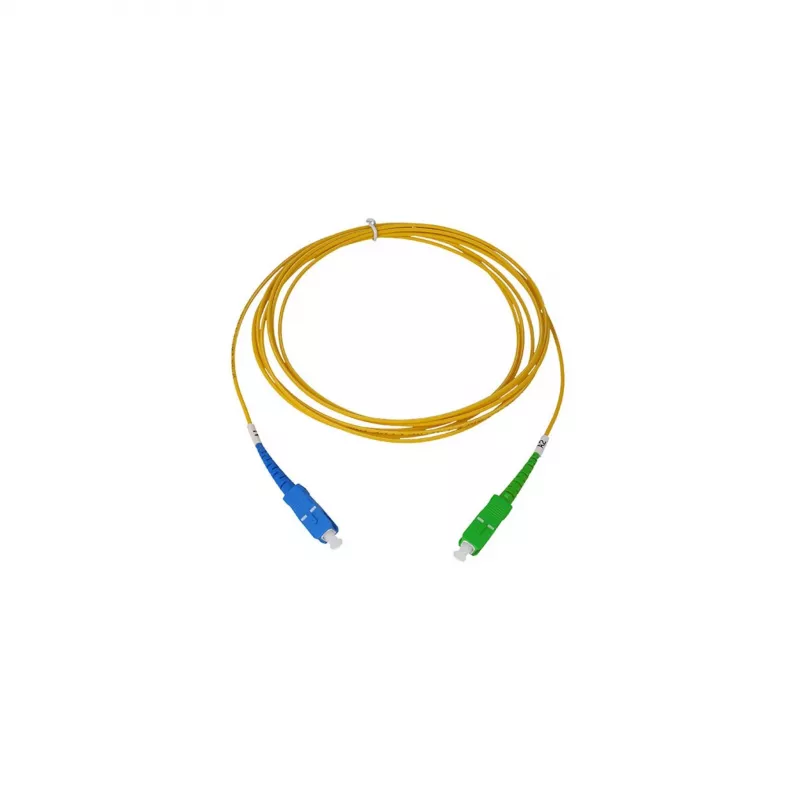

The BlueOptics Simplex Fibre Optic Patch Cable SC-UPC/SC-APC Singlemode 1 Metre is a high-performance, OS2-rated fibre optic patch cable designed for reliable singlemode connections in data centres, telecommunications, and enterprise networks. This cable features a SC/UPC connector on one end and a SC/APC connector on the other, ensuring low insertion loss and high return loss for optimal signal integrity.

Advantages

Engineered with premium zirconia ceramic ferrules and a 3.0 mm LSZH (Low Smoke Zero Halogen) jacket, this cable provides excellent durability and safety. The yellow jacket colour enables easy identification of singlemode cables, while the simplex configuration is ideal for point-to-point links. With typical insertion loss below 0.3 dB and return loss exceeding 50 dB (UPC) and 60 dB (APC), it guarantees superior performance for high-speed data transmission.

Suitable for

• Fibre optic network installations requiring SC/UPC to SC/APC connectivity
• Singlemode OS2 applications in data centres, telecom rooms, and FTTH
• High-bandwidth links up to 10 Gbps and beyond
• Indoor environments where LSZH jacket is required for safety

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fibre Type: Singlemode (SM) OS2
• Connector A: SC/UPC
• Connector B: SC/APC
• Cable Length: 1 Metre
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Cable Diameter: 3.0 mm
• Insertion Loss (typical): < 0.3 dB
• Return Loss (SC/UPC): > 50 dB
• Return Loss (SC/APC): > 60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Ferrule Material: Zirconia Ceramic
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Compliance: RoHS, CE, TIA/EIA, IEC

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is ideal for use with BlueOptics transceivers and other singlemode equipment. Always handle fibre optic cables with care to avoid damage.
