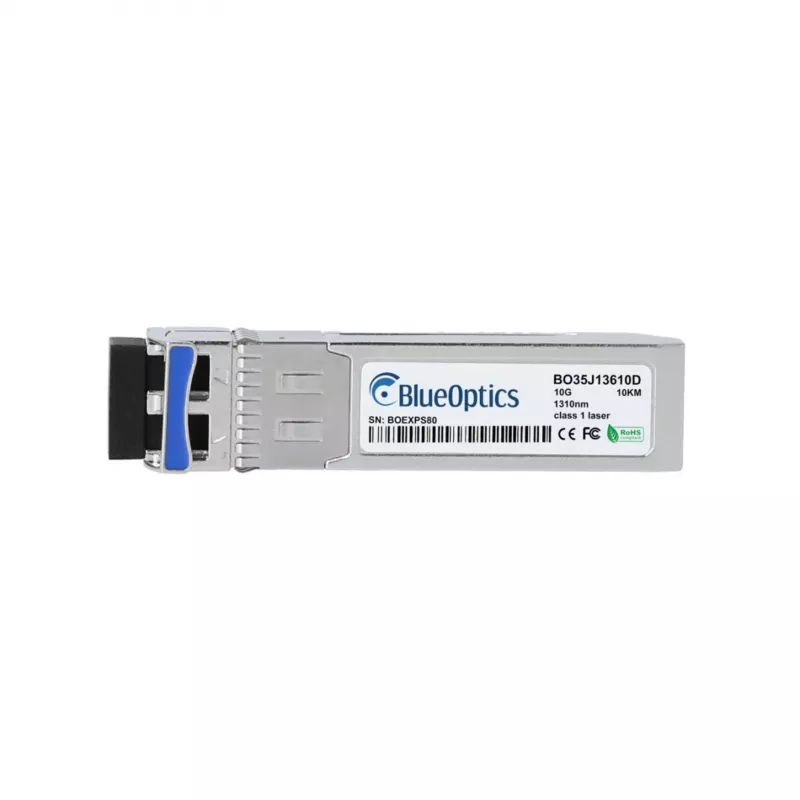

BLUEOPTICS TL-SM5110-LR-BO SFP+ transceiver modul 10GBASE-LR 10 km 1310 nm LC Single-Mode

The BLUEOPTICS TL-SM5110-LR-BO is a high-performance SFP+ transceiver module designed for 10 Gigabit Ethernet applications. It is fully compatible with TP-Link TL-SM5110-LR and offers reliable, long-distance connectivity over single-mode fiber.

Advantages

This module provides a cost-effective, hot-pluggable solution for 10 Gbps data transmission up to 10 km. It supports Digital Diagnostic Monitoring (DDM/DOM) for real-time performance monitoring, ensuring network stability and ease of troubleshooting.

Suitable for

• 10 Gigabit Ethernet networks requiring long-range single-mode fiber connections
• Data centers, enterprise networks, and telecommunications
• Upgrading existing SFP+ ports to 10GBASE-LR standard

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Wavelength: 1310 nm
• Maximum Distance: 10 km (6.2 miles)
• Fiber Type: Single-Mode Fiber (SMF)
• Connector: LC Duplex
• Standard: 10GBASE-LR, IEEE 802.3ae
• Hot-Pluggable: Yes
• DDM/DOM Support: Yes
• Power Consumption: < 1W
• Operating Temperature: 0°C to 70°C

Recommendations

For optimal performance, use with single-mode fiber patch cables and ensure compatibility with your network equipment. This module is an ideal replacement or upgrade for TP-Link TL-SM5110-LR compatible systems.
