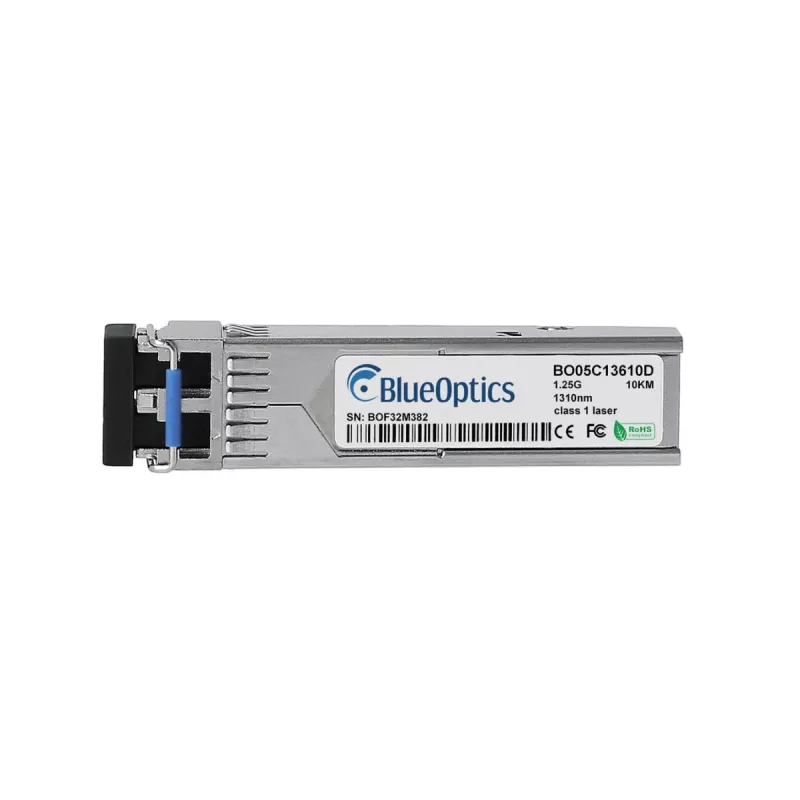

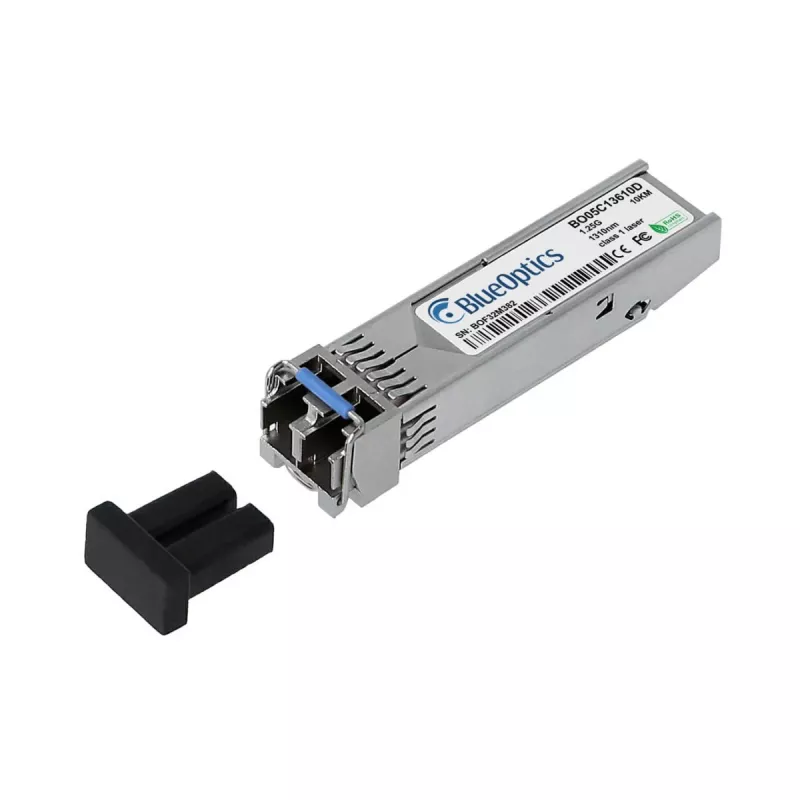

BlueOptics TP-Link ISM311LS kompatibilný SFP transceiver, 1000BASE-LX, Singlemode vlákno, 1310nm, 10km

The BlueOptics BO05C13610D SFP transceiver is a high-performance, cost-effective solution designed for 1000BASE-LX Gigabit Ethernet applications. It is fully compatible with TP-Link ISM311LS switches and routers, ensuring seamless integration into existing network infrastructures. This transceiver operates on singlemode fiber (SMF) at a wavelength of 1310nm, supporting distances up to 10km. With hot-pluggable capability and Digital Diagnostic Monitoring (DDM/DOM), it provides real-time performance monitoring for reliable network operations.

Advantages

This SFP module offers a perfect balance of performance and affordability. It is MSA compliant and RoHS certified, guaranteeing interoperability and environmental safety. The low power consumption (<1.0W) helps reduce energy costs, while the wide operating temperature range (0°C to 70°C) ensures stable operation in various environments. The LC duplex connector provides a secure and easy connection.

Suitable for

• Gigabit Ethernet networks requiring long-distance fiber connectivity
• Data centers, enterprise LANs, and telecommunications
• Fiber Channel applications
• Upgrading or expanding existing TP-Link network equipment

Key specifications

• Transceiver Type: SFP
• Data Rate: 1.25 Gbps
• Ethernet Standard: 1000BASE-LX
• Wavelength: 1310 nm
• Fiber Type: Singlemode (OS2)
• Max Distance: 10 km
• Connector: LC Duplex
• DDM/DOM: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: <1.0 W
• Compliance: MSA, RoHS

Recommendations

For optimal performance, use with singlemode fiber patch cables (OS2) and ensure proper cleaning of fiber connectors. This transceiver is a direct replacement for the TP-Link ISM311LS and is backed by BlueOptics' quality assurance.
