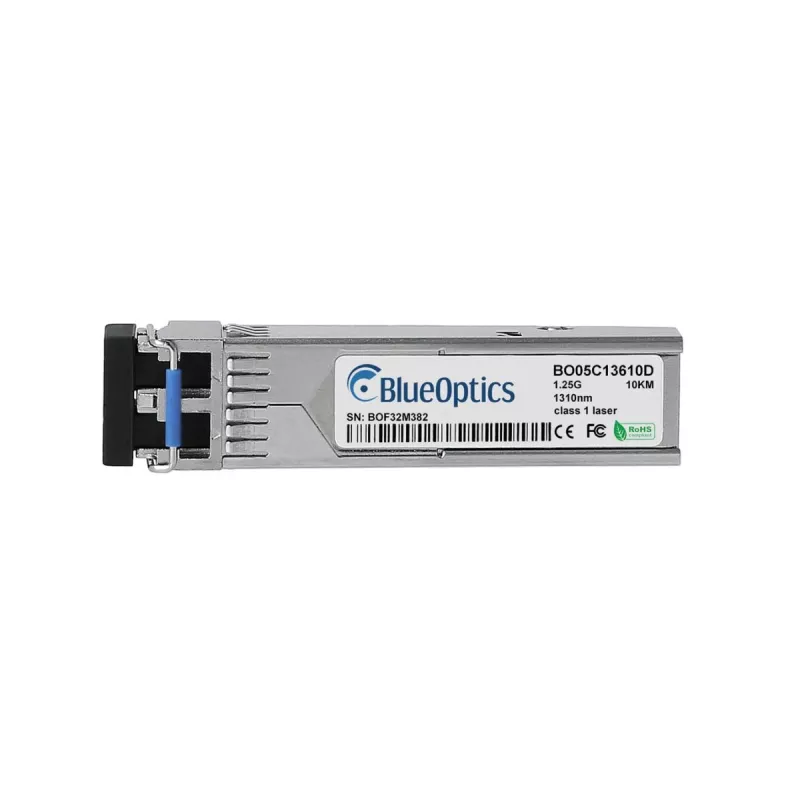

BlueOptics TP-Link SM311LS BO05C13610D SFP transceiver, 1000BASE-LX, Singlemode vlákno, 1310nm, 10km

The BlueOptics BO05C13610D SFP transceiver is a high-performance, cost-effective solution designed for Gigabit Ethernet applications over singlemode fiber. It is fully compatible with TP-Link SM311LS and other standard SFP ports, delivering reliable 1000BASE-LX connectivity at distances up to 10 km.

Advantages

This transceiver offers seamless integration with TP-Link networking equipment, ensuring optimal performance and compatibility. It supports Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of operating parameters, and its hot-pluggable design allows for easy installation and maintenance without powering down the system.

Suitable for

• Gigabit Ethernet connections in enterprise and data center networks
• Long-distance fiber optic links up to 10 km
• TP-Link switches, routers, and media converters with SFP slots
• Singlemode fiber infrastructure

Key specifications

• Transceiver Type: SFP
• Data Rate: 1.25 Gbps
• Ethernet Standard: 1000BASE-LX
• Wavelength: 1310 nm
• Max. Reach: 10 km
• Fiber Type: Singlemode (OS2)
• Connector: LC Duplex
• Compatibility: TP-Link SM311LS
• DDM/DOM Support: Yes
• Hot-Swappable: Yes
• Transmitter: FP Laser
• Receiver: PIN Photodiode
• Power Supply: 3.3V
• Power Consumption: < 1W (Typical)
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC
• Duplex Mode: Full Duplex
• Protocol: Gigabit Ethernet

Recommendations

For optimal performance, use with singlemode fiber optic cables terminated with LC connectors. Ensure the SFP slot supports standard SFP modules. This transceiver is an ideal replacement for OEM TP-Link SM311LS modules.
