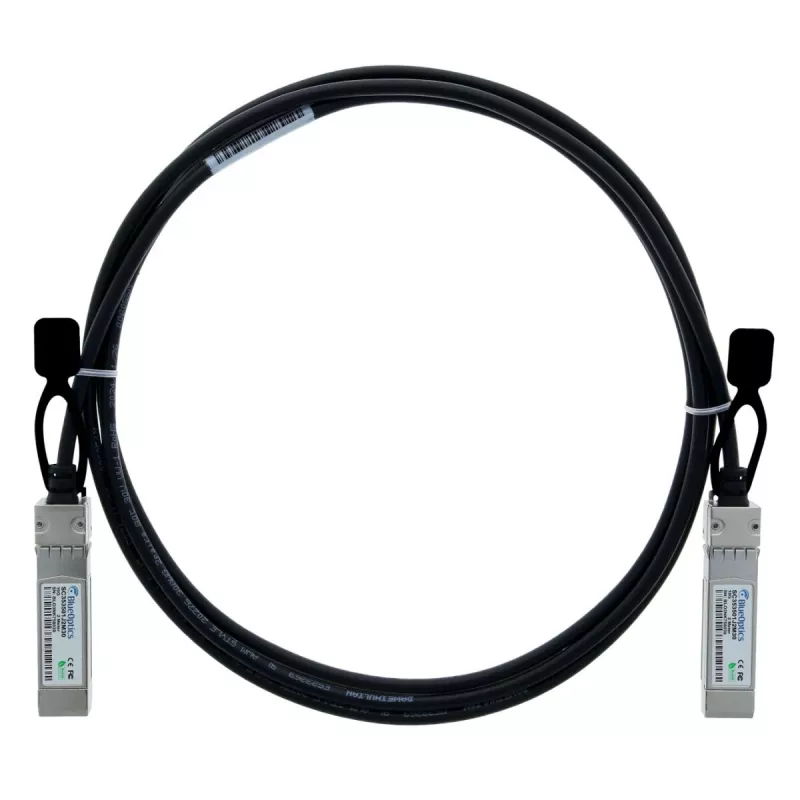

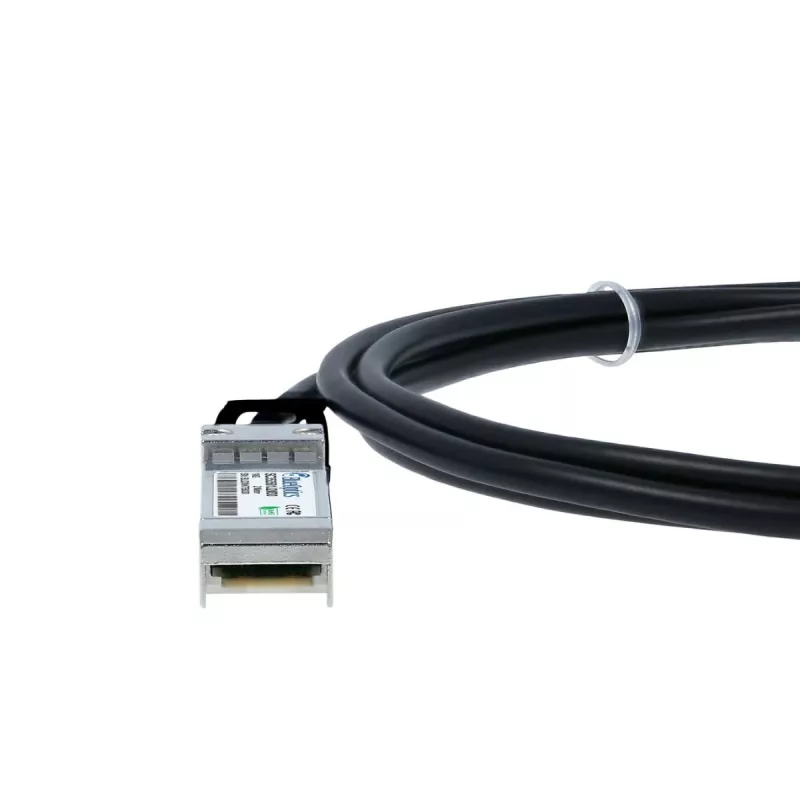

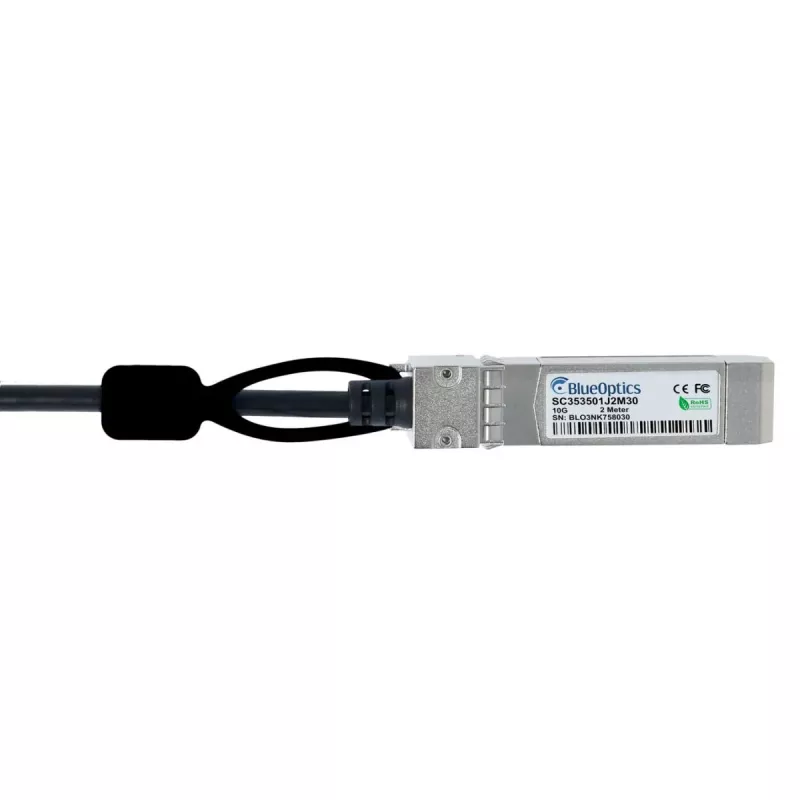

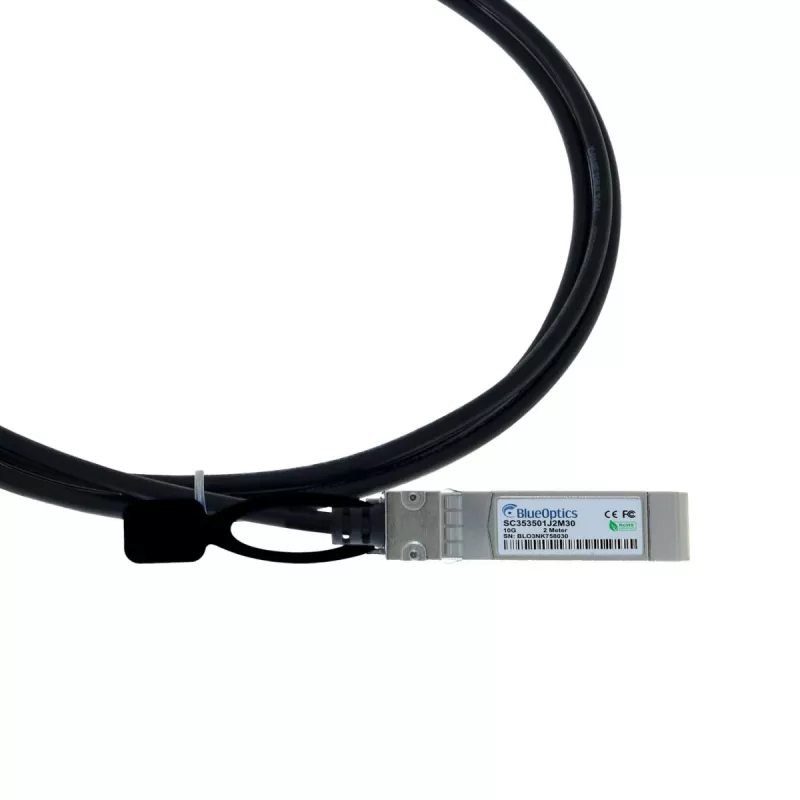

BlueOptics TP-Link SM5220-2M BlueLAN 10GBASE-CR pasívny SFP+ na SFP+ Direct Attach kábel, 2 metre

The BlueOptics TP-Link SM5220-2M BlueLAN 10GBASE-CR Passive SFP+ to SFP+ Direct Attach Cable (DAC) is a high-performance, cost-effective solution for short-range 10 Gigabit Ethernet connections. Designed for compatibility with TP-Link SM5220-2M modules and MSA-compliant SFP+ ports, this passive twinax copper cable delivers reliable 10 Gbps data transmission over a 2-meter length with ultra-low latency and zero power consumption.

Advantages

This passive DAC cable offers several key benefits: no power consumption (0W), hot-swappable design for easy installation, and a durable PVC jacket for long-lasting performance. It is an ideal choice for data centers, server rooms, and storage area networks (SAN) where high-speed, low-cost interconnects are required.

Suitable for

• Data center top-of-rack (ToR) and end-of-row (EoR) connections
• Server to switch links in 10GbE networks
• Storage Area Network (SAN) and Network Attached Storage (NAS) connectivity
• High-performance computing clusters

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Length: 2 Meter
• Data Rate: 10 Gbps
• Connector Type (End A): SFP+
• Connector Type (End B): SFP+
• Cable Type: Twinax Copper
• Active/Passive: Passive
• Technology Standard: 10GBASE-CR
• Compatibility: TP-Link SM5220-2M, MSA Compliant SFP+ ports
• Hot Swappable: Yes
• Power Consumption: 0W (Passive)
• Impedance: 100 Ohm
• Wire Gauge (AWG): 28 AWG
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Certifications: CE, FCC, RoHS
• Protocol Support: Ethernet, Fibre Channel
• Latency: Ultra-low

Recommendations

For optimal performance, ensure that both connected devices support SFP+ interfaces and 10GBASE-CR standard. This cable is a direct replacement for OEM TP-Link SM5220-2M and is fully MSA compliant. Ideal for short-distance, high-speed interconnects within racks or between adjacent racks.
