BlueOptics TP-Link SM9110-SR4 BO28L859S1D QSFP28 transceiver, 100GBASE-SR4, multimódové vlákno, 4x850nm, 100 metrov

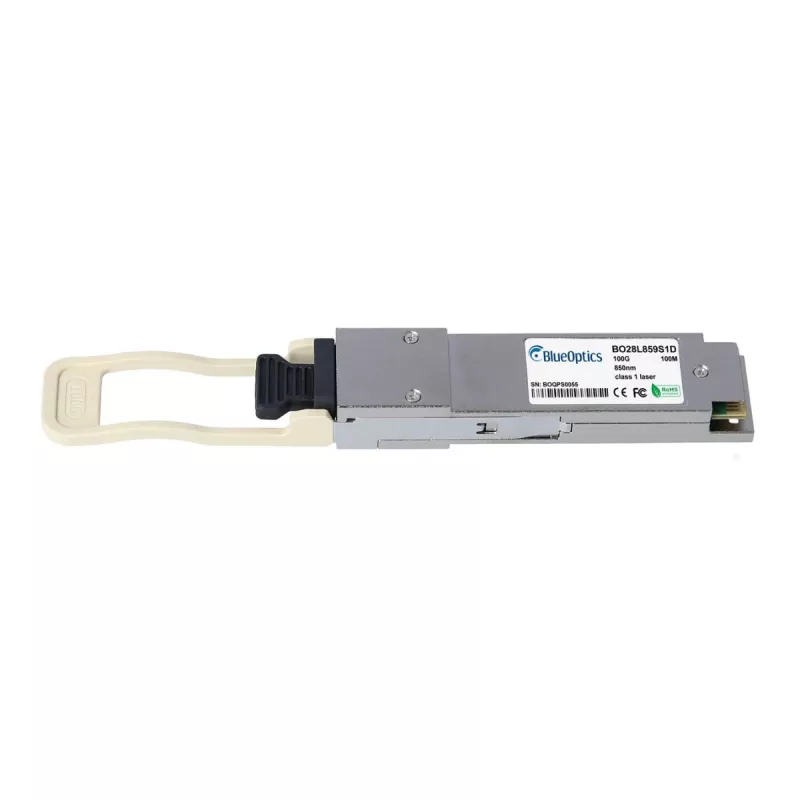

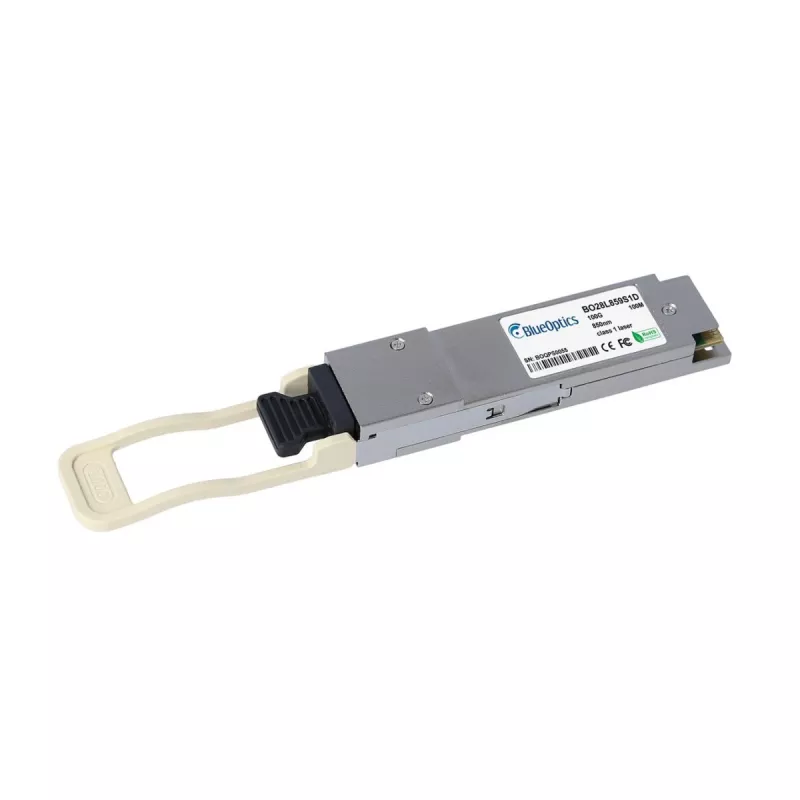

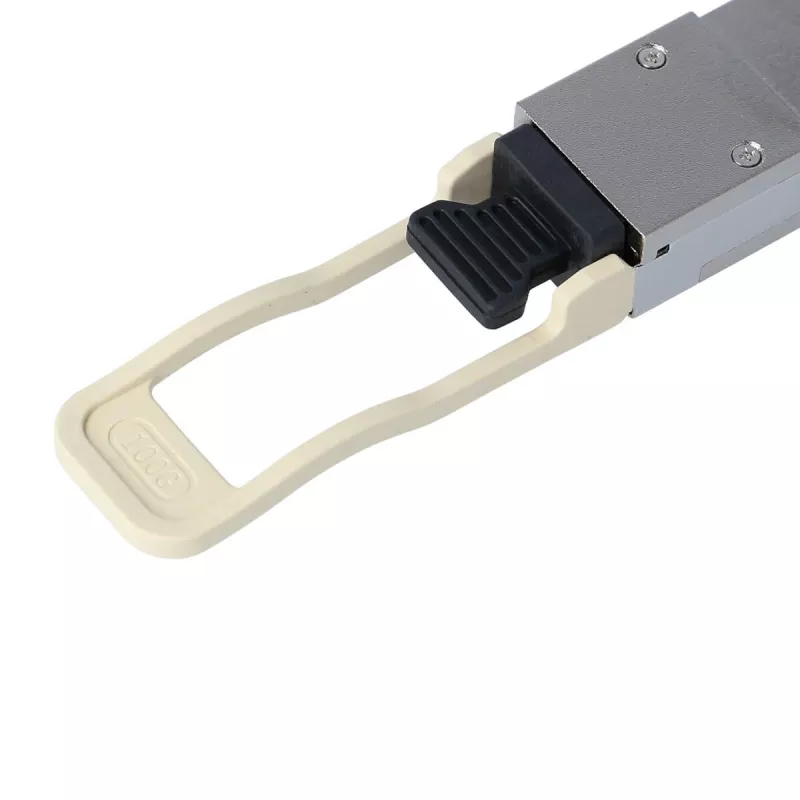

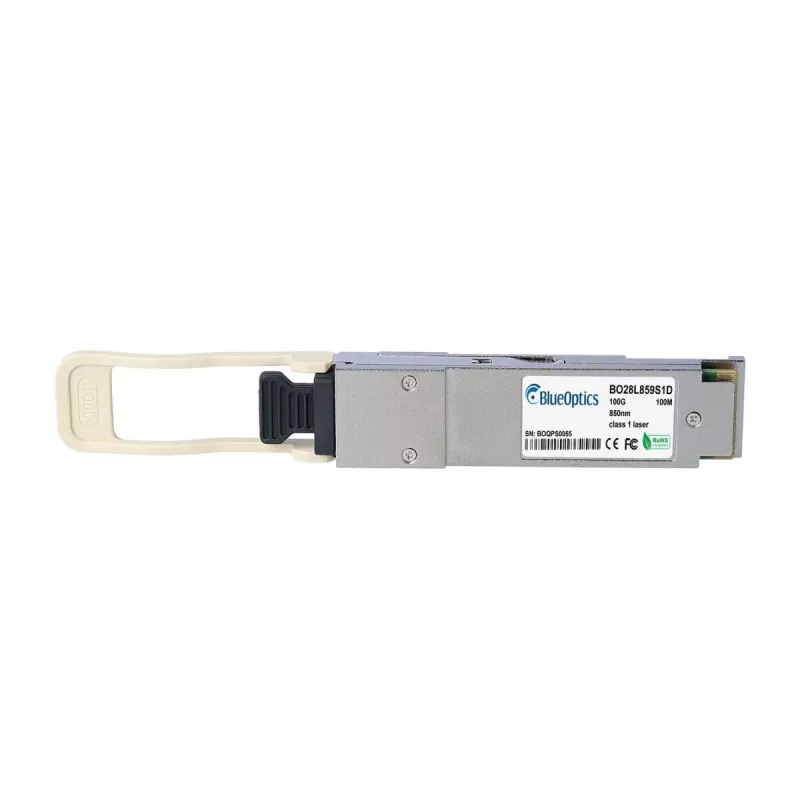

The BlueOptics BO28L859S1D is a high-performance QSFP28 transceiver designed for 100 Gigabit Ethernet networks. It is fully compatible with TP-Link SM9110-SR4 equipment and delivers reliable connectivity over multimode fiber.

Advantages

This transceiver offers a cost-effective alternative to OEM modules without compromising performance. It supports hot-plugging, DDM/DOM for real-time monitoring, and low power consumption under 3.5W, making it ideal for high-density data center environments.

Suitable for

• Data centers requiring 100G connectivity
• Enterprise networks upgrading to 100GBASE-SR4
• TP-Link SM9110-SR4 compatible systems

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-SR4
• Fiber Type: Multimode Fiber (MMF)
• Wavelength: 4x 850 nm
• Max Reach: 100 meters
• Connector Type: MPO/MTP-12
• DDM/DOM Support: Yes
• Hot-Pluggable: Yes
• Transmitter Type: VCSEL
• Receiver Type: PIN Photo Diode
• Power Supply: 3.3 V
• Operating Temperature: 0°C to 70°C
• MSA Compliance: SFF-8665
• Duplex Mode: Full-duplex
• Number of Lanes: 4 Transmit, 4 Receive
• Power Consumption: < 3.5 W (Typical)

Recommendations

For optimal performance, use with OM4 multimode fiber and ensure proper MPO connector cleaning. This module is a direct replacement for TP-Link SM9110-SR4.
