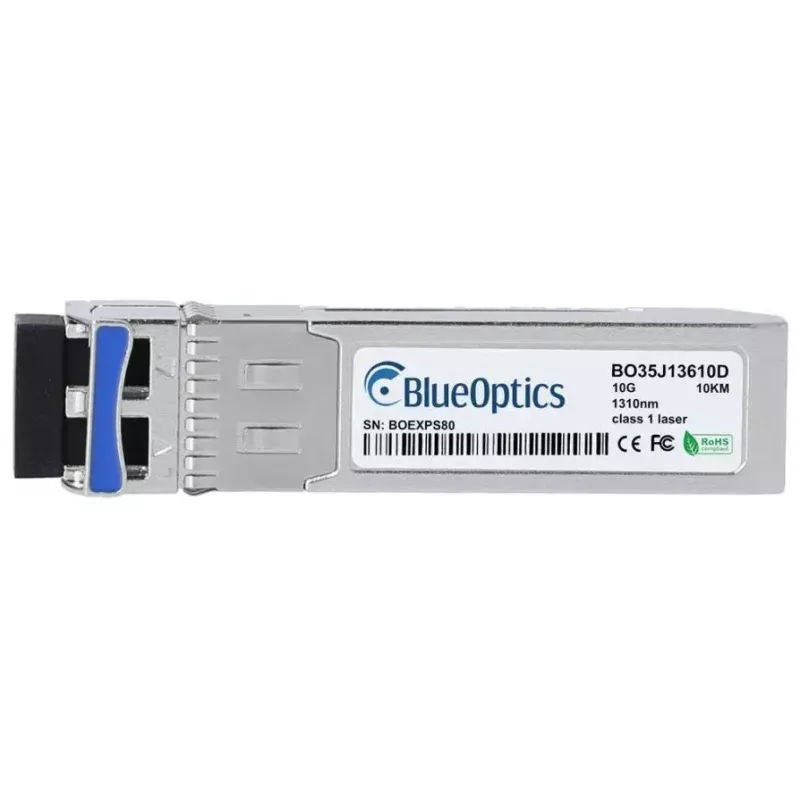

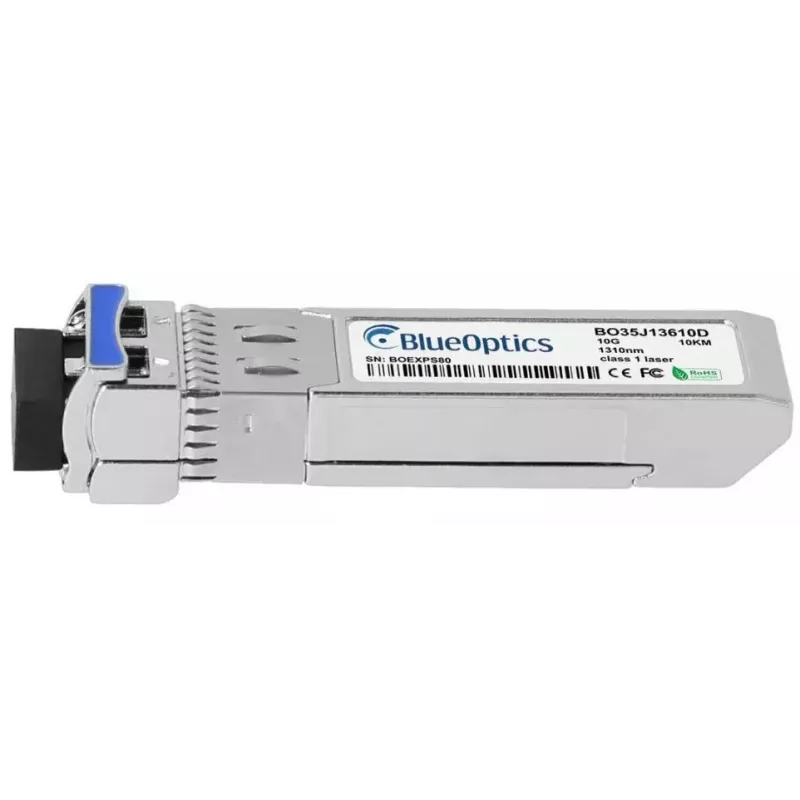

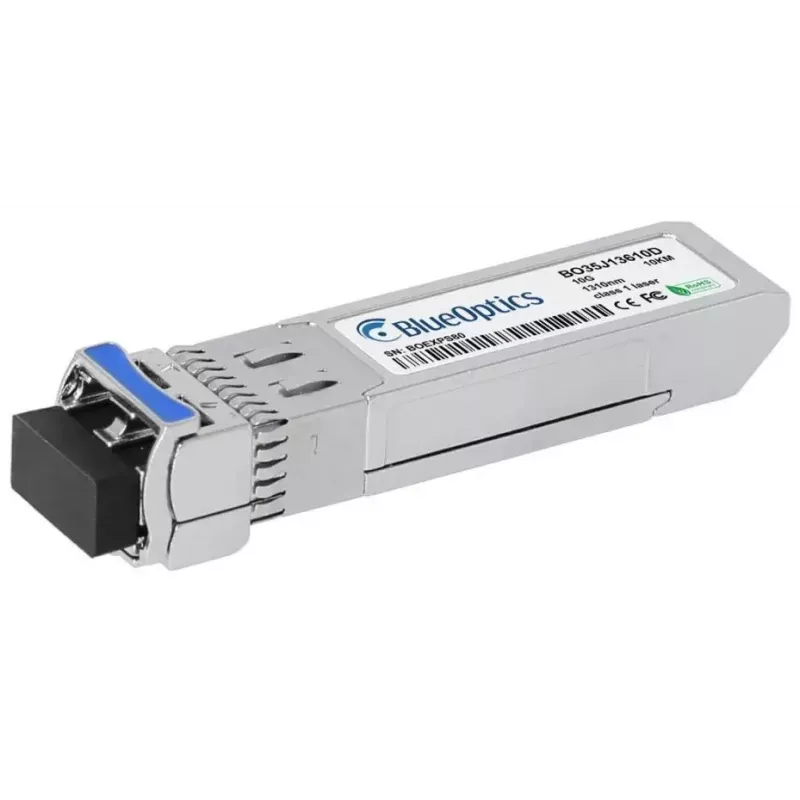

BlueOptics X6604A-BO sieťový transceiver modul sklenené vlákno 10000 Mbit/s SFP+ 1310 nm

The BlueOptics X6604A-BO is a fiber optic SFP+ transceiver module designed for 10 Gbit/s (10000 Mbit/s) optical links. It operates at a 1310 nm wavelength and is built for single-mode fiber applications where low weight and RoHS compliance are required. The module uses an SFP+ interface and a duplex LC-style optical connection to transmit and receive signals over long distances with stable optical performance.

Advantages

The module provides a compact, standardized form factor compatible with equipment that accepts SFP+ transceivers. At 10000 Mbit/s and 1310 nm wavelength it supports high-speed optical Ethernet and other protocols over single-mode fiber while remaining lightweight (approx. 20 g) and RoHS-compliant. The design follows MSA-aligned mechanical and electrical specifications to ensure predictable interoperability and straightforward physical installation.

Suitable for

Key specifications

How to use

Install the BlueOptics X6604A-BO into a compatible SFP+ slot on the host device following the device manufacturer’s procedures: power down or use hot-swap capability if supported, insert the transceiver until it latches, and connect single-mode LC duplex fiber patch cords with correct polarity. After insertion, verify link status and SFP+ negotiation through the host equipment's management interface and confirm the expected 10 Gbit/s operational state. If digital diagnostic monitoring (DDM/DOM) is supported by the host, enable or view diagnostics to monitor optical parameters.

Recommendations

Use high-quality single-mode LC duplex patch cords, maintain correct fiber polarity, and verify that the host hardware supports SFP+ 10G modules and the 1310 nm wavelength. Ensure handling and installation in clean conditions to avoid contaminating fiber connectors; use dust caps when the transceiver is not connected. Check that any DDM/DOM features required for monitoring are supported by your equipment before relying on remote diagnostics.
