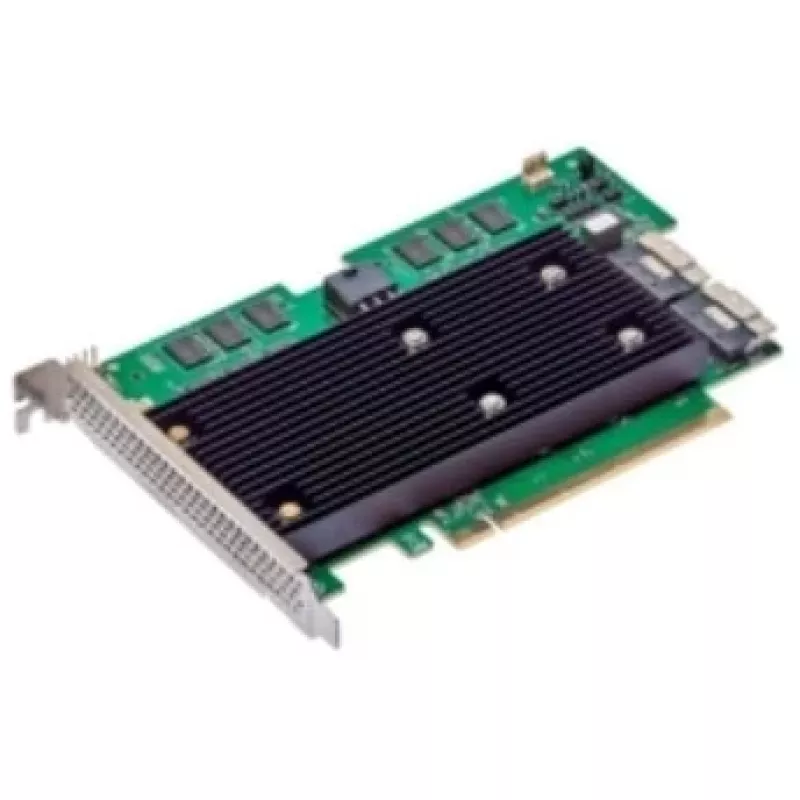

Broadcom MegaRAID 9670-24i - Storage Controller (RAID) - 24 portov/kanálov - SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - RAID 0, 1, 10, 5, 50, 6, 60 - PCIe 4.0 x8 (05-50123-00)

The Broadcom MegaRAID 9670-24i is a high-performance storage controller designed for demanding enterprise environments. It supports both SAS and SATA drives, offering flexible connectivity with 24 ports and advanced RAID configurations to ensure data integrity and speed.

Key features

• 24 ports/channel supporting SAS (24Gb/s) and SATA (6Gb/s) interfaces for versatile storage integration
• PCIe 4.0 x8 host interface for high-bandwidth data transfer and NVMe support
• RAID levels 0, 1, 10, 5, 50, 6, and 60 for comprehensive data protection and performance optimization
• Data transfer rate up to 6 Gbit/s for SATA and 24 Gbit/s for SAS connections
• MD2 form factor with compact dimensions (155.7 mm width, 111.2 mm depth) for easy server integration
• Low power consumption of 24 W in standard operation, enhancing energy efficiency
• Compatible with SUSE Linux Enterprise Server and other enterprise operating systems
