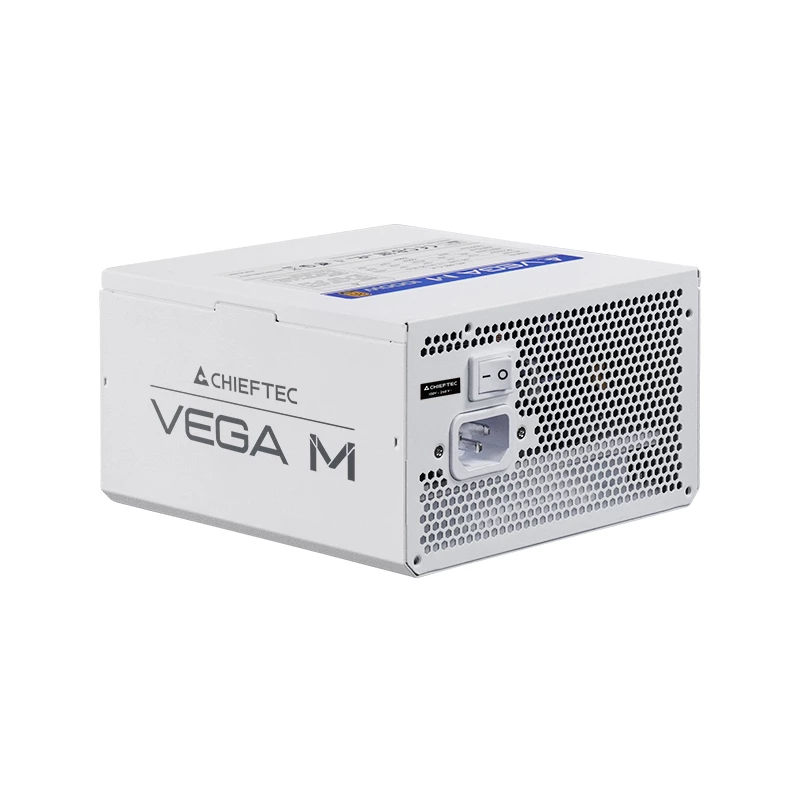

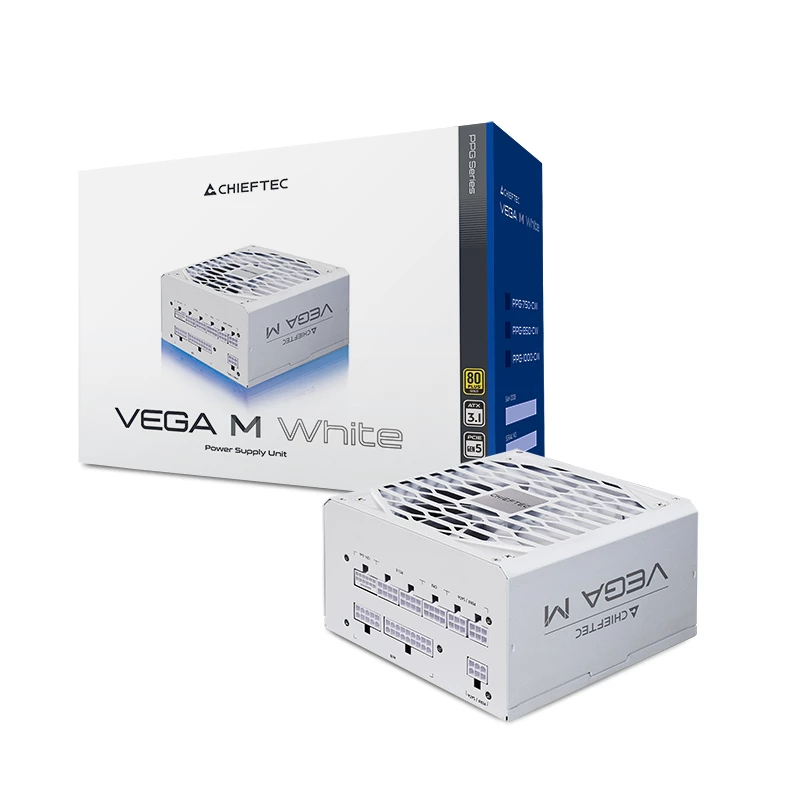

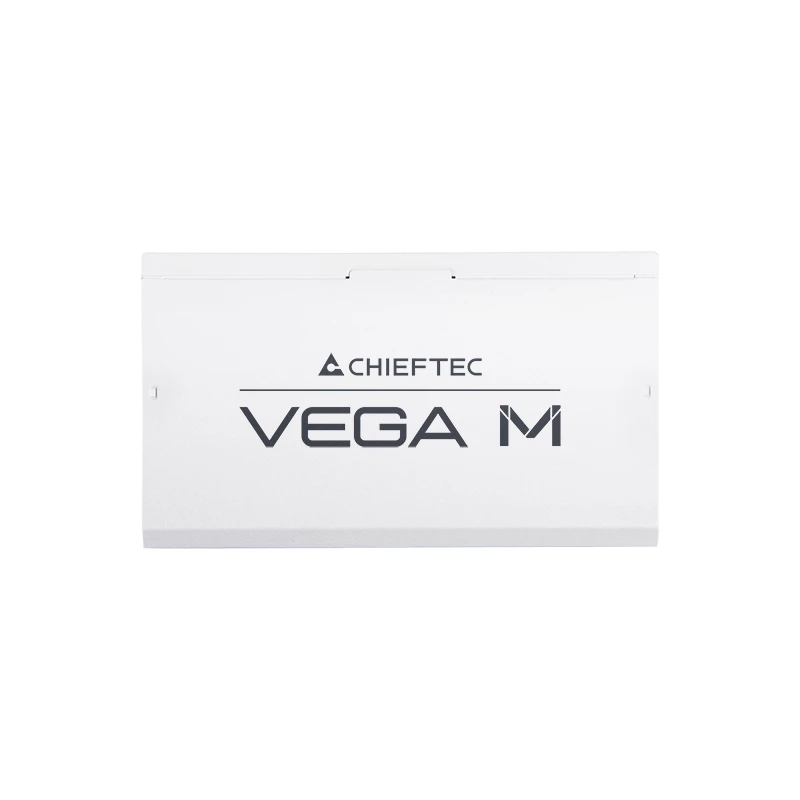

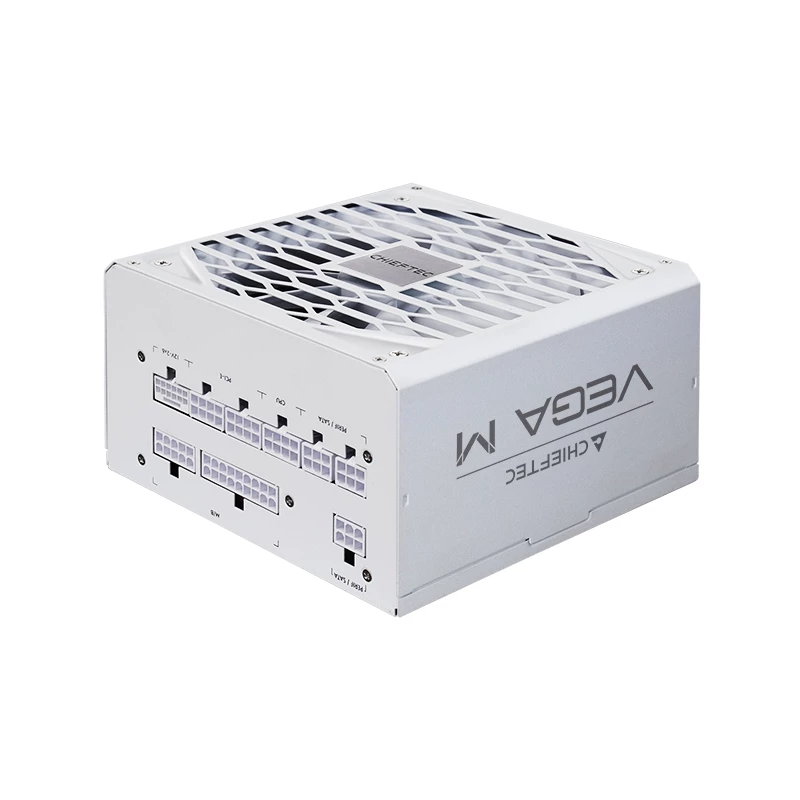

Chieftec Vega PPG-1000-CW napájací zdroj 1000 W 24-pin ATX ATX biely

The Chieftec Vega PPG-1000-CW is a 1000 W ATX power supply unit designed for desktop PCs. It provides a single 24-pin ATX motherboard power connector, supports input voltages from 100 to 240 V at 50/60 Hz, and is 80 PLUS Gold certified for high efficiency. The unit uses an active cooling solution with a 135 mm fan and comes in a white finish. Cable lengths for SATA power connectors are in the 150–400 mm range.

Advantages

The Vega PPG-1000-CW delivers stable 1000 W output suitable for high-power systems while maintaining efficient energy conversion thanks to its 80 PLUS Gold certification. A 135 mm active fan ensures effective thermal management, and the 24-pin ATX connector ensures compatibility with standard motherboards. The white housing fits cases where a lighter aesthetic is desired.

Suitable for

• High-performance gaming PCs
• Workstations with demanding power requirements
• System builds requiring an 80 PLUS Gold efficient PSU
• Cases where a white PSU complements the build aesthetics

Key specifications

• Total power: 1000 W

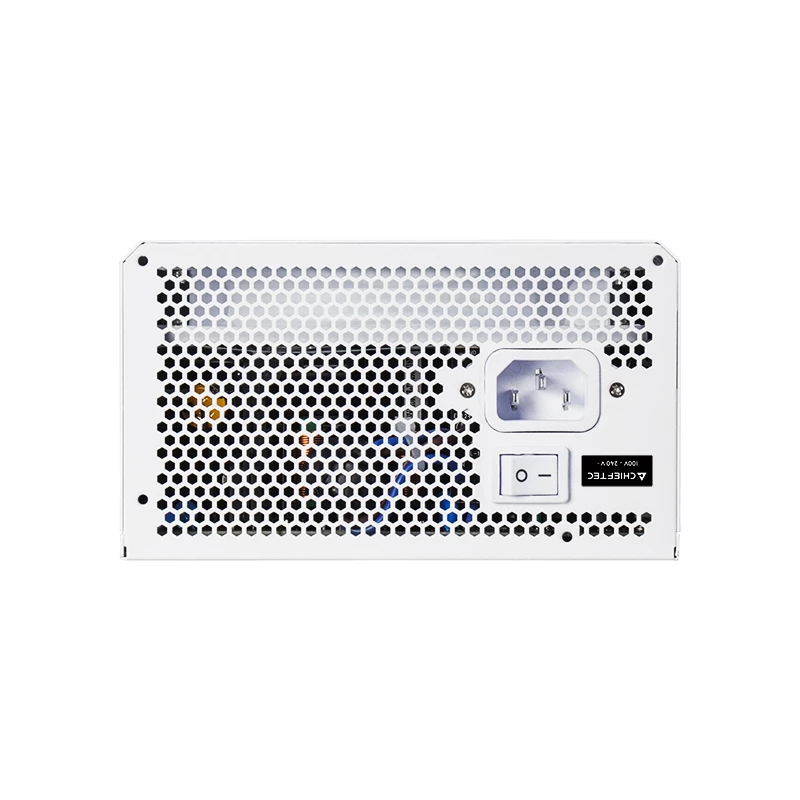

• Input voltage: 100–240 V, 50/60 Hz
• Motherboard power connector: 24-pin ATX
• 80 PLUS certification: 80 PLUS Gold

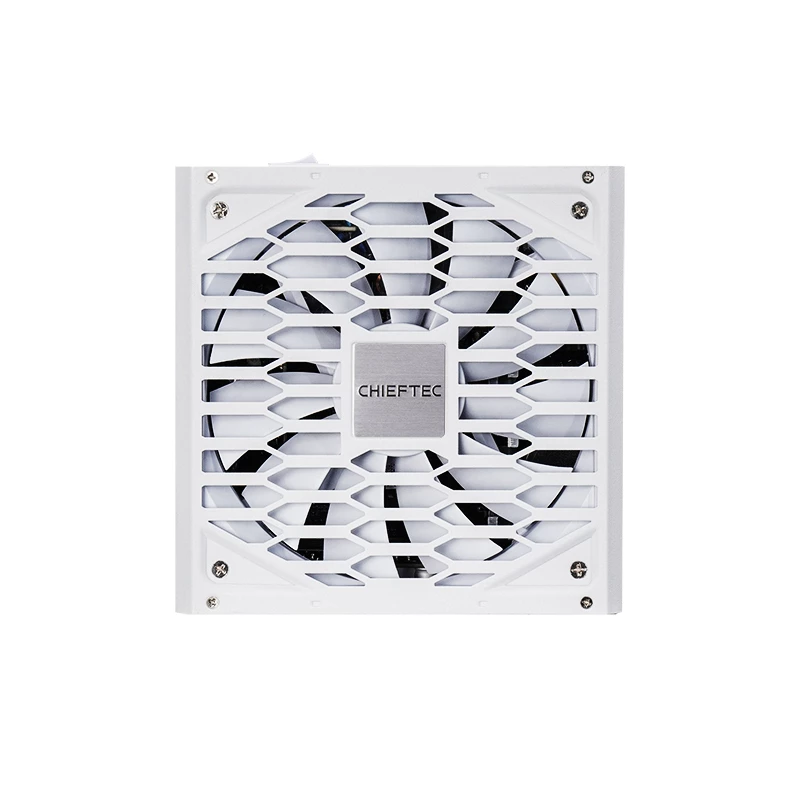

• Fan diameter: 135 mm (active cooling)
• Product colour: White

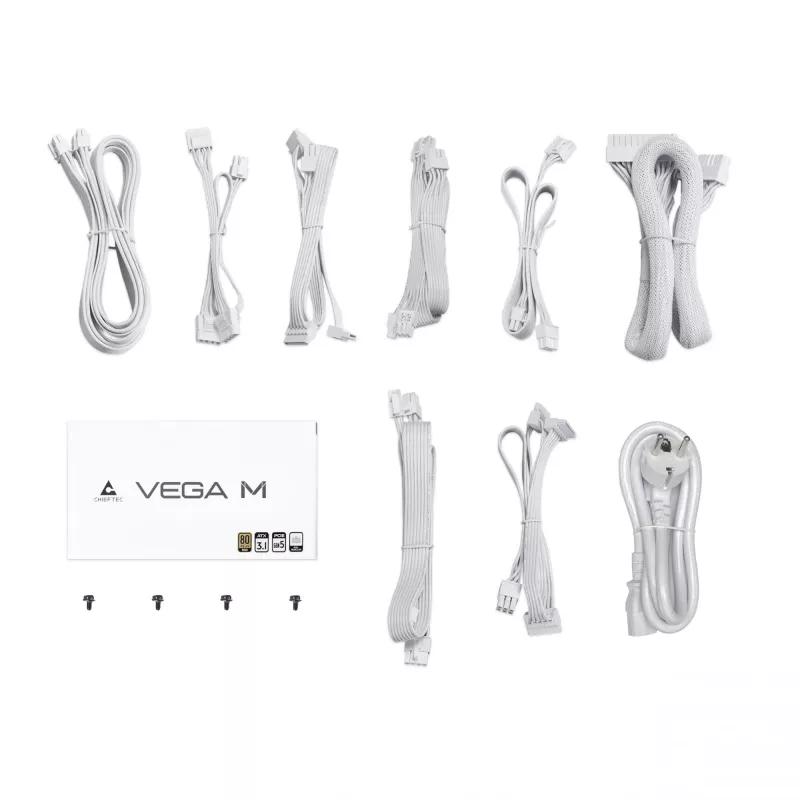

• SATA power cable length: 150–400 mm

How to use

Install the Chieftec Vega PPG-1000-CW into a compatible ATX case following standard PSU mounting procedures. Connect the 24-pin ATX connector to the motherboard and route SATA and peripheral cables to your drives and devices. Ensure the input voltage selector (if present) or your mains supply matches 100–240 V and secure all connections before powering on the system. Allow adequate airflow in the case to support the PSU's 135 mm fan.

Recommendations

For reliable operation, use the PSU within its rated 1000 W capacity, keep internal case temperatures low with proper ventilation, and periodically check cable connections. Match the unit with components that do not exceed its power and connector specifications.
