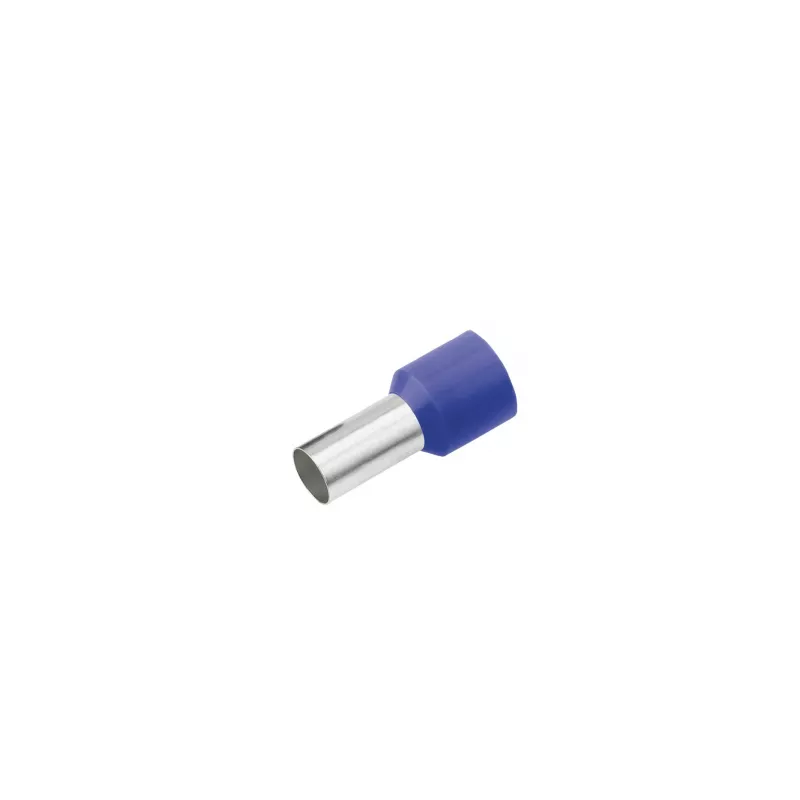

Cimco 187109 káblová koncovka 0,75 mm² čiastočne izolovaná modrá 100 kusov

Terminating stranded copper wires can be frustrating: strands splay, connections loosen, and maintenance becomes a recurring headache. The Cimco 187109 wire end ferrule solves this by providing a reliable, gas-tight crimp connection for 0.75 mm² conductors. Its partially insulated design with a blue polypropylene collar ensures a secure fit in terminal blocks while preventing strand breakage.

Who is it for

Electricians, panel builders, and maintenance technicians who demand consistent, professional terminations in industrial control systems, building installations, and machinery wiring.

Main features

• Partially insulated ferrule for 0.75 mm² stranded wire
• Blue insulation collar for easy size identification
• Electrolytic copper tube, tin-plated for corrosion resistance
• Polypropylene insulation withstands temperatures from -40°C to +105°C
• Complies with DIN 46228 Part 4
• Pack of 100 pieces

Specifications

• Product type: Wire end ferrule
• Wire cross-section: 0.75 mm²
• Insulation type: Partially insulated
• Insulation colour: Blue
• Ferrule material: Electrolytic copper, tin-plated
• Insulation material: Polypropylene (PP)
• Metal tube length: 8 mm
• Total length: 14.5 mm
• Inner diameter (metal tube): 1.3 mm
• Outer diameter (insulation): 3.0 mm
• Rated voltage: 300 V
• Operating temperature: -40°C to +105°C
• Connection method: Crimp
• Standard: DIN 46228 Part 4
• Pack quantity: 100 pieces

Tips

Use a crimping tool with a hexagonal or square profile die for optimal contact. Ensure the stripped wire length matches the metal tube length to avoid exposed strands or insulation inside the crimp.
