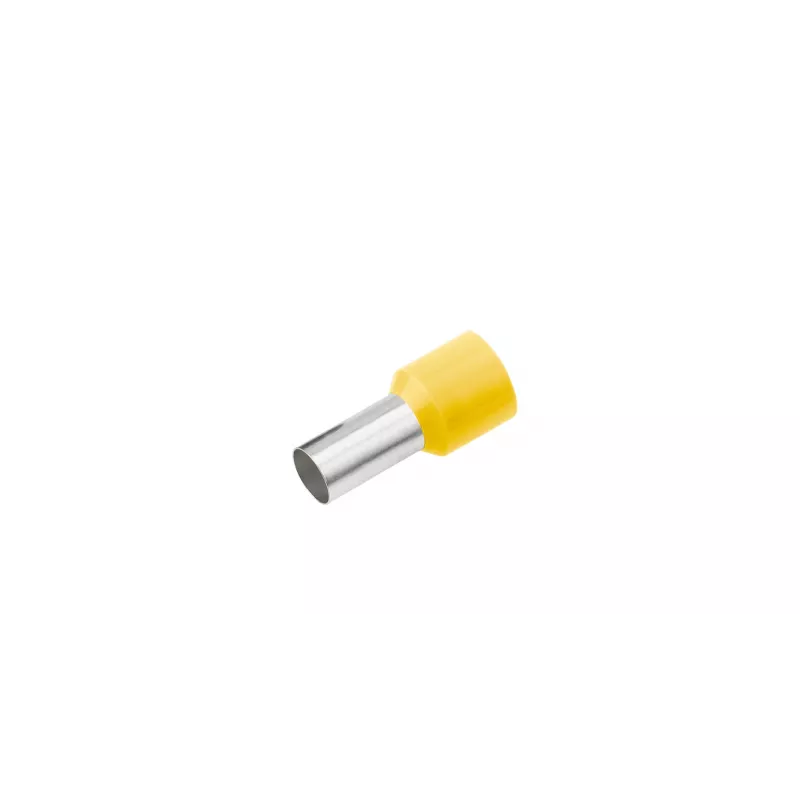

Cimco 187216 čiastočne izolovaná káblová koncovka, 1 mm², žltá, 100 ks

Electricians and panel builders rely on these Cimco 187216 wire ferrules for secure, gas-tight terminations in control cabinets and switchgear. Each ferrule is partially insulated with a yellow polypropylene collar and accepts a 1 mm² conductor.

Key specifications

• Wire cross-section: 1 mm²
• Insulation: partially insulated, yellow polypropylene (PP)
• Quantity: 100 pieces per pack
• Ferrule material: electrolytic copper (E-Cu), tin-plated
• Metal sleeve length: 12 mm
• Total length: 15 mm
• Inner diameter (metal sleeve): 1.5 mm
• Outer diameter (insulation): 3.0 mm
• Operating temperature: -40°C to +105°C
• Flammability rating: UL94 V-2
• Standard: DIN 46228 Part 4
• RoHS compliant

Why choose it

The tin-plated electrolytic copper sleeve provides low contact resistance and excellent corrosion protection. The polypropylene insulation offers reliable strain relief and is colour-coded for quick identification. Crimping with a suitable tool creates a vibration-proof connection that withstands demanding industrial environments.

Ideal use cases

• Professional electrical wiring
• Control panel building
• Switchgear assembly
• Terminal block connections

Good to know

Use with a crimp tool designed for insulated ferrules to achieve a proper crimp. The ferrules are supplied in a pack of 100, ready for high-volume wiring tasks.
