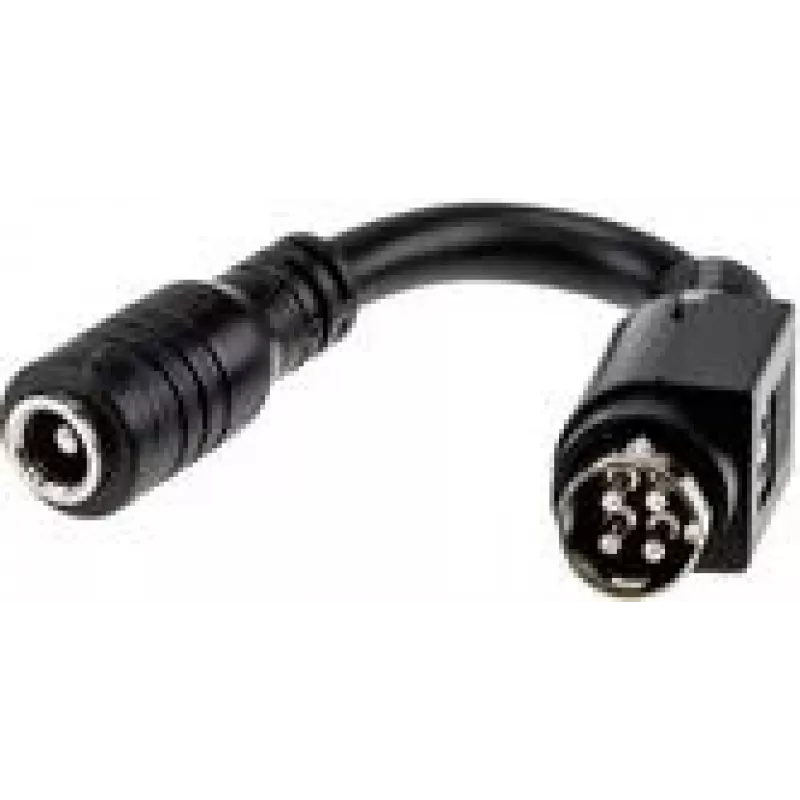

DC adaptér dutý konektor samec Mean Well DC-PLUG-P1J-R7B – náhradný DC konektor adaptér

Mean Well DC-PLUG-P1J-R7B — replacement DC connector adapter provides a direct mechanical and electrical connection for devices and power supplies compatible with Mean Well parts. It is intended to replace worn or damaged barrel plugs or to adapt generic power cords to equipment that accepts Mean Well-style DC barrel connectors. The adapter is compact and designed for serviceability, enabling a straightforward swap without modifying the host device.

Advantages

This DC barrel plug adapter offers a reliable contact interface and simple installation for quick repair or conversion tasks. Its standard barrel geometry ensures consistent fit for compatible sockets, while the construction supports repeatable connections under normal operating conditions. The adapter minimizes downtime by allowing immediate replacement of faulty plugs and avoids the need for complete cable replacement.

Suitable for

• Repairing devices with worn or broken DC barrel plugs
• Adapting generic power cords to Mean Well-compatible equipment
• Field service and maintenance tasks requiring quick connector replacement
• Prototyping or temporary power connections in workshops

Key specifications

• Connector type: DC barrel plug adapter designed for Mean Well-style sockets
• Function: Replacement/adaptation of DC connectors for power supplies and devices
• Form factor: Compact inline barrel plug
• Contact interface: Standard barrel contact geometry for reliable electrical connection
• Material: Durable conductive and insulating materials suitable for low-voltage DC power applications

How to use

Inspect the device socket and the adapter to ensure compatibility before installation. Slide the DC-PLUG-P1J-R7B adapter into the device’s barrel socket until it seats firmly, confirming a secure mechanical fit and stable electrical contact. For replacement tasks, remove the old plug or cut back the damaged cable as needed and terminate or attach the adapter according to the cable preparation method required. Ensure polarity alignment and low-voltage safety practices during all handling and installation steps.

Recommendations

Use this adapter only with compatible Mean Well-style DC barrel sockets and within the rated low-voltage DC range of your equipment. Verify polarity and secure mechanical fit before powering the device. Avoid exposing the adapter to moisture, excessive heat, or mechanical strain to maintain reliable operation.
