DEHN BRS 27.89 AK1X10 2X6.8 V2A nehrdzavejúca oceľ rúrková svorka pre ochranu pred bleskom 540103

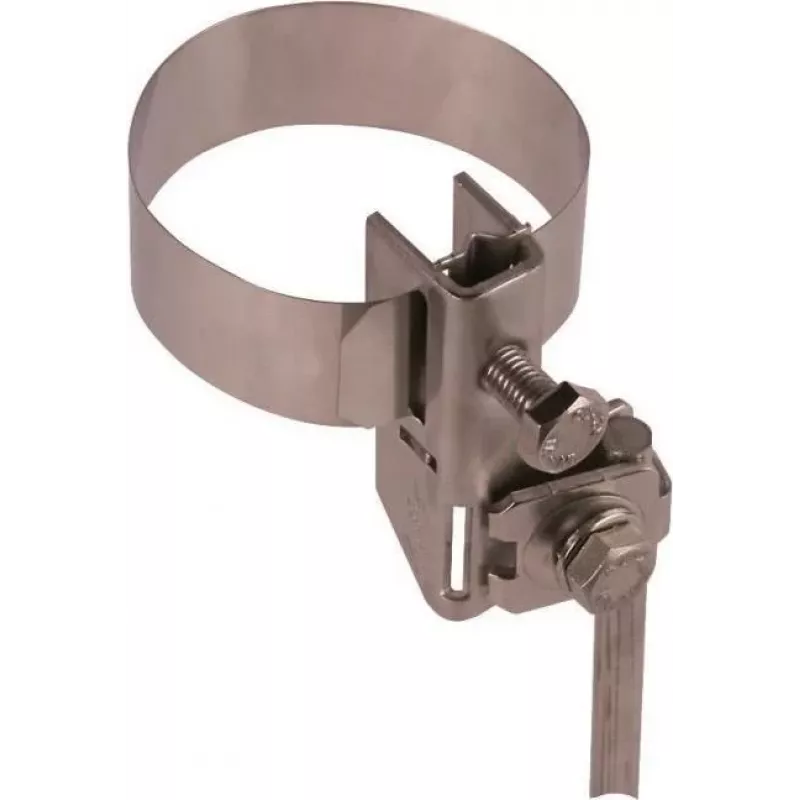

The DEHN BRS 27.89 AK1X10 2X6.8 V2A pipe clamp stands out with its three conductor clamping points, accommodating one 10 mm round wire and two 6.8 mm wires simultaneously. This configuration simplifies the installation of multiple conductors on a single pipe, reducing the number of clamps needed for complex earthing or lightning protection layouts.

Highlights

• Clamping range for pipe diameters from 27 mm to 89 mm
• Three conductor clamping points: 1 x Ø10 mm and 2 x Ø6.8 mm
• Made of V2A stainless steel (AISI 304) for high corrosion resistance
• Suitable for outdoor and industrial environments
• UV resistant and compliant with EN 62561-1

In daily use

This clamp provides a secure screw connection for round conductors on pipes, ensuring reliable electrical bonding in lightning protection and earthing systems. Its stainless steel construction withstands harsh weather and industrial atmospheres, maintaining performance over time.

Full specifications

• Product type: Pipe clamp
• Material: Stainless steel V2A (AISI 304)
• Pipe diameter clamping range: 27 - 89 mm
• Number of conductor clamping points: 3
• Conductor clamping point 1: 1 x Ø 10 mm
• Conductor clamping points 2 and 3: 2 x Ø 6.8 mm
• Mounting method: Pipe mounting
• Connection type: Screw connection
• Corrosion resistance: High
• UV resistance: Yes
• Standard compliance: EN 62561-1
• Colour: Metallic silver

Final note

With its multi-conductor capacity and robust stainless steel build, the DEHN BRS 27.89 AK1X10 2X6.8 V2A is a practical choice for efficient and durable pipe bonding in lightning protection systems.
