DeLOCK DC konektor samica 5,5 x 2,1 mm zabudovaný konektor samica spájkovacia verzia 20 V 10 A

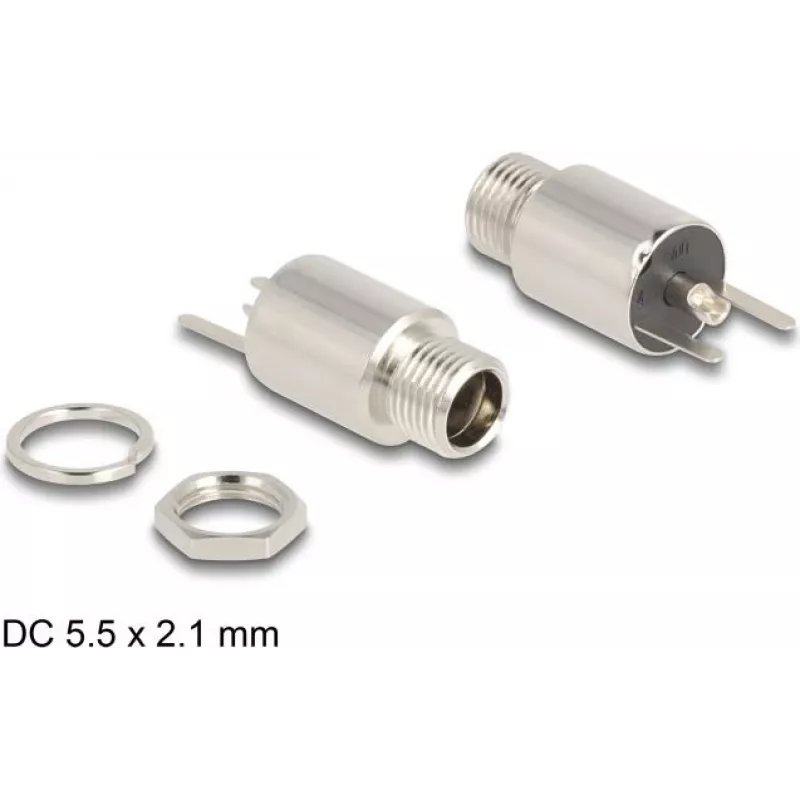

This DC female bulkhead connector by DELOCK is intended for installation in a housing or device to provide a power input. The soldering version accepts plugs with a 5.5 x 2.1 mm outer/inner diameter and is specified for up to 20 V and 10 A. Its compact metal design with a 12 mm length and 2.1 mm inner diameter ensures compatibility with standard DC power cables.

Advantages

The soldering bulkhead offers a fixed, durable connection point for power input and a metal housing in silver colour for mechanical robustness and shielding. Rated for 20 V and 10 A, it is suitable for a range of low-voltage electronic applications and provides straightforward solder terminals for secure wiring.

Suitable for

Key specifications

How to use

Mount the bulkhead connector in a suitable panel cutout and secure it according to the device enclosure design. Solder the supply wires to the connector’s solder terminals, observing correct polarity. After soldering, check solder joints for solidity and insulate exposed connections as required before applying power.

Recommendations

Use with compatible 5.5 x 2.1 mm DC plugs and ensure the connected supply does not exceed 20 V and 10 A. Verify polarity and mechanical fixation to prevent strain on soldered joints; provide additional strain relief if cables are subject to movement.
