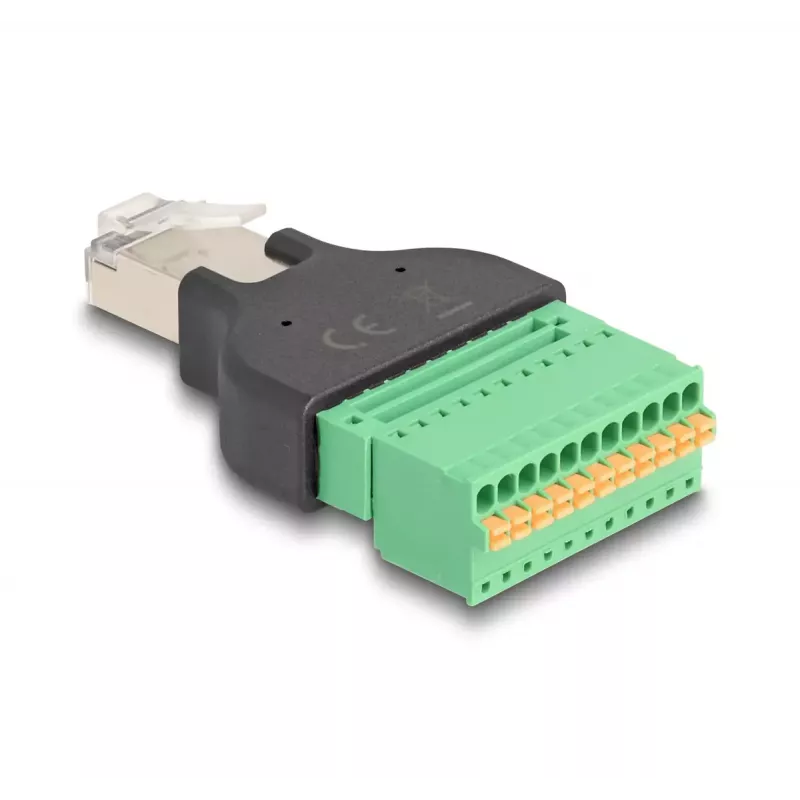

DeLOCK RJ50 samec na svorkovnicový adaptér s tlačidlom, 11-pinová svorkovnica

The DeLOCK RJ50 male to Terminal Block Adapter with push-button 11 pin terminal block allows connection of network devices using an RJ50 plug on one side and an 11-pin screwless terminal block on the other. The adapter supports tool-free wiring: stranded conductors with stripped ends are inserted and secured via individual push buttons, simplifying installation in networking and telecommunications setups.

Advantages

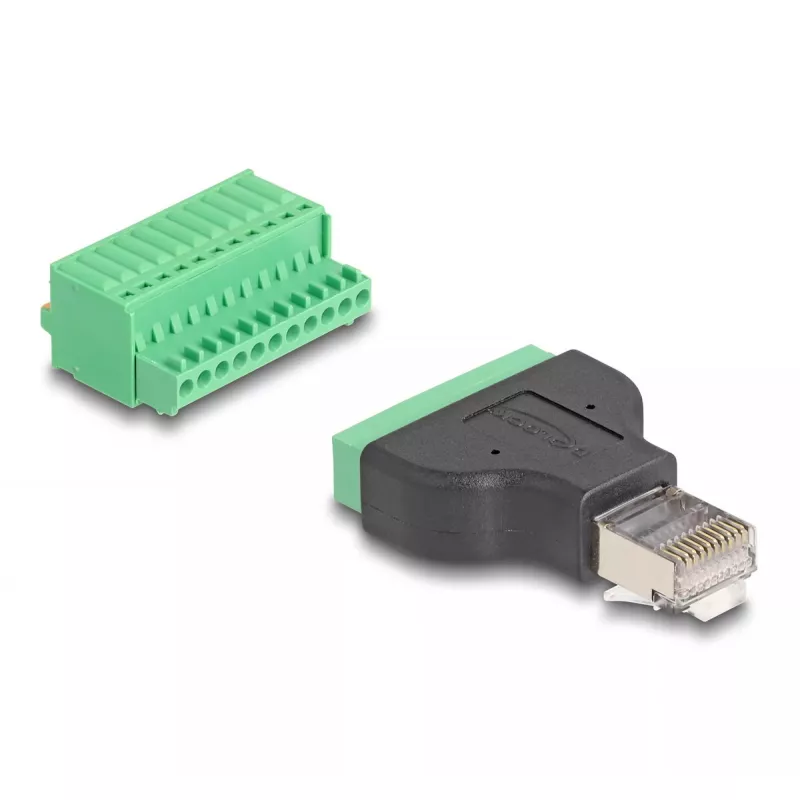

The adapter provides a compact interface between RJ50-equipped equipment and field wiring using an 11 pin terminal block. Tool-free push-button connections reduce installation time and make wiring changes or maintenance straightforward. Its dual-colour housing (black plug, green terminal block) aids visual identification.

Suitable for

• Connecting surveillance, access control or telecommunication devices to field wiring
• Prototyping and lab setups requiring frequent cable changes
• Small-scale industrial or network installations where RJ50 is used

Key specifications

• Brand: DELOCK
• MPN: 66243
• EAN: 4043619662432
• Connector 1: RJ50 (male)
• Connector 2: 11 pin terminal block with push-button
• Product colour: Black (plug) and Green (terminal block)

How to use

Insert the RJ50 male plug into the corresponding RJ50 socket on your device. Strip the ends of the stranded wires to the recommended length, press the push button for the desired terminal, insert the conductor into the terminal port, and release the button to secure the wire. Repeat for each required pin. Ensure correct pin assignment according to your wiring diagram before powering the system.

Recommendations

Use stranded conductors with stripped ends sized appropriately for the terminal. Avoid excessive force when inserting the RJ50 plug. Verify wiring continuity and pin mapping with a multimeter before applying operational voltages or signals.
