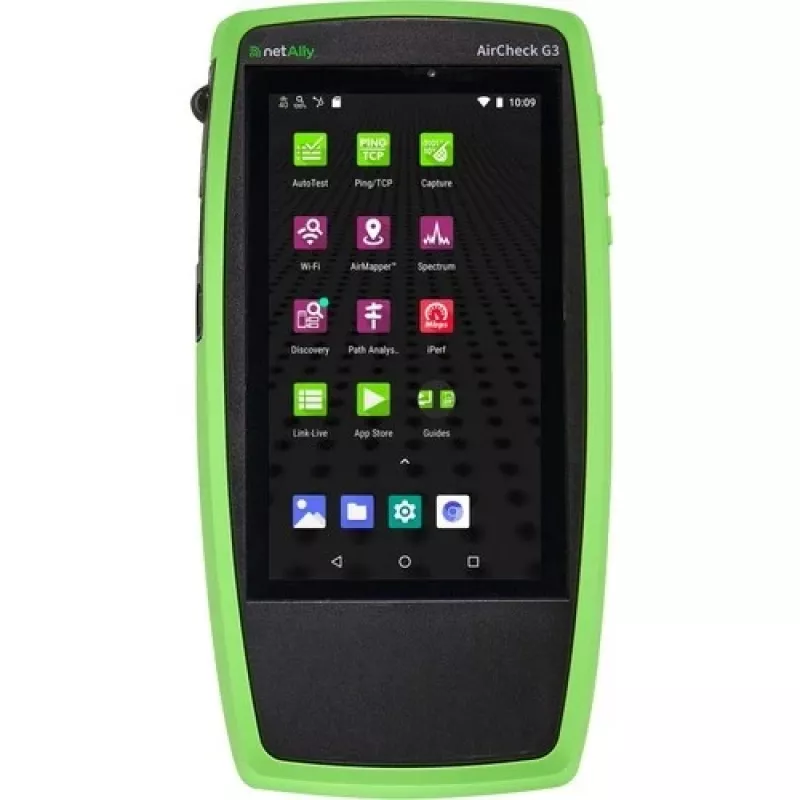

Diagnostický a merací prístroj NetAlly AirCheck G3 PRO Wireless Tester

The NetAlly AirCheck G3 PRO Wireless Tester is a portable tri-band site diagnostics and measurement device for Wi‑Fi 2.4 GHz, 5 GHz and 6 GHz networks. It features a 5" LCD (720 x 1280) for on‑device results and supports wired connections via RJ‑45 and USB‑A/USB‑C. The AirCheck G3 PRO is designed to assist technicians and wireless engineers in validating deployments, troubleshooting connectivity and measuring wireless performance.

Advantages

The AirCheck G3 PRO combines tri‑band scanning and an intuitive user interface to provide clear, actionable data during site surveys and troubleshooting. Its compact, battery‑powered form factor and multiple wired interfaces make it suitable for field use. The device offers measurement and validation capabilities for Wi‑Fi 6/6E networks while remaining accessible to users of varying skill levels.

Suitable for

• On‑site Wi‑Fi site surveys for 2.4/5/6 GHz networks
• Troubleshooting connectivity and performance issues
• Validating Wi‑Fi deployments and post‑installation checks
• Remote “smart hands” diagnostics and technician use

Key specifications

• Product: NetAlly AirCheck G3 PRO Wireless Tester (MPN: AIRCHECK-G3E-PRO)
• Radio bands: 2.4 GHz, 5 GHz, 6 GHz (tri‑band)
• Display: 5" LCD, 720 x 1280 pixels
• Interfaces: RJ‑45, USB‑A, USB‑C
• Power: Battery powered (portable)
• Dimensions: 103 mm (W) x 195 mm (D) x 55 mm (H)

How to use

Power on the AirCheck G3 PRO and use the built‑in 5" display to navigate the intuitive interface. Select the desired band or scanning mode to perform site surveys, spectrum scans, or connectivity tests. For wired tests or data export, connect to the device via RJ‑45, USB‑A, or USB‑C as required. Follow on‑screen prompts to save results and generate validation reports.

Recommendations

For consistent site survey results, perform scans at representative locations and heights, ensure the device battery is charged before work, and use the wired interfaces to archive or transfer test logs after each session.
