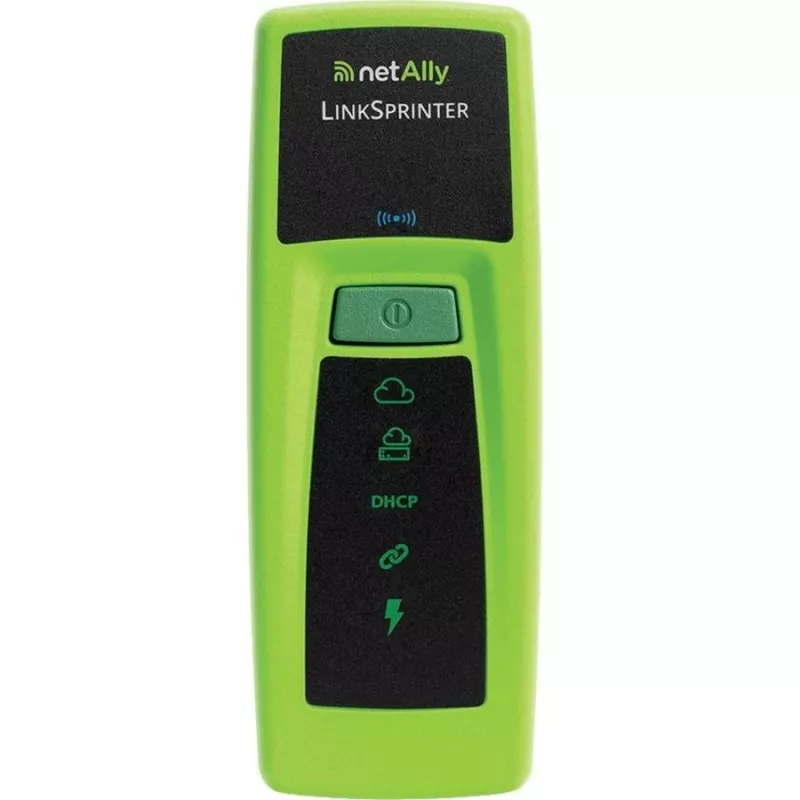

NetAlly LinkSprinter LSPRNTR-300 LinkSprinter MODEL 300 sieťový tester

The NetAlly LinkSprinter MODEL 300 Network Tester is a compact diagnostic tool for quick verification of Ethernet connectivity. Designed to provide immediate information on link status, IP address assignment and DHCP response, this handheld tester helps technicians validate basic network health at wall jacks, patch panels and switch ports. The unit offers a simple workflow and fast results without needing a laptop or complex setup.

Advantages

The LinkSprinter MODEL 300 delivers rapid, single-button tests that report link status, negotiated speed/duplex, PoE presence, IP address and gateway reachability in seconds. Its compact form-factor and straightforward interface reduce the time required for routine site checks and new cable terminations. The device’s direct focus on essential connectivity indicators makes it suitable for field use where quick pass/fail diagnostics are needed.

Suitable for

• Field technicians verifying active Ethernet ports at endpoints and patch panels
• IT staff troubleshooting basic connectivity, DHCP and IP assignment issues
• Installation checks during network rollouts and cabling certifications
• Rapid verification of PoE availability for IP phones, cameras and wireless access points

Key specifications

• Interface: 1 x RJ45 Ethernet port supporting 10/100/1000 Mb/s
• Tests performed: link status, speed/duplex negotiation, PoE detection, IP address assignment, DHCP response, gateway ping
• Display: onboard LED and simple visual indicators for pass/fail and test results
• Power: battery-powered portable unit with low-power consumption suitable for field use
• Form factor: lightweight handheld design for access to wall outlets and patch panels

How to use

Connect the LinkSprinter MODEL 300 to the Ethernet port you want to test using a standard network cable. Press the test button to initiate an automatic sequence that checks physical link, negotiated speed and duplex, presence of Power over Ethernet, and IP/DHCP assignment. The device displays test outcomes via its onboard indicators, and results are available within seconds, allowing immediate follow-up actions such as port reconfiguration or cable replacement.

Recommendations

For consistent results, ensure the tester’s battery is charged before field use and use quality Ethernet patch cords. When diagnosing DHCP issues, test at both the end device jack and at the switch to isolate where IP assignment fails. Use the tester as a first-step verification tool; more advanced analysis (packet capture, latency measurements) requires specialized equipment.
