Digitus predkonfekcionovaný univerzálny optický breakout kábel jednovidový OS2 12 vlákien LC/UPC 100m

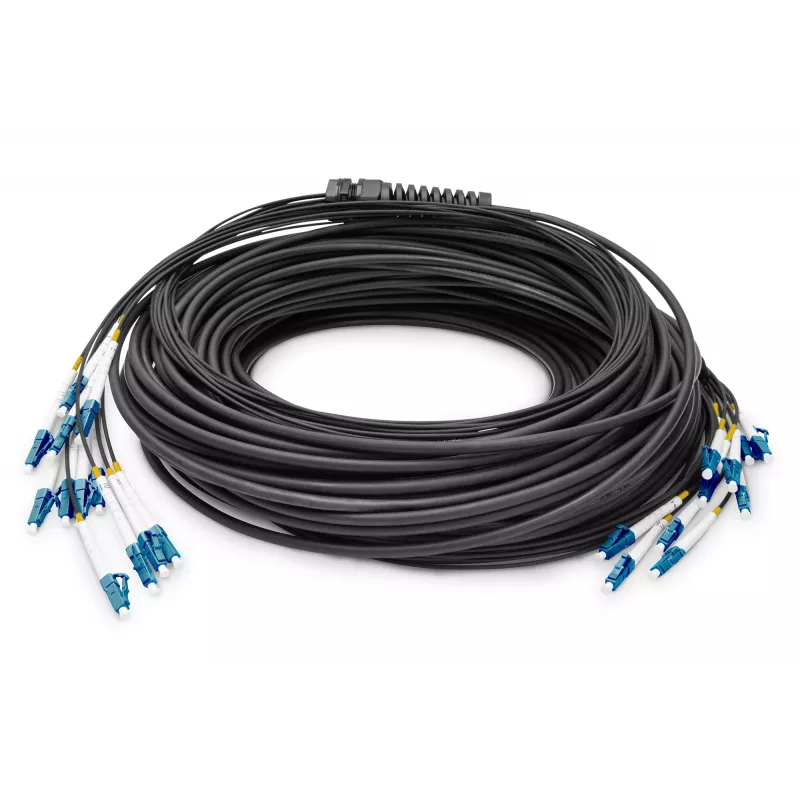

Digitus pre-assembled fiberglass universal breakout cable Single Mode OS2 with 12 fibers and LC/UPC connectors, 100 m, is designed for high-performance data transmission in indoor and outdoor network routes. The cable uses a 9 µm core diameter for single-mode signal propagation and comes with factory-mounted high-quality plugs and a measurement report included with delivery.

Advantages

This pre-assembled breakout cable is ready for immediate use without additional splicing work and provides robust mechanical protection for each individual fiber. The cable features high-quality components and construction, two-sided insertion tools for secure installation, and standard lengths available from stock. Its design allows connection of network cabinets without potential differences and supports installations with pre-assembled plugs for fast Plug & Play deployment.

Suitable for

• High-bandwidth backbone and horizontal network routes
• Connections between network cabinets and patch panels
• Indoor and outdoor fiber installations requiring mechanical protection
• Installations needing pre-assembled, ready-to-use fiber links

Key specifications

• Brand: DIGITUS
• MPN: DK-2A33CU100BK-BBB
• EAN: 4016032484097
• Fiber type: Single Mode OS2
• Number of fibers: 12
• Connector type: LC/UPC
• Core diameter: 9 µm
• Length: 100 m

How to use

Install the pre-assembled breakout cable by routing it along the planned network path and securing it according to standard cabling practices. Use the two-sided insertion tool where applicable for safe insertion into patch panels or adapters. Because connectors are factory-mounted and the cable is pre-assembled, no field splicing is required; simply terminate the LC/UPC connectors into compatible sockets and verify connections using the provided measurement report.

Recommendations

Handle the cable to avoid sharp bends and excessive tensile force; follow local installation standards for fiber bend radius and outdoor protection when used externally. Verify compatibility of LC/UPC connections with your active equipment and patch panels before installation.
