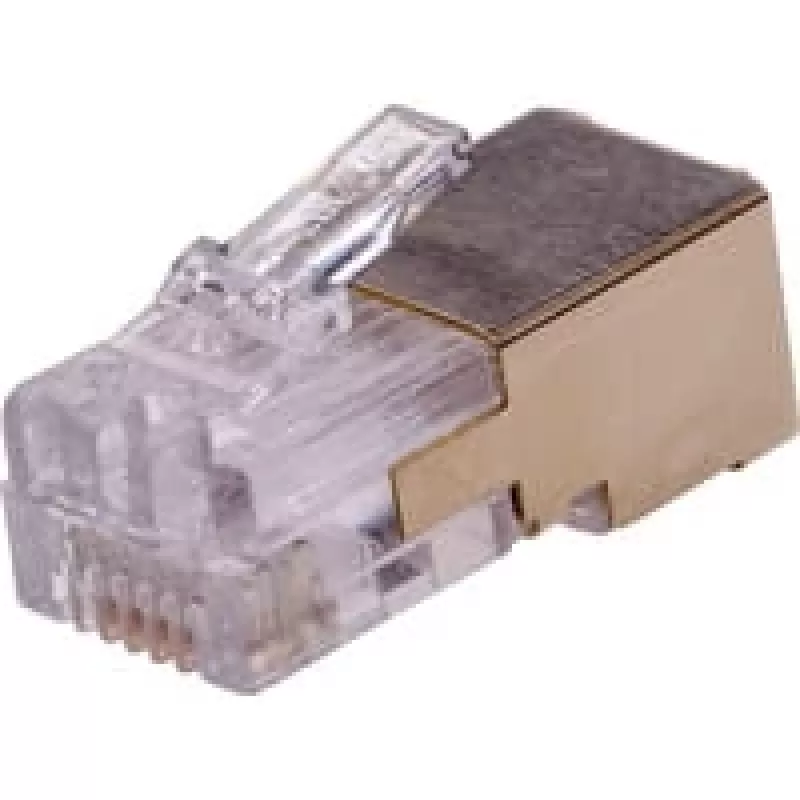

Drôtový konektor RJ-12 Axis 01182-001

Shielded RJ12 connectors designed for shortening an Axis sensor unit cable. These connectors provide a shielded connection required to maintain a reliable data link between the sensor unit and the main unit. The pack contains 10 connectors; a crimping tool is required for installation and is not included.

Advantages

The shielded design reduces electromagnetic interference and helps preserve signal integrity over the cable connection. Compact RJ-12 form factor fits standard six-pin telephone/data jacks. Durable materials and plated contacts ensure consistent conductivity and corrosion resistance for long-term use.

Suitable for

• Shortening or repairing Axis sensor unit cables
• Telecommunications and low-voltage data wiring
• Installations requiring shielded RJ-12 connections to reduce interference

Key specifications

• Connector type: RJ-12 (6-position)
• Shielding: shielded connector for improved EMI protection
• Contact finish: plated contacts for reliable conductivity
• Colour: gold and white
• Pack quantity: 10 pieces

How to use

Strip the cable to the correct length, position conductors in the RJ-12 connector according to the required pinout, and crimp the connector using a suitable crimping tool. Ensure the cable shield is properly terminated to the connector shield to maintain shielding continuity. Verify the connection with appropriate testing equipment after installation.

Recommendations

Use a compatible crimping tool and test the assembled connection for continuity and shielding effectiveness. Store unused connectors in a dry environment and avoid excessive mechanical stress during installation.
