Držiak antény Extralink nástenný držiak L300 300mm

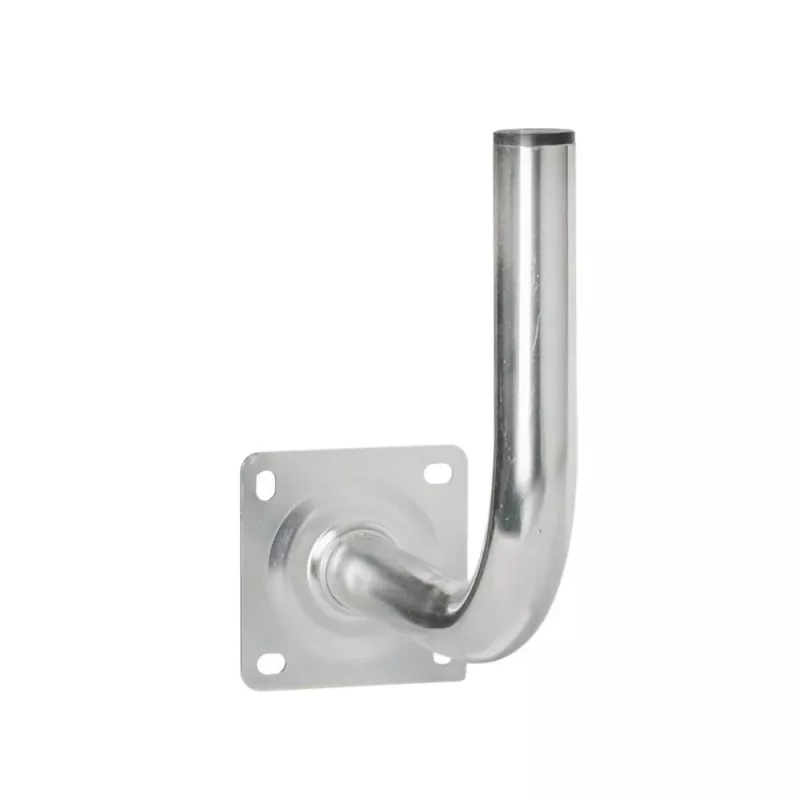

The Extralink Wall mount L300 is a galvanized steel wall-mounting bracket designed to secure satellite or terrestrial antennas to building facades, walls and other flat surfaces. With a 300 mm arm length and a 250 mm high brickwork holder, the bracket offers stable external support while the silver galvanized finish provides corrosion resistance for outdoor installation.

Advantages

The bracket is made of galvanized steel to resist rust and environmental damage. Its 300 mm arm length and 38 × 1.5 mm tube diameter provide firm support for common antenna types. The product is straightforward to install on masonry and flat surfaces and is suitable for long-term outdoor use thanks to its protective coating.

Suitable for (tasks / use cases)

• Mounting satellite antennas on building facades
• Securing terrestrial TV antennas to exterior walls
• Attaching small to medium-sized antennas to flat surfaces

Key specifications

• Manufacturer: Extralink
• Model / MPN: EX.6624
• Material: Galvanized steel
• Arm length: 300 mm
• Brickwork holder height: 250 mm
• Tube diameter: 38 × 1.5 mm
• Finish: Silver (galvanized)

How to use

Position the brickwork holder against the wall or facade at the desired mounting height, mark and drill holes for appropriate anchors or bolts for your wall type. Attach the 250 mm holder securely to the surface, then mount the 300 mm arm and fasten the antenna to the tube using compatible clamps. Ensure all fasteners are tightened and the antenna is aligned as required for reception.

Recommendations

Use appropriate wall anchors or masonry bolts rated for outdoor loads and check all fixings periodically for corrosion or loosening. For optimal performance, mount the antenna in a clear line of sight and ensure the bracket and fittings match the size and weight of your antenna.
