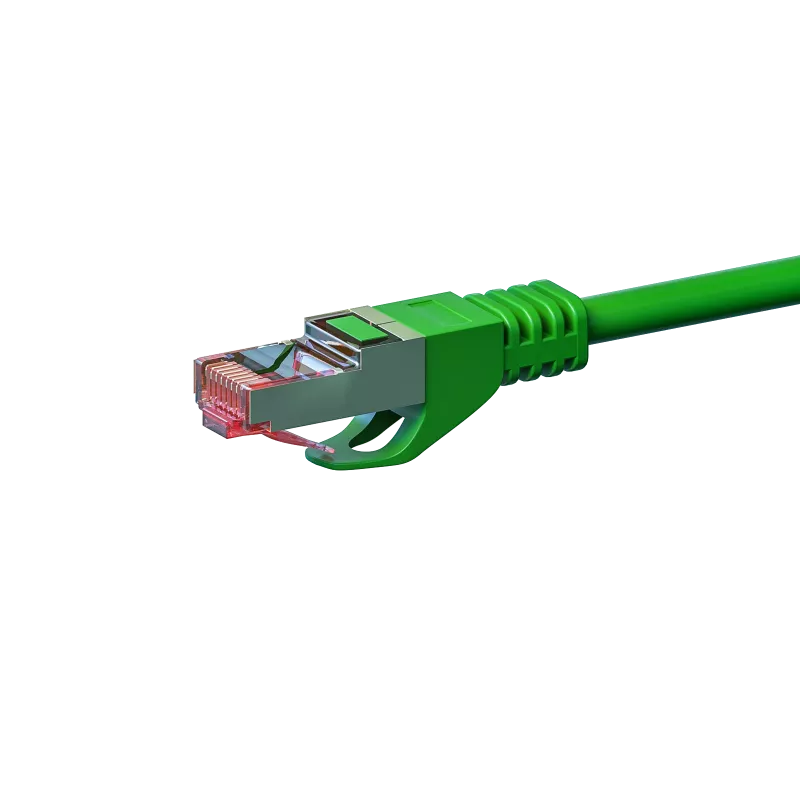

DSIT CAT 6 S/FTP LSOH sieťový kábel, 5 m, zelená

Engineered for 250 MHz bandwidth and Gigabit Ethernet, this DSIT CAT 6 cable delivers reliable, high-speed connectivity in a low-smoke, halogen-free jacket. The S/FTP shielding—individual foil pairs plus an overall braid—minimizes crosstalk and EMI, making it ideal for dense network environments.

Overview

The DSIT CAT 6 S/FTP LSOH cable is a premium patch cable designed for professional and home networks. With a length of 5 meters, it provides flexibility in device placement while maintaining signal integrity. The green LSOH (Low Smoke Zero Halogen) jacket ensures safety in case of fire, emitting minimal smoke and no toxic halogens. Each of the four twisted pairs is individually foil-shielded, and the entire bundle is protected by a braided screen, offering superior protection against electromagnetic interference.

What stands out

• CAT 6 performance: supports up to 1 Gbps data transfer rates and 250 MHz bandwidth.
• S/FTP shielding: foil on each pair plus overall braid for maximum EMI/RFI rejection.
• LSOH jacket: low smoke, zero halogen for enhanced safety in enclosed spaces.
• Stranded copper conductors (AWG 26/7) for flexibility and durability.
• RJ45 male connectors on both ends, wired to TIA/EIA-568B standard.

Technical details

• Cable standard: CAT 6
• Shielding type: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Cable length: 5 m
• Cable colour: Green
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper
• Conductor type: Stranded
• Conductor gauge: AWG 26/7
• Wiring standard: TIA/EIA-568B
• Bandwidth: 250 MHz
• Data transfer rate: 1 Gbps
• Number of pairs: 4
• Impedance: 100 Ohm
• Fire safety: IEC 60332-1
• Compliance: RoHS, CE

Our verdict

A robust and safe choice for high-speed networking, the DSIT CAT 6 S/FTP LSOH cable combines performance with environmental responsibility. Its shielding and low-smoke jacket make it suitable for offices, schools, and data centers where safety and reliability are paramount.
