DSIT CAT6 vonkajší sieťový kábel, U/UTP, AWG 23/1 plný vodič, 305 m, čierny, CCA

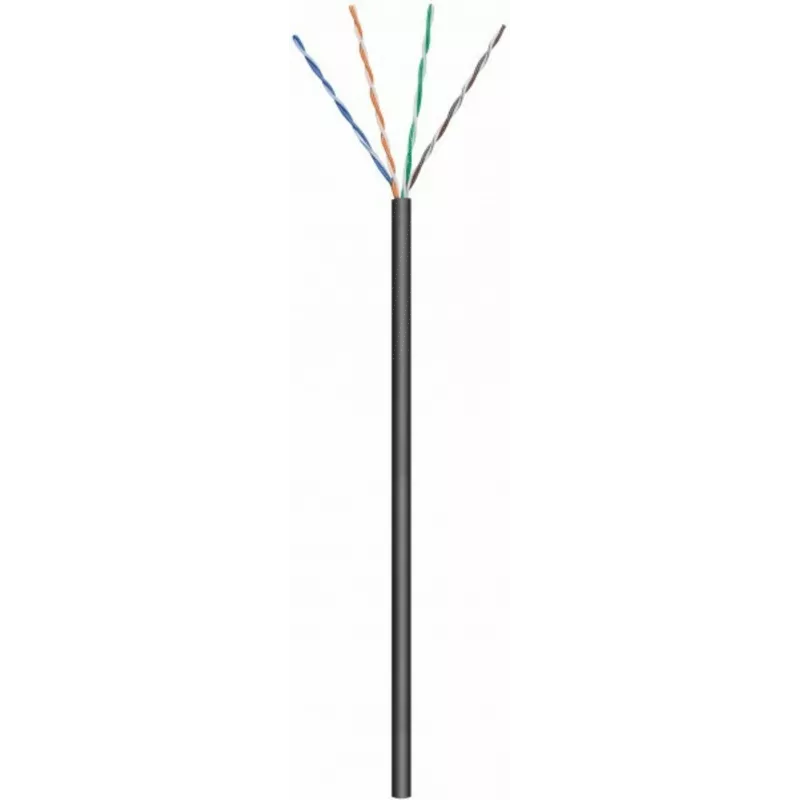

Where standard patch cables fail under sunlight and rain, this DSIT CAT6 outdoor cable holds its own. The rugged black PE jacket is UV-stabilized and weatherproof, so it can be run along building exteriors, under eaves, or between structures without cracking or degrading. Inside, four unshielded twisted pairs of AWG 23 solid copper-clad aluminum (CCA) conductors deliver reliable Gigabit Ethernet performance up to 250 MHz. The 305-meter pull box lets installers cover long backbone links in one continuous run, eliminating splices and weak points.

Highlights

• CAT6 performance up to 250 MHz, supporting 10/100/1000 Mbps Gigabit Ethernet
• U/UTP construction: four unshielded twisted pairs, ideal for low-noise outdoor environments
• AWG 23 solid CCA conductors: easier termination and better high-frequency characteristics than stranded wire
• Black PE jacket: UV-stabilized and weatherproof for direct outdoor exposure
• 305 m (1000 ft) pull box: convenient for large installations with minimal waste

In daily use

Installers appreciate the solid conductors because they seat firmly in IDC punch-down blocks and keystone jacks, reducing the chance of loose connections over time. The CCA material keeps costs down while still meeting CAT6 electrical requirements for runs up to 100 meters per segment. The black jacket blends into outdoor façades and resists cracking in cold weather, making it a reliable choice for IP cameras, access points, and building-to-building links. Because it is unshielded, avoid routing alongside high-voltage lines or sources of strong electromagnetic interference.

Full specifications

• Brand: DSIT
• Model: DC-OUT-UTP6CCA-305S
• MPN: DC-OUT-UTP6CCA-305S
• EAN: 8719956629808
• Cable length: 305 m
• Cable standard: Cat6
• Cable shielding: U/UTP
• Conductor material: CCA
• Conductor type: Solid
• AWG wire gauge: 23
• Number of pairs: 4
• Jacket material: PE
• Product colour: Black
• Data transfer rate: 1 Gbps
• Frequency: 250 MHz
• Impedance: 100 Ω
• Operating temperature: -20°C to 75°C
• UV resistant: Yes
• Weatherproof: Yes
• Packaging: Pull box

Final note

Built for permanent outdoor installations, this cable delivers consistent CAT6 performance in demanding environments.
