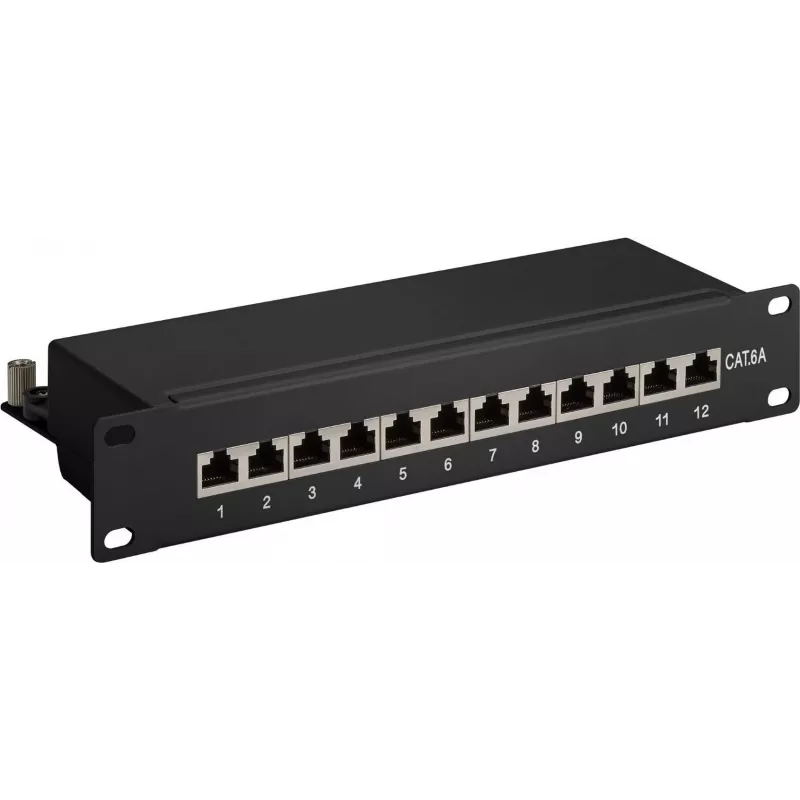

DSIT DS-10Patch6a-12STP 10-palcový 12-portový STP CAT 6a patch panel

Up to 10 Gigabit Ethernet and 500 MHz bandwidth in a compact 10-inch form factor: the DSIT DS-10Patch6a-12STP patch panel delivers high-density, shielded CAT 6a performance for demanding network environments. With 12 shielded RJ45 ports and integrated grounding, it ensures reliable, interference-free connectivity for data centers, server rooms, and enterprise LANs.

Overview

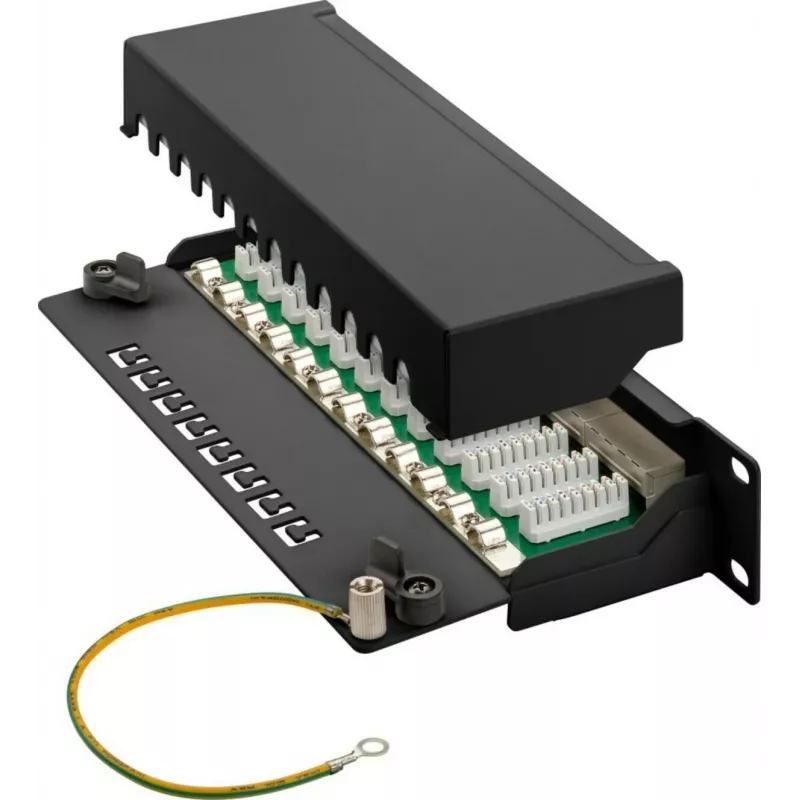

The DSIT DS-10Patch6a-12STP is a 10-inch rack-mountable patch panel designed for high-performance network installations. It features 12 shielded RJ45 female ports on the front and LSA+ (IDC) termination blocks on the rear, supporting both TIA/EIA 568A and 568B wiring standards. The panel is constructed with a robust metal housing in black, providing durability and effective shielding against electromagnetic interference (EMI).

What stands out

• Supports 10 Gigabit Ethernet speeds up to 500 MHz for future-proof performance.
• STP shielding with integrated grounding point minimizes crosstalk and external noise.
• Compact 10-inch rack size saves space in smaller enclosures or wall-mount racks.
• Numbered ports and clear labeling simplify installation and cable management.
• Compatible with solid and stranded installation cables, and standard LSA+ termination tools.

Technical details

• Product type: Network patch panel
• Rack size: 10-inch
• Number of ports: 12
• Performance category: CAT 6a
• Shielding type: STP (Shielded Twisted Pair)
• Front connectors: 12x RJ45 female
• Rear termination: LSA+ / IDC
• Wiring standard: TIA/EIA 568A/B
• Data transfer rate: Up to 10 Gbps
• Frequency bandwidth: Up to 500 MHz
• Housing material: Metal
• Colour: Black
• Mounting type: Rack mount
• Grounding: Integrated grounding point
• Application: LAN, data centers, server rooms

Our verdict

The DSIT DS-10Patch6a-12STP is a reliable and compact solution for high-speed shielded networking. Its 10-inch design is perfect for space-constrained installations, while the CAT 6a performance ensures headroom for 10G applications. The solid metal construction and integrated grounding make it a durable choice for professional environments.
