Eaton 207234 T5B-4-8410/I4 prepínač hviezda-trojuholník v skrini, 63 A, 0-Y-Δ, IP65

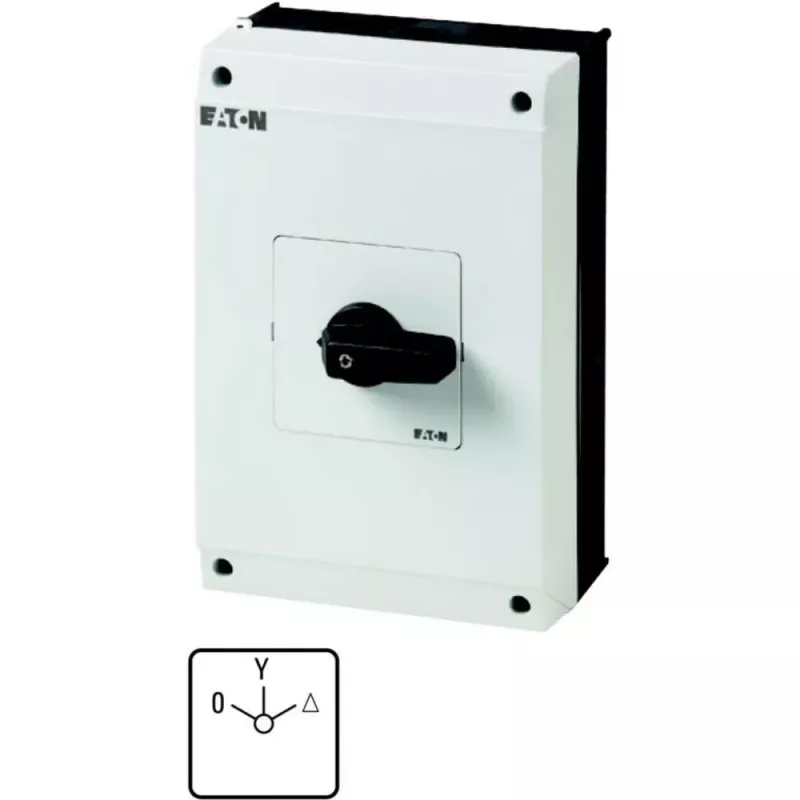

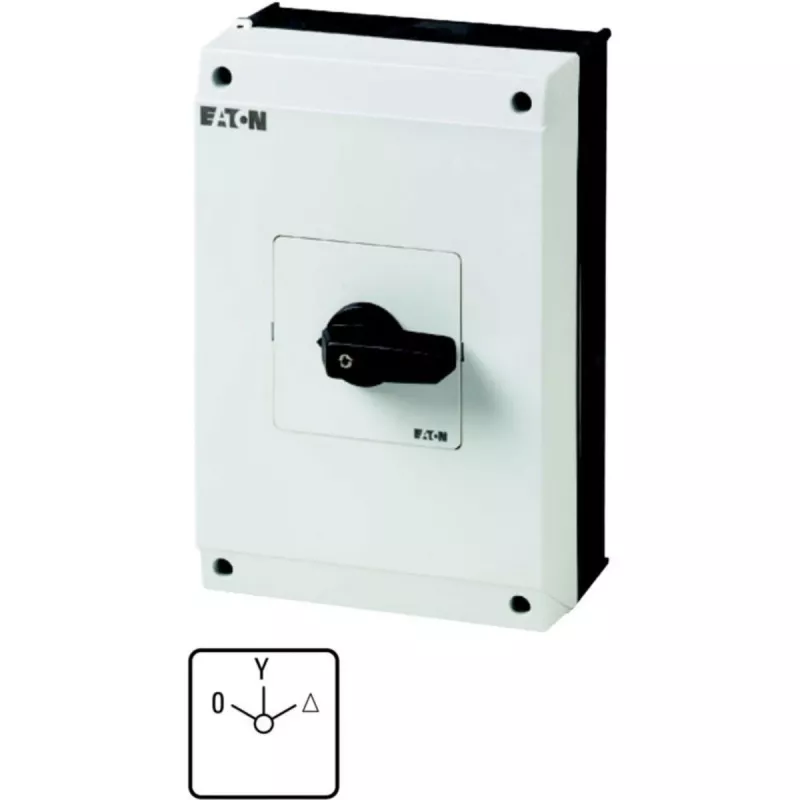

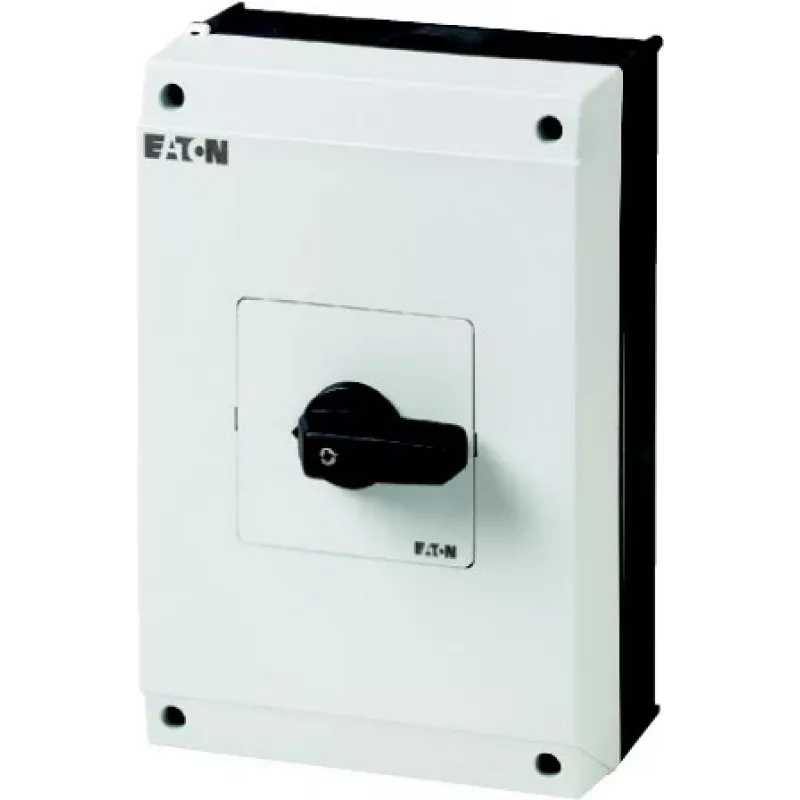

Eaton 207234 T5B-4-8410/I4 is a three-pole star-delta cam switch supplied as a complete device in a plastic enclosure for surface mounting. It has maintained 0-Y-Δ positions with a 60° switching angle, four contact units and eight contacts. Rated uninterrupted current is 63 A. The handle and front plate are black, and the enclosure is rated IP65.

The specified star-delta motor rating at 380/400 V and 50 Hz is 30 kW; the correct load rating depends on voltage and utilisation category. Wiring uses screw terminals. Ambient operation is -25 to +40 °C. Product dimensions, width × height × depth, are 160 × 197 × 240 mm, with a stated net weight of 1.435 kg. This is the enclosed I4 version.
