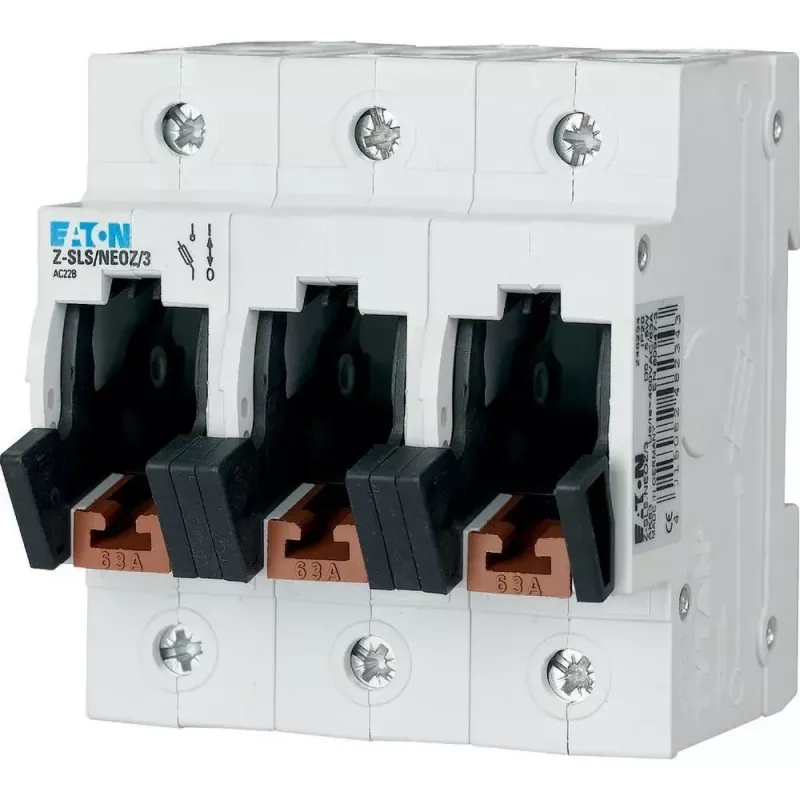

Eaton 248234 Z-SLS 3-pólový 63A D02 poistkový odpojovač

In distribution boards and meter cabinets, safe isolation and reliable overcurrent protection are critical. The Eaton 248234 Z-SLS is a 3-pole fuse switch disconnector rated up to 63 A, designed for DIN rail mounting and compatible with D02 (Neozed) fuse links. It combines load-breaking capability with a visible fuse status indicator, ensuring quick identification of a blown fuse.

Who is it for

Electricians and panel builders who need a compact, high-performance main switch or feeder disconnector in residential and commercial installations. It suits applications where selective protection and easy fuse replacement are required.

Main features

• 3-pole switch disconnector with rated current 63 A
• Accepts D02 (Neozed) fuse links
• Rated operational voltage 400 V AC
• DIN rail mounting (EN 60715)
• Module width 4.5 TE
• Screw terminals with large clamping range
• Visual fuse status indicator
• Degree of protection IP20 (terminals), IP40 (front)

Specifications

• Number of poles: 3
• Rated current: 63 A
• Rated operational voltage: 400 V AC
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Fuse system: D02 (Neozed)
• Mounting: DIN rail (EN 60715)
• Module width: 4.5 TE
• Connection: screw terminals
• Terminal capacity main: 1.5 - 25 mm²
• Terminal capacity auxiliary: 1.5 - 16 mm²
• Degree of protection: IP20 (terminals), IP40 (front)
• Operating temperature: -25 to +50 °C
• Storage temperature: -40 to +80 °C
• Standard: IEC/EN 60947-3
• Short-circuit breaking capacity: 50 kA with appropriate fuse
• Application: main switch in distribution boards, meter cabinets

Tips

Ensure the upstream short-circuit current does not exceed 50 kA when using appropriate D02 fuse links. The visual indicator simplifies maintenance by showing which phase has operated.
